FS 5250 (5901756) - Ferris Voyager Series Stand-On Spreader Parking Brake Group Parts Diagram

Voyager Series Stand-On Spreader

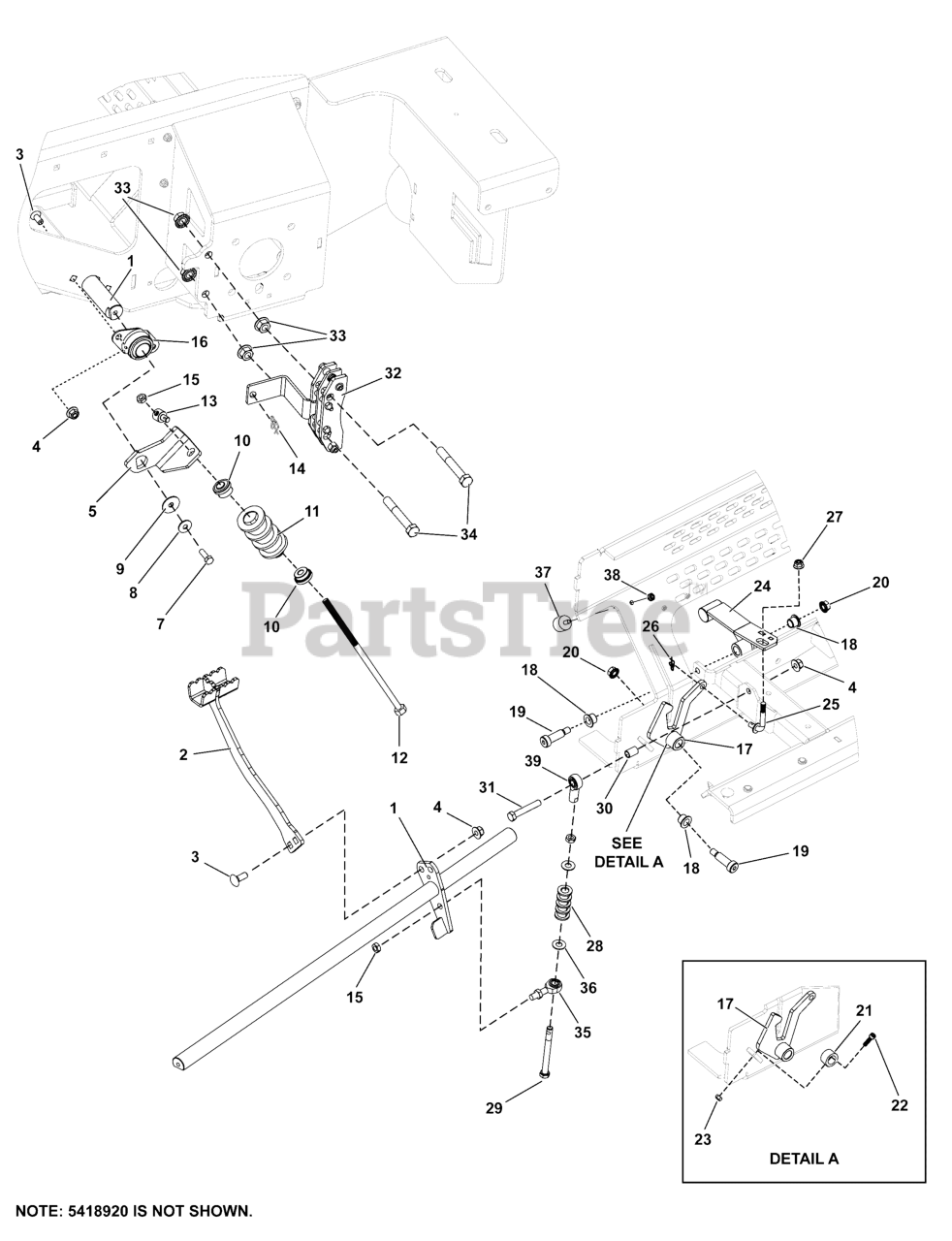

Parking Brake Group Parts Diagram

  • Title

1

Ferris 5418895

WELD, PARK BRAKE

$314.99

$

Usually ships in 2-12 days

0

2

Ferris 5418896

WELD, PARK BRAKE PEDAL

$109.99

$

Usually ships in 2-12 days

0

3

Ferris 5107639

BLT-RDHDSQNK, .375"-16 X 1.000" SS188

$2.49

$

Usually ships in 2-12 days

0

4

Ferris 5107638

NUT-HEX-NYLK, FLG .375"-16 SS188

$3.99

$

Usually ships in 2-12 days

0

5

Ferris 5418922

ARM, BRAKE ACTUATE LH

$30.99

$

Usually ships in 2-12 days

0

6

Ferris 5418920

ARM, BRAKE ACTUATE RH

$30.99

$

Usually ships in 2-12 days

0

7

Ferris 5106576

SCR-CAP, HEX .3125"-18 X 1.000" SS188

$2.99

$

Usually ships in 2-12 days

0

8

Ferris 5107642

WSHR-SS, BLV .322"X.938"X.072" 17-7PH

$8.99

$

Usually ships in 2-12 days

0

9

Ferris 5107652

WSHR-SS, FLT .348"X1.250"X.065" FEN

$2.49

$

Usually ships in 2-12 days

0

10

Ferris 5418898

BSHG, STEP .343"X1.25"-1.00",.562"SS

$28.99

$

Usually ships in 2-12 days

0

11

Ferris 5107631

SPRG, ELA 1.00" X 3.42", 103#/IN

$22.99

$

Usually ships in 2-12 days

0

12

Ferris 5107615

ROD, .375"-24 X 3.50" - 9.53" OAL SS

$56.99

$

Usually ships in 2-12 days

0

13

Ferris 5107614

SWIVEL, Ø.3125-24, Ø.370 POST SS

$44.99

$

Usually ships in 2-12 days

0

14

Ferris 5107640

RING, RUE .375" SS

$2.99

$

Usually ships in 2-12 days

0

15

Ferris 5107648

NUT-HEX, JAM .375"-24 SS188

$2.49

$

Usually ships in 2-12 days

0

16

Ferris 5107633

BRG, BRZ 1.00"ID X 3.125" CTR SIDE FLG

$30.99

$

Usually ships in 2-12 days

0

17

Ferris 5418939

WELD, BRAKE LATCH

$87.99

$

Usually ships in 2-12 days

0

18

Ferris 5108816

BSHG-FL, .500" X .625" X .500", .875"x .062" IR

$8.99

$

Usually ships in 2-12 days

0

19

Ferris 5107641

BLT-SLDR,SH.50"X1.25",.375"-16X.63"SS188

$12.99

$

Usually ships in 2-12 days

0

20

Ferris 5107643

NUT-HEX-FGLK, .375"-16 SS188

$2.49

$

Usually ships in 2-12 days

0

21

Ferris 5107634

SPRG, BMP .97" X 1.12" 50#PDF

$14.99

$

Usually ships in 2-12 days

0

22

Ferris 5107644

SCR-CAP, SH #10-24 X .750" SS188

$2.49

$

Usually ships in 2-12 days

0

23

Ferris 5105963

NUT-HEX-NYLK, #10-24 SS188
(Superseded to 5105963FS)

$2.49

$

Usually ships in 2-12 days

0

24

Ferris 5419603

WELD, BRAKE RELEASE

$130.99

$

Usually ships in 2-12 days

0

25

Ferris 5108204

LINK, BRAKE RELEASE

$72.99

$

Usually ships in 2-12 days

0

26

Ferris 5107667

RING, RUE .3125" SS

$2.49

$

Usually ships in 2-12 days

0

27

Ferris 5107653

NUT-HEX-NYLK, FLG .3125"-18 SS188

$3.49

$

Usually ships in 2-12 days

0

28

Ferris 5108206

SPRG, ELA .500" X 2.26", 33#/IN

$27.99

$

Usually ships in 2-12 days

0

29

Ferris 8042062

SCREWCAP 3/8-24 X 4" G8 W/ PATCH

$8.99

$

Usually ships in 2-12 days

0

30

Ferris 5108345

SPCR-SS, 303 .391" X .500" X .750"

$40.99

$

Usually ships in 2-12 days

0

31

Ferris 5106581

SCR-CAP, HEX .375"-16 X 2.250" SS188

$15.99

$

Usually ships in 2-12 days

0

32

Ferris 5100774

COMPACT CALIPER, AUSCO (86978)
(Superseded to 5100774YP)

$186.99

$

Usually ships in 2-12 days

0

33

Ferris 5107685

NUT-HEX-FGLK, .500"-13 SS188

$2.49

$

Usually ships in 2-12 days

0

34

Ferris 5107686

SCR-CAP, HEX .500"-13 X 3.500" SS188

$4.49

$

Usually ships in 2-12 days

0

35

Ferris 5021124

BALL JOINT, 3/8-24 Male
(Superseded to 5021124SM)

$37.99

$

Usually ships in 2-12 days

0

36

Ferris 5106168

WSHR-STL, FLT .406" X .875" X .050" IS SS188

$3.49

$

Usually ships in 2-12 days

0

37

Ferris 5022673

BUMPER, RUBBER, 1/4-20
(Superseded to 5022673SM)

$18.99

$

Usually ships in 2-12 days

0

38

Ferris 5109128

NUT-HEX-FGLK, .250"-20 SS188

$2.49

$

Usually ships in 2-12 days

0

39

Ferris 5021683

BALL JOINT, 3/8-24 FEMALE
(Superseded to 5021683FS)

$32.99

$

Usually ships in 2-12 days

0
