FS 5250 (5901756) - Ferris Voyager Series Stand-On Spreader Pivoting Front Axle Group Parts Diagram

Voyager Series Stand-On Spreader

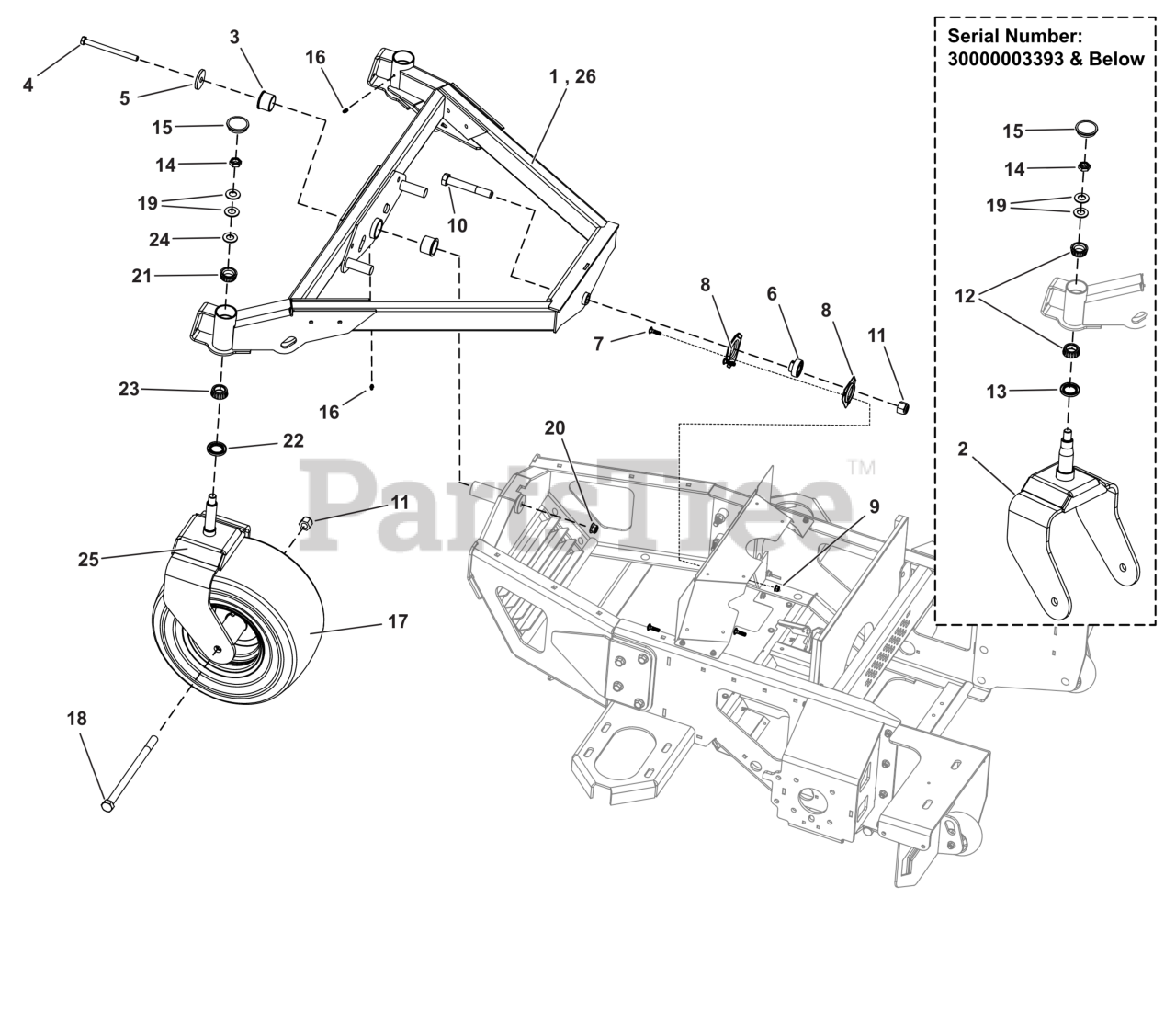

Pivoting Front Axle Group Parts Diagram

  • Title

1

Ferris 5418950

WELD, FRONT AXLE

Note: (S/N: 30000003393 and below)

$3023.99

$

Usually ships in 2-12 days

0

2

Ferris 5418974

WELD, CASTER FORK

Note: (S/N: 30000003393 and below)

$758.99

$

Usually ships in 2-12 days

0

3

Ferris 5108818

BUSHING, 1.500" I.D. X 1.50" LONG FLANGED

$14.99

$

Usually ships in 2-12 days

0

4

Ferris 5107684

SCR-CAP, HEX .500"-13 X 6.000" SS188

$9.49

$

Usually ships in 2-12 days

0

5

Ferris 5418977

WSHR-SS, FLT .516"X 2.13"X.250"

$21.99

$

Usually ships in 2-12 days

0

6

Ferris 5108182

BEARING, SB204-12

$14.99

$

Usually ships in 2-12 days

0

7

Ferris 5108084

BLT-RDHDSQNK, .3125"-18 X 1.250" SS188

$2.49

$

Usually ships in 2-12 days

0

8

Ferris 5108181

47MM-3T-SS 3-BOLT SS FLANGETTE

$21.99

$

Usually ships in 2-12 days

0

9

Ferris 5107653

NUT-HEX-NYLK, FLG .3125"-18 SS188

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5107679

SCR-CAP, HEX .750"-10 X 5.000" SS188

$13.99

$

Usually ships in 2-12 days

0

11

Ferris 5107677

NUT-HEX-NYLK, .750"-10 SS188

$4.99

$

Usually ships in 2-12 days

0

12

Ferris 5106044

BRG, TPR 1.063" ID X .58" THK

Note: (S/N: 30000003393 and below)

$17.99

$

Usually ships in 2-12 days

0

13

Ferris 5109262

SEAL, 1.375" SHAFT X 1.987" OD X 0.31 THK

Note: (S/N: 30000003393 and below)

$32.99

$

Usually ships in 2-12 days

0

14

Ferris 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

In Stock, only 1 left!

0

15

Ferris 5109845

CAP, GREASE, LOW PROFILE
(Superseded to 5109845FS)

$7.99

$

In Stock, only 2 left!

0

16

Ferris 5106119

ZERK, GREASE .250"-28 SS

$5.49

$

Usually ships in 2-12 days

0

17

Ferris 5108169

WHEEL/TIRE 16 x 8.50 - 8 SMOOTH

$234.99

$

Usually ships in 2-12 days

0

18

Ferris 5107680

SCR-CAP, HEX .750"-10 X 12.00" SS188

$34.99

$

Usually ships in 2-12 days

0

19

Ferris 5025449

WASHER, BELLEVILLE - 1.500 X .755
(Superseded to 5025449SM)

$4.99

$

Usually ships in 2-12 days

0

20

Ferris 5107637

NUT-HEX-NYLK, FLG .500"-13 SS188

$10.99

$

Usually ships in 2-12 days

0

21

Ferris 5100839

BEARING, TAPER ROLLER, 1.1417
(Superseded to 5100839FS)

Note: (S/N: 30000003394 and above)

$22.99

$

Usually ships in 2-12 days

0

22

Ferris 5109581

SEAL, 1.750 SHAFT X 2.254 OD X .359 THK

Note: (S/N: 30000003394 and above)

$46.99

$

Usually ships in 2-12 days

0

23

Ferris 5109949

BEARING, TAPERED ROLLER 35MM BORE

Note: (S/N: 30000003394 and above)

$129.99

$

Usually ships in 2-12 days

0

23-1

Ferris 5109579

BEARING & RACE, 1.3780 ID X 2.1654 OD

Note: (S/N: 30000003394 and above)(Refer to Note: *)

$

$

Currently unavailable

24

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

Note: (S/N: 30000003394 and above)

$3.99

$

Usually ships in 2-12 days

0

25

Ferris 5421441

WELD, CASTER FORK

Note: (S/N: 30000003394 and above)

$694.99

$

Usually ships in 2-12 days

0

26

Ferris 84008678

FRONT AXLE ASSEMBLY

Note: (S/N: 30000003394 and above)

$

$

Currently unavailable
