FT7251 (7800944-00) - Snapper Front-Tine Tiller, 7.25hp Engine & Chassis Group Parts Diagram

Front-Tine Tiller, 7.25hp

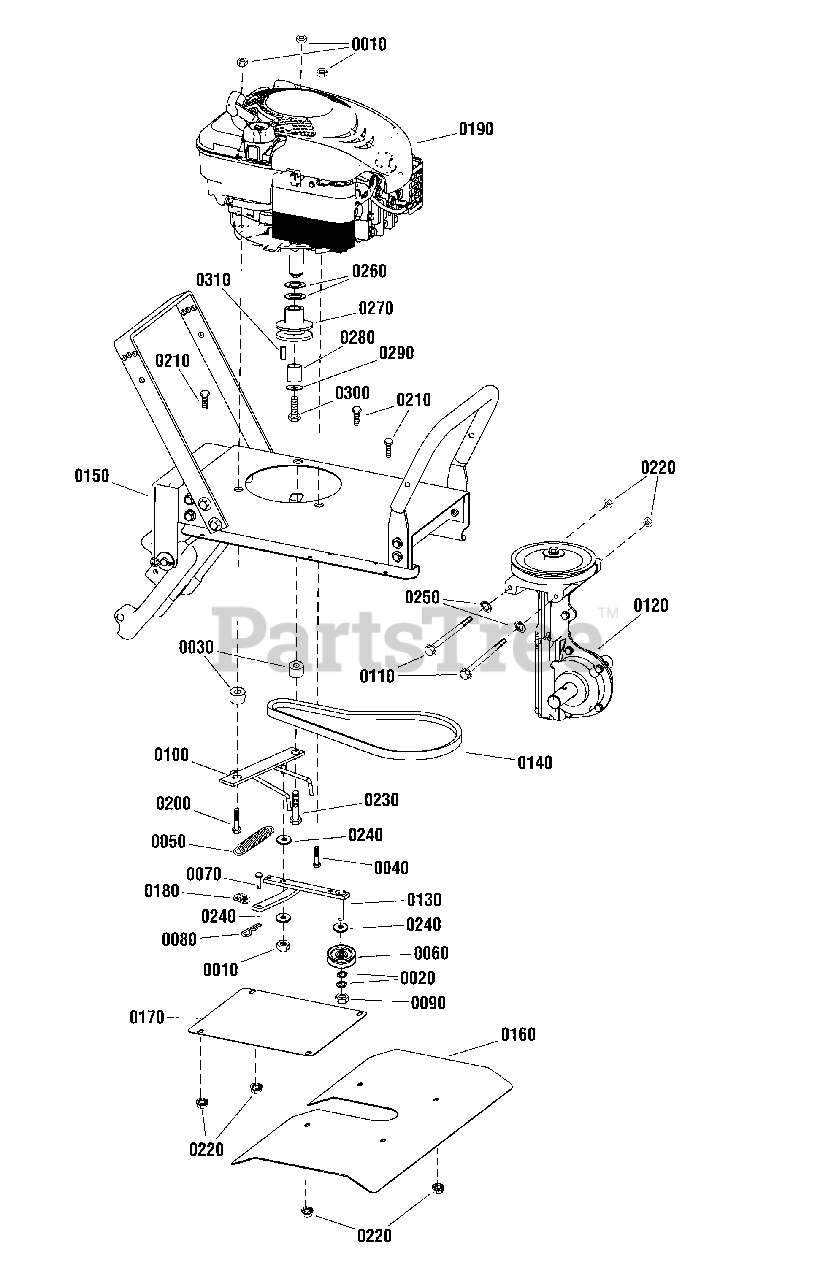

Engine & Chassis Group Parts Diagram

  • Title

0010

Snapper 5025057SM

NUT, Nylock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 5

0

0020

Snapper 018X31MA

WASHER, Spring Lock, 3/8

$4.49

$

Usually ships in 2-12 days

0

0030

Snapper 1738775YP

SPACER, Forward Arm, .93 X 22 X 14.25 MM

$24.99

$

Usually ships in 2-12 days

0

0040

Snapper 1921977

BOLT, Hex Head, 3/8-16 X 1 1/4, GR5
(Superseded to 1921977SM)

$4.99

$

In Stock, Qty 7

0

0050

Snapper 1716802

SPRING, Forward Arm
(Superseded to 1716802SM)

$11.99

$

Usually ships in 2-12 days

0

0060

Snapper 1716805

PULLEY, Idler Reverse
(Superseded to 1716805SM)

$42.99

$

Usually ships in 2-12 days

0

0070

Snapper 1716702

PIN, Clevis, 1/4 X 5/8
(Superseded to 1716702SM)

$3.99

$

Usually ships in 2-12 days

0

0080

Snapper 1716703

PIN, Cotter, 5/64 X 1/2
(Superseded to 1716703SM)

$3.99

$

Usually ships in 2-12 days

0

0090

Snapper 1916950

NUT, 3/8
(Superseded to 703577)

$4.49

$

In Stock, Qty 5

0

0100

Snapper 1738718YP

GUIDE, Belt

$80.99

$

Usually ships in 2-12 days

0

0110

Snapper 1960283

BOLT, 1/4-20 X 7 1/2, GR5
(Superseded to 1960283SM)

$7.49

$

Usually ships in 2-12 days

0

0120

Snapper 1738696YP

TRANSMISSION ASSEMBLY

$877.99

$

Usually ships in 2-12 days

0

0130

Snapper 1738710YP

ARM, Forward

$40.99

$

Usually ships in 2-12 days

0

0140

Snapper 706345

BELT V, 4L

$56.99

$

Usually ships in 2-12 days

0

0150

CHASSIS ASSEMBLY

$

$

Not available

0160

SHIELD, Tine, RED

$

$

Not available

0170

SHIELD, Front, RED

$

$

Not available

0180

Snapper 706200

YOKE, Clevis, Dual Slot

$5.49

$

Usually ships in 2-12 days

0

0190

Snapper 128MO2-0010-F1

* ENGINE, 7.5 GrossTP, B&S 725E Series, Mod. 128MO2-0010-F1

$

$

Currently unavailable

0200

Snapper 1921978SM

CAPSCREW, Hex Head, 5/16-18 X 2 1/4, GR5
(Superseded to 703867)

$4.99

$

In Stock, Qty 6

0

0210

BOLT, Hex Head, 3/8-16 X 1 1/4, GR5

$

$

Not available

0220

Snapper 15X116MA

NUT, Hex Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0230

Snapper 1926106SM

BOLT, Hex Head, 5/16-18 X 3 1/4

$3.99

$

Usually ships in 2-12 days

0

0240

Snapper 1918265SM

WASHER, 5/16 X 7/8 X 5/64
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

0250

Snapper 120380MA

WASHER, Lock Spring, 1/4

$3.49

$

Usually ships in 2-12 days

0

0260

SPACER .055 THICK X .755 ID X 1.244 OD

$

$

Not available

0270

Snapper 1751869

PULLEY, Single Groove
(Superseded to 1751869YP)

$47.99

$

Usually ships in 2-12 days

0

0280

Snapper 1722164

SPACER, Drive Pulley, .9
(Superseded to 1722164SM)

$11.99

$

Usually ships in 2-12 days

0

0290

WASHER, Flat, 1

$

$

Not available

0300

BOLT, Hex Head, 3/8-16 X 1 1/4, GR5

$

$

Not available

0310

Snapper 1716771YP

KEY, Square, 3/16 X 5/8

$5.99

$

Usually ships in 2-12 days

0
