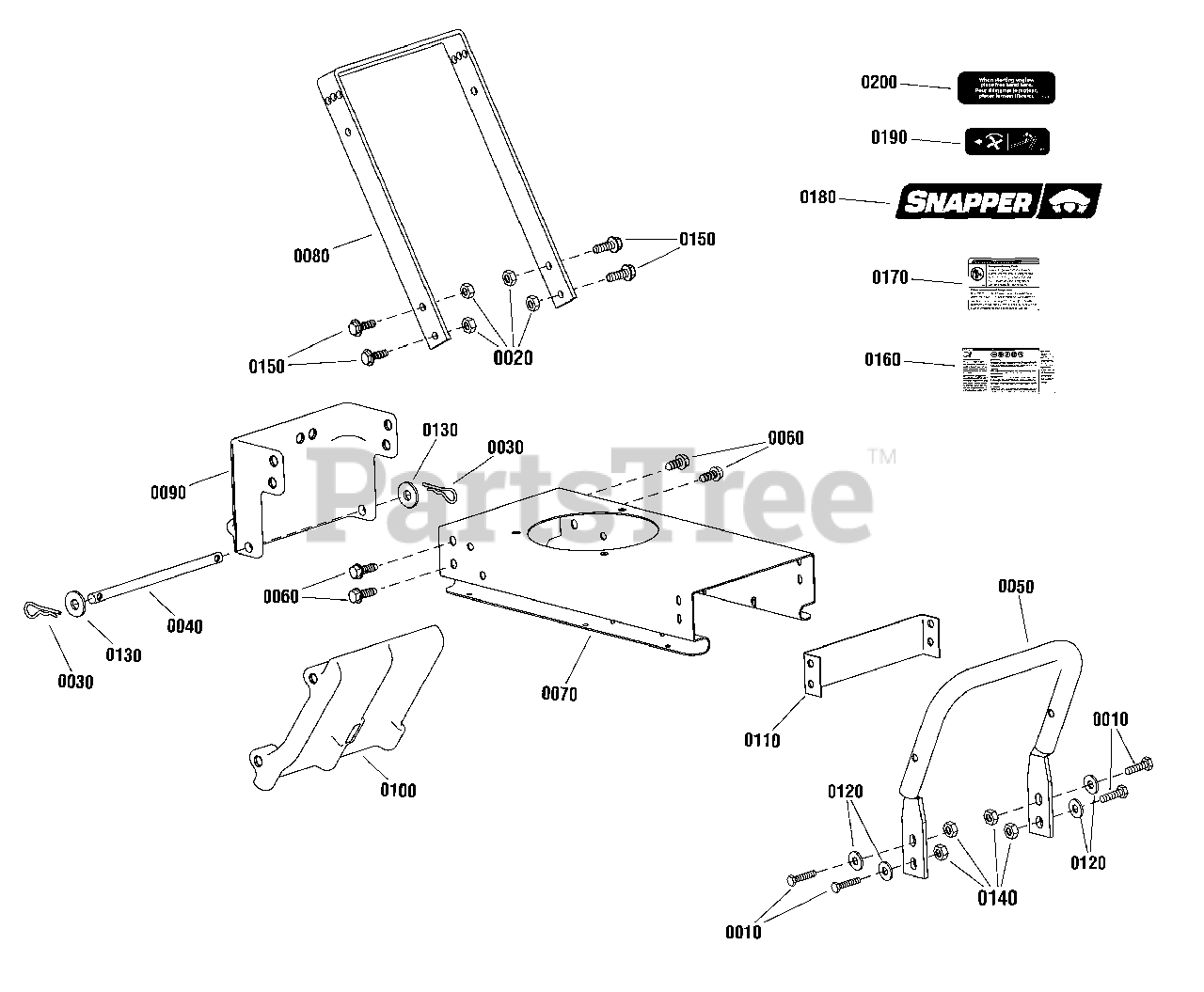

FT7251 (7800944-00) - Snapper Front-Tine Tiller, 7.25hp Frame Group Parts Diagram

Front-Tine Tiller, 7.25hp

Frame Group Parts Diagram

  • Title

0010

Snapper 1716798

BOLT, Heax Head, 3/8-16 X 1 1/4, GR5
(Superseded to 1935450SM)

$4.49

$

Usually ships in 2-12 days

0

0020

Snapper 5025096

NUT, Nylock, 3/8-16, GR5 ZN
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 8

0

0030

PIN,Cotter 2.5MM DIA. X 51.25 MM

Note: (Not serviced)

$

$

Not available

0040

Snapper 1738704YP

SHAFT TAIL PIVOT

$32.99

$

Usually ships in 2-12 days

0

0050

Snapper 706340

LOWER HANDLEBAR

$119.99

$

Usually ships in 2-12 days

0

0060

BOLT, Serrated Flange, 3/8-16 X 1/2, GR5

Note: (Not serviced)

$

$

Not available

0070

FRAME, Engine Mount, Red

Note: (Not serviced)

$

$

Not available

0080

MOUNT, Handlebar 3 position

Note: (Not serviced)

$

$

Not available

0090

Snapper 706338

TAIL MOUNT, Upper Red

$70.99

$

Usually ships in 2-12 days

0

0100

Snapper 706339

TAIL MOUNT, Lower Red

$86.99

$

Usually ships in 2-12 days

0

0110

COVER, Front, Red

Note: (Not serviced)

$

$

Not available

0120

Snapper 7090053

WASHER, Flat 1/4
(Superseded to 703462)

$4.49

$

In Stock, Qty 12

0

0130

Snapper 1718896

WASHER, 12MM
(Superseded to 1718896SM)

$3.49

$

Usually ships in 2-12 days

0

0140

Snapper 2820435SM

NUT, Hex Nylock 1/4-20

$

$

Currently unavailable

0150

Snapper 7091588SM

BOLT, Serrated, Heax Head, 3/8-16 X 3/4
(Superseded to 703955)

$4.49

$

In Stock, Qty 20+

0
