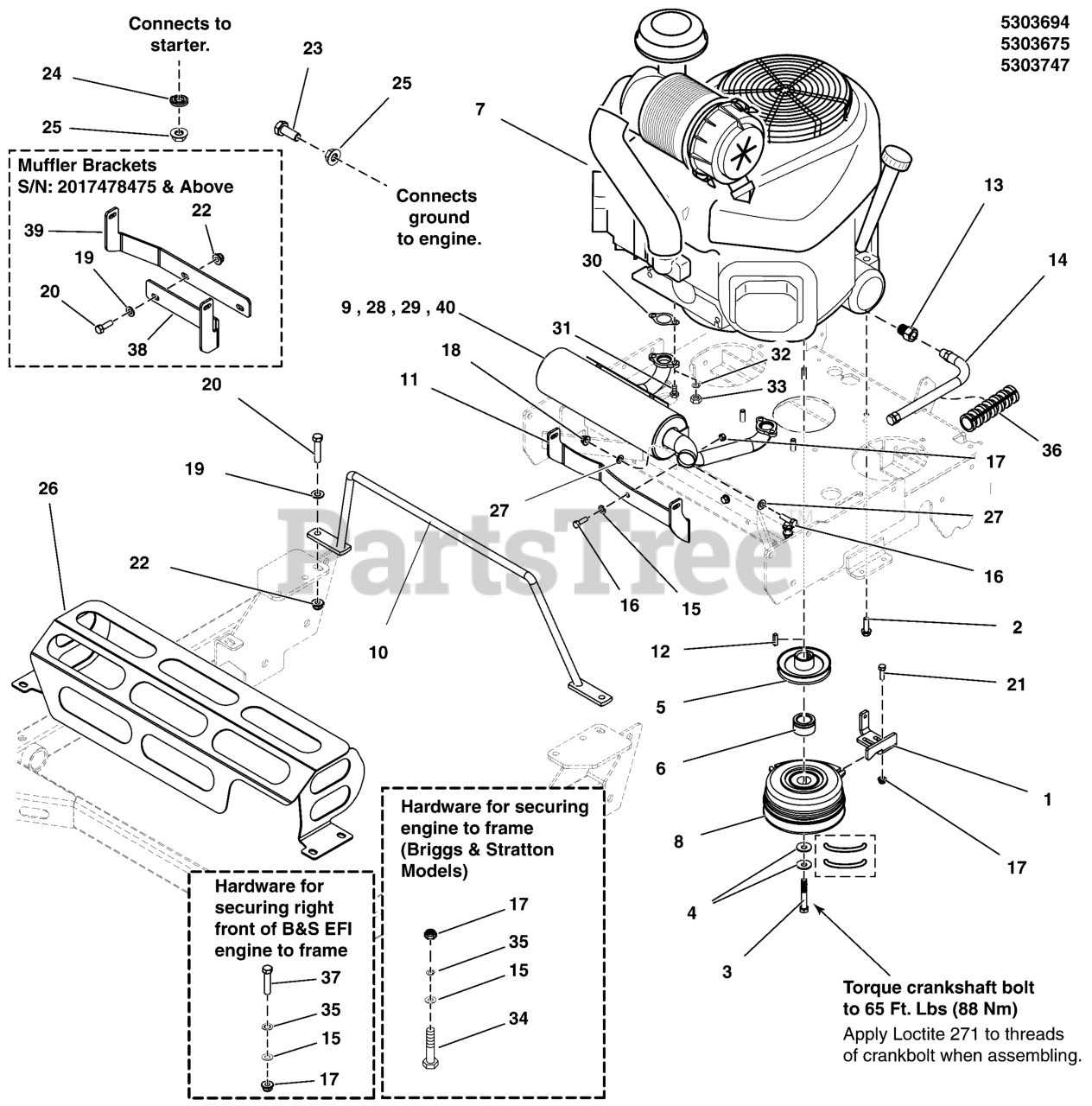

FW 35 (5901827) - Ferris FW35 Series 48" Walk-Behind Mower, 26hp Briggs & Stratton, Side-Discharge Engine & PTO Group Parts Diagram

FW35 Series 48" Walk-Behind Mower, 26hp Briggs & Stratton, Side-Discharge

Engine & PTO Group Parts Diagram

  • Title

1

Ferris 5412326A

PLATE, CLUTCH ANCHOR - BLK

$14.99

$

Usually ships in 2-12 days

0

2

Ferris 5025532

BOLT, 3/8-16 X 1-1/4, SF, PLT W/PATCH
(Superseded to 84003591)

Note: (Kawasaki Models Only)

$3.49

$

Usually ships in 2-12 days

0

3

Ferris 5102865

BOLT, CRANKSHAFT,7/16-20X2-3/4, GD8
(Superseded to 5102865YP)

$5.49

$

In Stock, only 1 left!

0

4

Ferris 5025585

BELLEVILLE WASHER 1.1875 X .442 X .089
(Superseded to 5025585YP)

$4.49

$

In Stock, only 2 left!

0

5

Ferris 5104236

PULLEY, CRANKSHAFT, 1.125ID X 4.50OD, OS
(Superseded to 5104236FS)

$44.99

$

Usually ships in 2-12 days

0

6

Ferris 5047033

SPACER, 1.13 X 1.75 X 1.03, CZ
(Superseded to 5047033SM)

$13.99

$

Usually ships in 2-12 days

0

7

ENGINE

$

$

Not available

8

Ferris 5105090

CLUTCH,5218-221, WARNER
(Superseded to 5105090YP)

$456.99

$

In Stock, only 1 left!

0

9

Ferris 5104163

MUFFLER, HORIZONTAL, KAWASAKI
(Superseded to 5104163FS)

Note: (Kawasaki Models Only)

$307.99

$

Usually ships in 2-12 days

0

10

Ferris 5412353A

WELD, MUFFLER GUARD - BLK

Note: (USA Models Only)

$62.99

$

Usually ships in 2-12 days

0

11

Ferris 5412315A

BRACKET, EXHAUST SYSTEM, WALK - BLK

Note: (S/N: 2017478474 & Below)

$19.99

$

Usually ships in 2-12 days

0

12

Ferris 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

Usually ships in 2-12 days

0

13

Ferris 5022234

ADAPTER-OIL DRAIN
(Superseded to 5022234SM)

Note: (Kawasaki Models Only)

$15.99

$

Usually ships in 2-12 days

0

14

Ferris 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

15

Ferris 5025155

WASHER, 5/16" SAE

Note: (Qty: 6 - Briggs & Stratton EFI Models)

$

$

Currently unavailable

16

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

Note: (Qty: 4 - S/N: 2017478474 & Below)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5025616

NUT, 5/16-24, NYLOCK FLANGE, GD8, CZ
(Superseded to 5025616YP)

Note: (Qty: 8 - Briggs & Stratton EFI Models)

$3.99

$

Usually ships in 2-12 days

0

18

Ferris 80003675

NUT, 5/16-18, HEX, CNTR LK,ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 10

0

19

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

Note: (Qty: 2 - S/N: 2017478474 & Below)

$3.49

$

Usually ships in 2-12 days

0

20

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

Note: (Qty: 2 - S/N: 2017478474 & Below)

$3.99

$

Usually ships in 2-12 days

0

21

Ferris 5025145X8

BOLT, 5/16-18 X 1" CARRIAGE
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

22

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

Note: (Qty: 2 - S/N: 2017478474 & Below)

$4.49

$

In Stock, Qty 15

0

23

Ferris 5025249

BOLT, M8-1.25 X 20MM GD8.8
(Superseded to 5025249YP)

$2.99

$

Usually ships in 2-12 days

0

24

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

25

Ferris 5025355

NUT, M8-1.25 SERR. FLANGE, CZ
(Superseded to 5025355SM)

$3.49

$

Usually ships in 2-12 days

0

26

Ferris 5412407B

WELD, CE MUFFLER GUARD, FW35 - RED
(Superseded to 5412407BFS)

Note: (CE Models Only)

$104.99

$

Usually ships in 2-12 days

0

27

Ferris 5025292

WASHER, HARD, F436
(Superseded to 5025292SM)

$3.99

$

In Stock, only 4 left!

0

28

Ferris 5104306

MUFFLER, 26/28, B&S VANG, TWR/WALK
(Superseded to 5104306FS)

Note: (Briggs & Stratton Carbureted Models Only)

$284.99

$

Usually ships in 2-12 days

0

29

Ferris 5104355

MUFFLER, 26/28, B&S EFI, TWR/WALK
(Superseded to 5104355FS)

Note: (Briggs & Stratton EFI Models Only)

$310.99

$

Usually ships in 2-12 days

0

30

Ferris 273485

GASKET, EXHAUST
(Superseded to 690970)

Note: (Briggs & Stratton Models)

$4.99

$

In Stock, Qty 20+

0

31

Ferris 94480

SCREW-HEX SEMS LOCK WSHR 5/16-18X0.875
(Superseded to 690341)

Note: (Briggs & Stratton Carbureted Models Only)

$5.99

$

In Stock, only 2 left!

0

32

Ferris 5023217

WASHER, 5/16 LIGHT LOCK
(Superseded to 5023217SM)

Note: (Briggs & Stratton EFI Models Only)

$3.49

$

Usually ships in 2-12 days

0

33

Ferris 5025032

NUT, 5/16-18 HEX
(Superseded to 5025032SM)

Note: (Briggs & Stratton EFI Models Only)

$3.49

$

In Stock, only 1 left!

0

34

Ferris 5025025X14

BOLT, 5/16-24 X 1-3/4, GD8
(Superseded to 5025025X14YP)

Note: (Briggs & Stratton Models)

$4.49

$

Usually ships in 2-12 days

0

35

Ferris 5025188

WASHER, 5/16 INT. TOOTH LOCK
(Superseded to 5025188SM)

Note: (Briggs & Stratton Models)

$3.99

$

In Stock, only 1 left!

0

36

Ferris 5050862X8

LOOM, 3/4" ID X 8.00" LG

$

$

Currently unavailable

37

Ferris 5025025X12

BOLT, 5/16-24 X 1-1/2, GD8, PHOS
(Superseded to 5025025X12YP)

Note: (Briggs & Stratton EFI Models Only)

$3.99

$

Usually ships in 2-12 days

0

38

Ferris 5415276A

PLATE, MUFFLER SUPPORT, LH, W35 - BLK

Note: (S/N: 2017478475 & Above)

$15.99

$

Usually ships in 2-12 days

0

39

Ferris 5415277A

PLATE, MUFFLER SUPPORT, RH, W35 - BLK

Note: (S/N: 2017478475 & Above)

$20.99

$

Usually ships in 2-12 days

0

40

Ferris 5105061

MUFFLER, 15-19HP KAWI, CATALYTIC COMBUST

Note: (Manual Start Models)

$273.99

$

Usually ships in 2-12 days

0
