G1450 (8772-0) - Generac 1,350 Watt Portable Generator Control Panel No. 61795 Parts Diagram

1,350 Watt Portable Generator

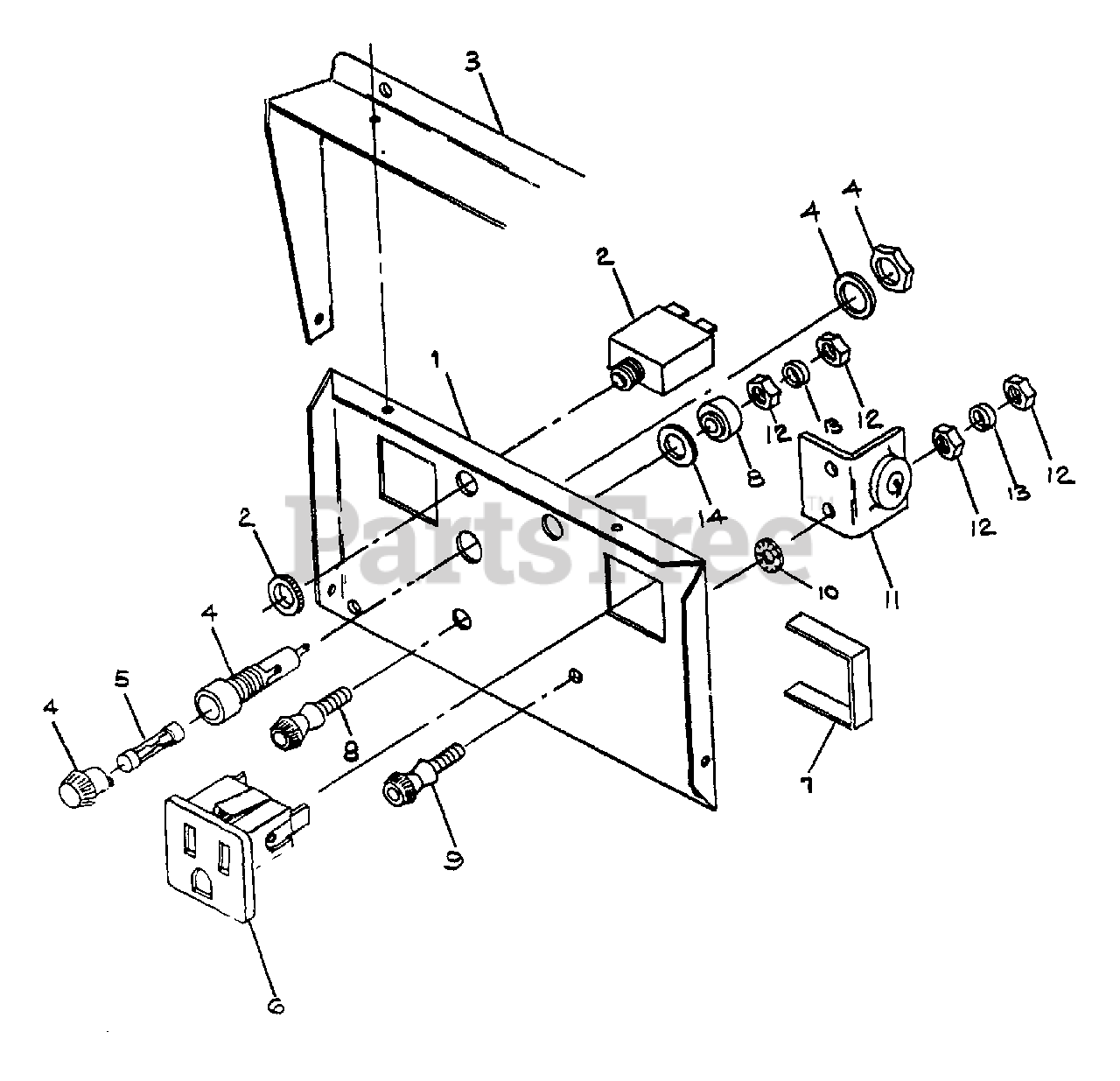

Control Panel No. 61795 Parts Diagram

  • Title

1

Briggs & Stratton 61484A

PANEL, Control

Note: (without Circuit Breakers)

$

$

Currently unavailable

Briggs & Stratton 61484C

PANEL, Control

Note: (with Circuit Breakers)

$

$

Currently unavailable

2

Briggs & Stratton 56286

BREAKER, Circuit

$

$

Not available

3

Briggs & Stratton 61485A

HOOD, Drip

$

$

Currently unavailable

4

Briggs & Stratton 22669

HOLDER, Fuse

$

$

Currently unavailable

5

Briggs & Stratton 22668

FUSE - 30 Ampere

$

$

Currently unavailable

6

Briggs & Stratton 22693

RECEPTACLE - 120 Volts
(Superseded to 7022693YP)

$52.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 27272

RETAINER, 120 Volts Receptacle

$

$

Currently unavailable

8

Briggs & Stratton 25367

POST, Battery Charge Terminal (Red)
(Superseded to 25367GS)

$21.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 25368

POST, Battery Charge Terminal (Black)

$

$

Not available

10

Briggs & Stratton 26579

WASHER, Shakeproof

$

$

Not available

11

Briggs & Stratton 45992

DIODE ASSEMBLY
(Superseded to 5045992)

$11.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 22471

NUT, Hex - No. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22264

WASHER, Lock - No. 8

$

$

Not available

14

Briggs & Stratton 30798

WASHER, Fiber

$

$

Currently unavailable

Briggs & Stratton A25383

CABLE, Battery Charging

$

$

Currently unavailable
