G1600 (9483-0) - Generac 1,400 Watt Portable Generator Carburetor Parts Diagram

1,400 Watt Portable Generator

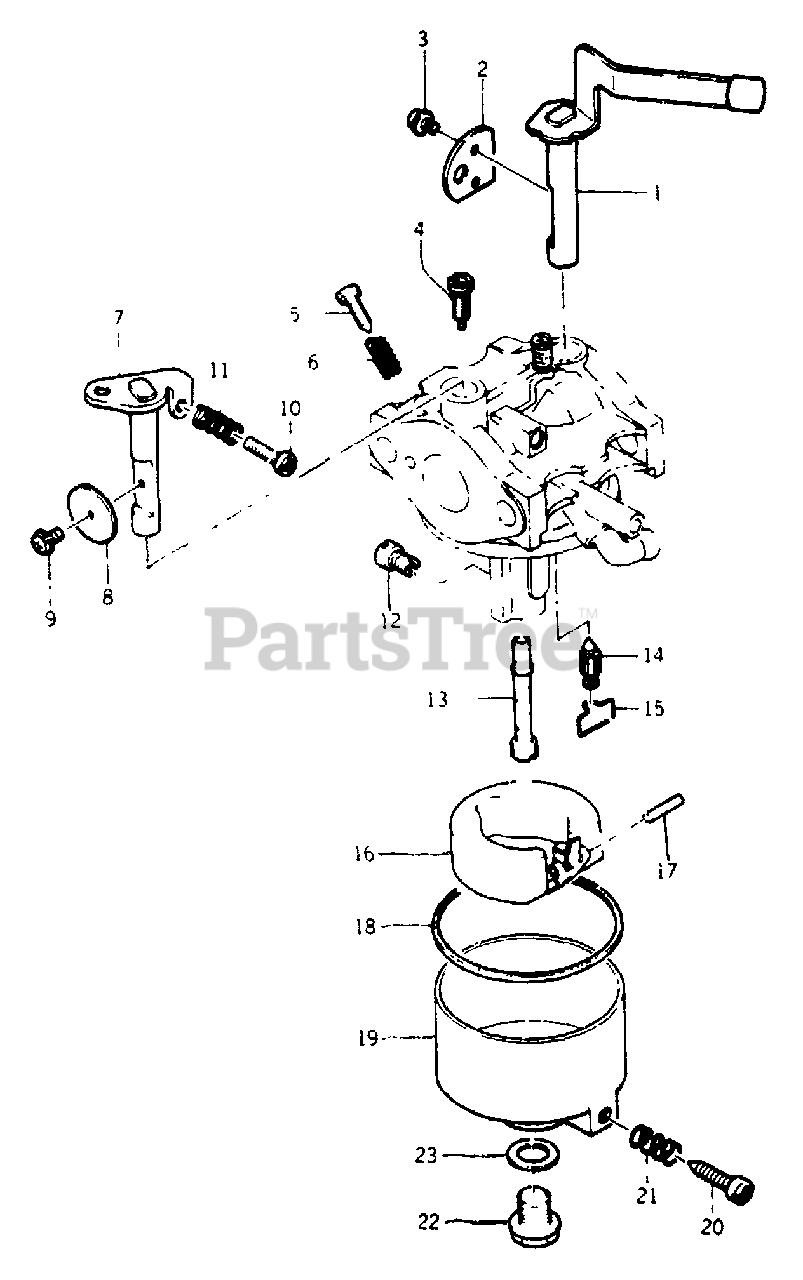

Carburetor Parts Diagram

  • Title

Briggs & Stratton 14865187

CARBURETOR Assy.

Note: Contact Generac for quantity required

$

$

Currently unavailable

1

Briggs & Stratton 21065187

SHAFT, Choke

Note: Contact Generac for quantity required

$

$

Currently unavailable

2

Briggs & Stratton 21165187

VALVE, Choke

Note: Contact Generac for quantity required

$

$

Currently unavailable

3

Briggs & Stratton 21265187

SCREW

Note: Contact Generac for quantity required

$

$

Currently unavailable

4

Briggs & Stratton 21365187

JET, Pilot

Note: Contact Generac for quantity required

$

$

Currently unavailable

5

Briggs & Stratton 21465187

SCREW, Pilot

Note: Contact Generac for quantity required

$

$

Not available

6

Briggs & Stratton 21565187

SPRING

Note: Contact Generac for quantity required

$

$

Currently unavailable

7

Briggs & Stratton 21665187

SHAFT, Throttle

Note: Contact Generac for quantity required

$

$

Currently unavailable

8

Briggs & Stratton 21765187

VALVE, Throttle

Note: Contact Generac for quantity required

$

$

Currently unavailable

9

Briggs & Stratton 21865187

SCREW

Note: Contact Generac for quantity required

$

$

Currently unavailable

10

Briggs & Stratton 21965187

SCREW, Step

Note: Contact Generac for quantity required

$

$

Currently unavailable

11

Briggs & Stratton 22065187

SPRING

Note: Contact Generac for quantity required

$

$

Currently unavailable

12

Briggs & Stratton 22165187

JET, Main

Note: Contact Generac for quantity required

$

$

Currently unavailable

13

Briggs & Stratton 22265187

NOZZLE, Main

Note: Contact Generac for quantity required

$

$

Currently unavailable

14

Briggs & Stratton 22365187

VALVE, Needle

Note: Contact Generac for quantity required

$

$

Not available

15

Briggs & Stratton 22465187

CLIP

Note: Contact Generac for quantity required

$

$

Currently unavailable

16

Briggs & Stratton 22565187

FLOAT

Note: Contact Generac for quantity required

$

$

Not available

17

Briggs & Stratton 22665187

PIN, Float

Note: Contact Generac for quantity required

$

$

Currently unavailable

18

Briggs & Stratton 22765187

GASKET

Note: Contact Generac for quantity required

$

$

Currently unavailable

19

Briggs & Stratton 22865187

CHAMBER

Note: Contact Generac for quantity required

$

$

Currently unavailable

20

Briggs & Stratton 22965187

SCREW, Drain

Note: Contact Generac for quantity required

$

$

Not available

21

Briggs & Stratton 23065187

SPRING

Note: Contact Generac for quantity required

$

$

Currently unavailable

22

Briggs & Stratton 23165187

BOLT

Note: Contact Generac for quantity required

$

$

Currently unavailable

23

Briggs & Stratton 23265187

GASKET

Note: Contact Generac for quantity required

$

$

Not available
