GCV200 LA S3L (GJAVA) - Honda Engine, Made in USA (SN: GJAVA-1000001 - GJAVA-9999999) FLYWHEEL Parts Diagram

Engine, Made in USA

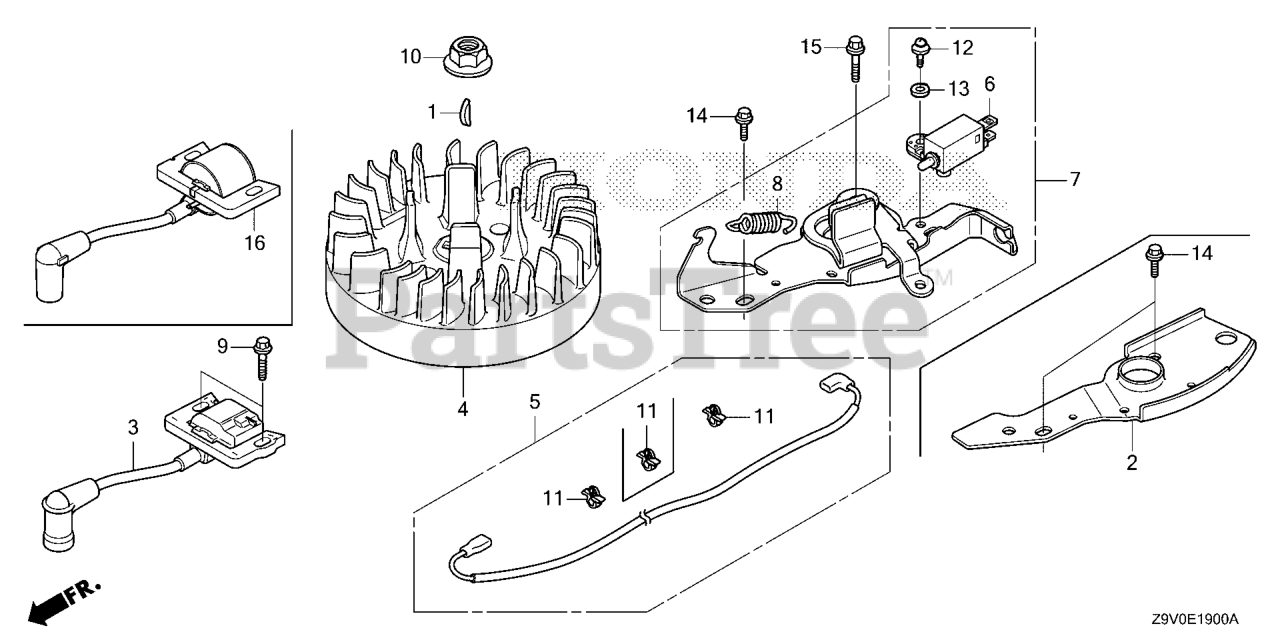

FLYWHEEL Parts Diagram

  • Title

1

Honda 13331-Z8B-900

KEY, SPECIAL WOODRUFF (25X18)

$6.49

$

In Stock, only 1 left!

0

3

Honda 30500-Z9L-004

COIL ASSY., IGNITION

Note: (Optional)

$89.99

$

In Stock, only 1 left!

0

3

Honda 30500-Z9V-004

COIL ASSY., IGNITION

$26.99

$

In Stock, only 1 left!

0

4

Honda 31110-Z9L-013

FLYWHEEL

$51.99

$

Usually ships in 3-6 days

0

5

Honda 32195-Z9V-010

WIRE, STOP SWITCH

Note: Use from Engine SN 1019832.

$20.99

$

Usually ships in 3-6 days

0

5

Honda 32195-Z9V-000

WIRE, STOP SWITCH

Note: Use up to Engine SN 1019831.

$20.99

$

Usually ships in 3-6 days

0

6

Honda 35120-Z9L-811

SWITCH ASSY., ENGINE STOP

$10.99

$

Usually ships in 3-6 days

0

7

Honda 75100-Z9V-000

BRAKE ASSY.

$25.99

$

Usually ships in 3-6 days

0

8

Honda 75113-Z9L-020

SPRING, BRAKE LEVER

$26.99

$

Usually ships in 3-6 days

0

9

Honda 90018-ZE1-000

BOLT, FLANGE (6X23) (Honda Code 1725050).

$2.49

$

In Stock, only 4 left!

0

10

Honda 90213-Z9L-000

NUT, FLANGE (14MM)

$4.99

$

Usually ships in 3-6 days

0

11

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

$5.49

$

Usually ships in 3-6 days

0

12

Honda 93892-04012-00

SCREW-WASHER (4X12) (Honda Code 0485946).

$0.99

$

In Stock, Qty 8

0

13

Honda 94103-04000

WASHER, PLAIN (4MM) (Honda Code 1510361).

$0.99

$

In Stock, Qty 7

0

14

Honda 95701-06014-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2374742).

$2.49

$

In Stock, Qty 20+

0

15

Honda 95701-06022-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X22) (Honda Code 2129682).

$2.49

$

Usually ships in 3-6 days

0
