GMT 085 (169-110-100) - Cub Cadet Grounds Maintenance Tractor 5 Speed Transmission Assembly Parts Diagram

Grounds Maintenance Tractor

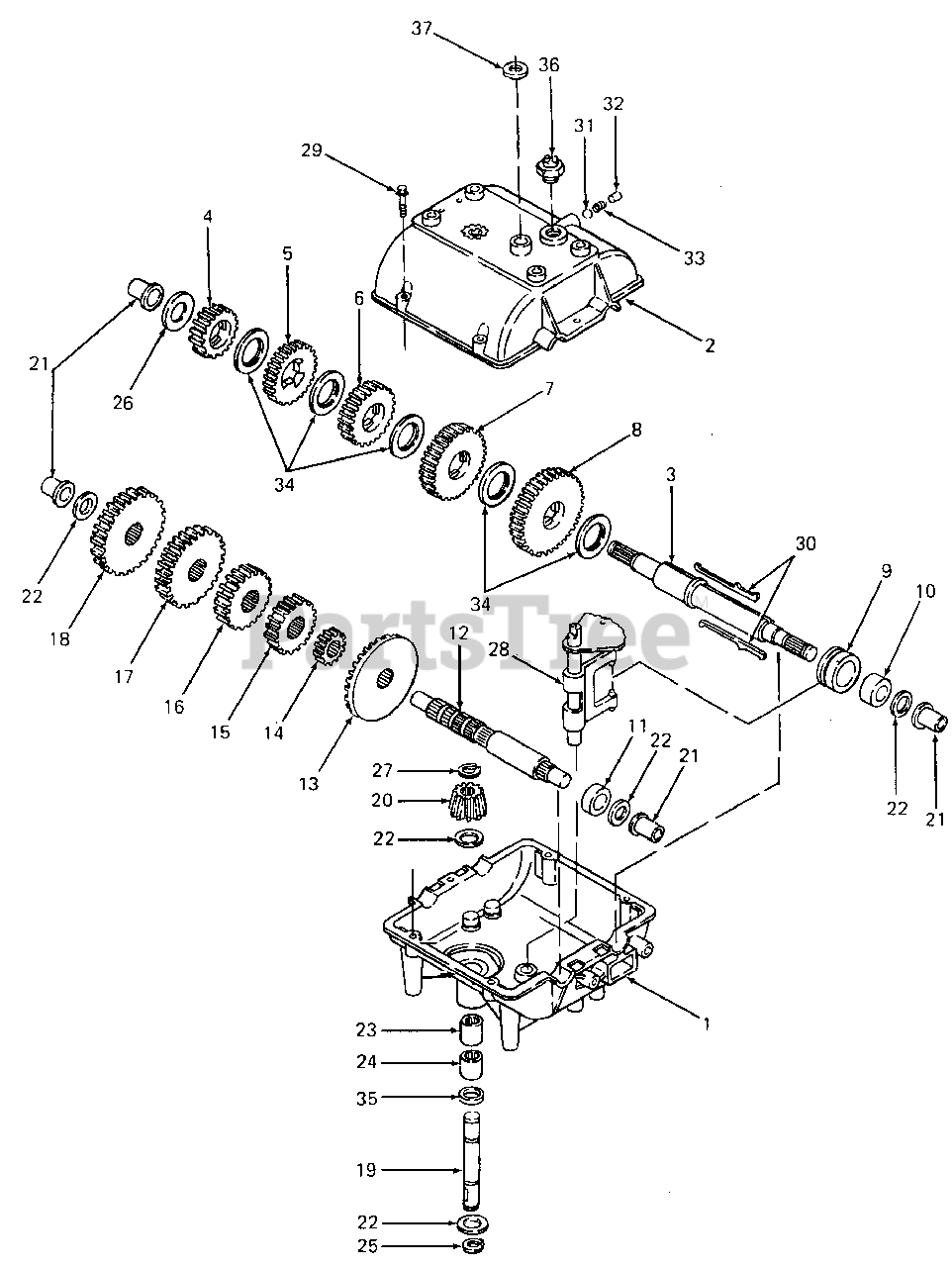

5 Speed Transmission Assembly Parts Diagram

  • Title

Cub Cadet TE-1000137

Transmission Assy, 5 Speed

$

$

Not available

1

Cub Cadet TC-770061

Case, Transmission
(Superseded to TC-799045)

$113.99

$

Usually ships in 3-12 days

0

2

Cub Cadet TC-772083

Cover, Transmission
(Superseded to TC-772083A)

$69.99

$

In Stock, only 4 left!

0

3

Cub Cadet TC-776217

Shaft, Output

$142.99

$

Usually ships in 3-12 days

0

4

Cub Cadet TC-778209

Gear, Spur (19 Teeth)
(Superseded to TC-778273)

$49.99

$

Usually ships in 3-12 days

0

5

Cub Cadet TC-778203

Gear, Spur (22 Teeth)

$

$

Not available

6

Cub Cadet TC-778204

Gear, Spur (25 Teeth)

$

$

Not available

7

Cub Cadet TC-778205

Gear, Spur (30 Teeth)

$

$

Not available

8

Cub Cadet TC-778207

Gear, Spur (37 Teeth)
(Superseded to TC-778207A)

$63.99

$

In Stock, only 2 left!

0

9

Cub Cadet TC-784266

Collar, Shift

$11.99

$

Usually ships in 3-12 days

0

10

Cub Cadet TC-786069

Spacer, Output Shaft

$

$

Currently unavailable

11

Cub Cadet TC-786068

Spacer, Counter Shaft

$

$

Currently unavailable

12

Cub Cadet TC-776134

Shaft, Counter

$98.99

$

In Stock, only 1 left!

0

13

Cub Cadet TC-778154

Gear, Bevel (42 Teeth)

$125.99

$

In Stock, only 1 left!

0

14

Cub Cadet TC-778145

Gear, Spur (12 Teeth)

$18.99

$

Usually ships in 3-12 days

0

15

Cub Cadet TC-778200

Gear, Spur (20 Teeth)

$

$

Currently unavailable

16

Cub Cadet TC-778201

Gear, Spur (25 Teeth)

$

$

Not available

17

Cub Cadet TC-778202

Gear, Spur (28 Teeth)

$

$

Currently unavailable

18

Cub Cadet TC-778208

Gear, Spur (31 Teeth)

$52.99

$

Usually ships in 3-12 days

0

19

Cub Cadet TC-776284

Shaft, Input

$

$

Currently unavailable

20

Cub Cadet TC-778153

Pinion, Input Bevel

$

$

Currently unavailable

21

Cub Cadet TC-780105A

Bushing, Flanged

$8.49

$

In Stock, Qty 10

0

22

Cub Cadet TC-780072

Washer, Thrust

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet TC-780086

Bearing, Needle

$37.99

$

Usually ships in 3-6 days

0

24

Cub Cadet TC-780142

Bearing, Needle
(Superseded to TC-780086)

$12.99

$

In Stock, Qty 20+

0

25

Cub Cadet TC-792035

Ring, Retaining

$4.49

$

In Stock, Qty 14

0

26

Cub Cadet TC-780109

Washer

$4.49

$

Usually ships in 3-12 days

0

27

Cub Cadet TC-788040

Ring, Retaining

$4.49

$

In Stock, Qty 5

0

28

Cub Cadet TC-784267

Rod & Fork Assy, Shift

$75.99

$

Usually ships in 3-12 days

0

29

Cub Cadet TC-792073

Screw, Flanged Hex Hd, 1/4-20 X 1/25 Lg
(Superseded to TC-792073A)

$1.99

$

In Stock, only 2 left!

0

30

Cub Cadet TC-792089A

Key
(Superseded to TC-792089B)

$35.99

$

In Stock, Qty 5

0

31

Cub Cadet TC-792077

Ball, Steel, 5/16
(Superseded to TC-792077A)

$4.49

$

In Stock, Qty 6

0

32

Cub Cadet TC-792078

Screw, Set, 3/8-16 X 3/8 Lg

$4.49

$

In Stock, only 1 left!

0

33

Cub Cadet TC-792079

Spring

$4.49

$

In Stock, only 2 left!

0

34

Cub Cadet TC-780108

Washer, Thrust

$4.49

$

In Stock, Qty 9

0

35

Cub Cadet TC-792001

O-Ring

$4.49

$

In Stock, Qty 11

0

36

Cub Cadet TE-1000293

Switch, Neutral Start

$

$

Not available

37

Cub Cadet TC-788069

Seal, Square Cut

$4.49

$

Usually ships in 3-12 days

0
