GMT 085 (169-110-100) - Cub Cadet Grounds Maintenance Tractor Carburetor Assembly Parts Diagram

Grounds Maintenance Tractor

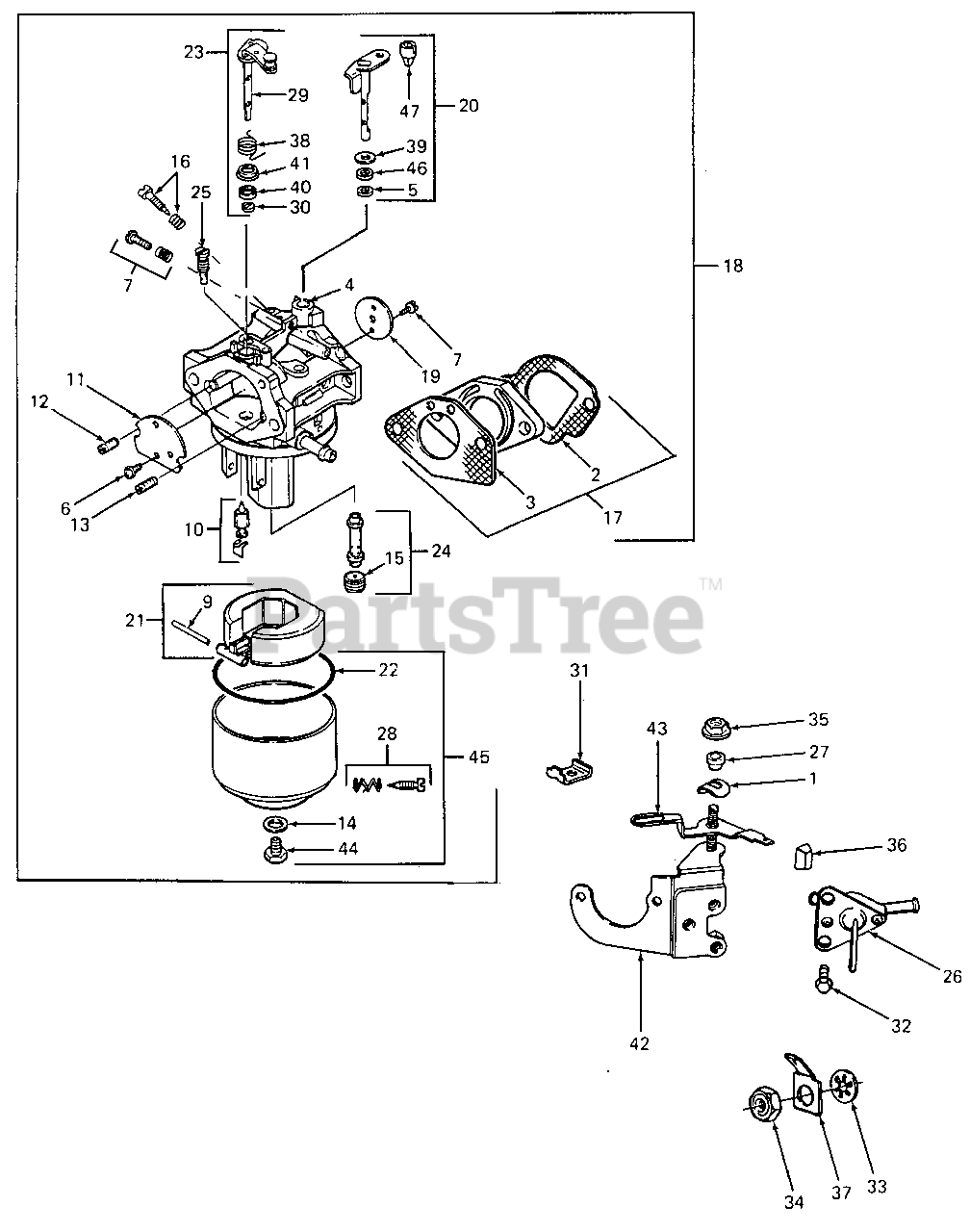

Carburetor Assembly Parts Diagram

  • Title

1

Cub Cadet BS-94502

Washer, Spring

$

$

Currently unavailable

2

Cub Cadet BS-272043

Gasket, Adapter

$4.99

$

Usually ships in 2-12 days

0

3

Cub Cadet BS-272069

Gasket, Adapter

$4.49

$

Usually ships in 2-12 days

0

4

Cub Cadet BS-280926

Bushing, Throttle Shaft (Upper)

$

$

Currently unavailable

5

Cub Cadet BS-280927

Bushing, Throttle Shaft (Lower)

$

$

Currently unavailable

6

Cub Cadet BS-94457

Screw, Mtg

$3.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-94466

Screw, Mtg

$3.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-492276

Screw & Spring Assy, Idle Speed

$

$

Currently unavailable

9

Cub Cadet BS-231652

Pin, Float Hinge

$7.49

$

Usually ships in 2-12 days

0

10

Cub Cadet BS-492188

Valve, Float

$48.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-224219

Valve, Choke

$

$

Currently unavailable

12

Cub Cadet BS-231646

Nozzle, Carburetor

$

$

Currently unavailable

13

Cub Cadet BS-231656

Nozzle, Carburetor

$

$

Currently unavailable

14

Gasket, Sealing

Note: (Sold in BS-492287 Kit only)

$

$

Not available

15

Jet, Main

Note: (Sold in BS-492287 Kit only)

$

$

Not available

16

Cub Cadet BS-492277

Valve Assy, Carburetor

$

$

Currently unavailable

17

Cub Cadet BS-491586

Spacer, Carburetor

$14.99

$

Usually ships in 2-12 days

0

18

Cub Cadet BS-492907

Carburetor Assy

$

$

Currently unavailable

19

Cub Cadet BS-224221

Valve, Throttle

$

$

Currently unavailable

20

Cub Cadet BS-492284

Shaft, Throttle

$

$

Currently unavailable

21

Cub Cadet BS-492283

Float Assy, Carburetor

$35.99

$

Usually ships in 2-12 days

0

22

Gasket, Bowl

Note: (Sold in BS-492287 Kit only)

$

$

Not available

23

Cub Cadet BS-492285

Shaft Assy, Choke

$

$

Currently unavailable

24

Cub Cadet BS-492324

Nozzle

$

$

Currently unavailable

25

Cub Cadet BS-231653

Nozzle

$

$

Currently unavailable

26

Cub Cadet BS-491860

Valve, Fuel Shut-Off

$

$

Not available

27

Cub Cadet BS-262476

Bushing, Lever

$

$

Currently unavailable

28

Cub Cadet BS-492274

Drain, Carburetor

$10.99

$

In Stock, only 1 left!

0

29

Cub Cadet BS-280958

Retainer, Choke Shaft (Upper)

$

$

Currently unavailable

30

Cub Cadet BS-280910

Retainer, Choke Shaft (Lower)

$

$

Currently unavailable

31

Cub Cadet BS-224070

Clamp, Casing

$

$

Currently unavailable

32

Cub Cadet BS-810037

Screw, Sems

$

$

Not available

33

Cub Cadet BS-92791

Lockwasher
(Superseded to BS-691077)

$3.49

$

Usually ships in 2-12 days

0

34

Cub Cadet BS-90576

Nut, Hex, 8-32
(Superseded to 712-0142)

$4.49

$

In Stock, Qty 12

0

35

Cub Cadet BS-810070

Nut, Hex

$

$

Currently unavailable

36

Cub Cadet BS-280715

Knob, Air Cleaner
(Superseded to BS-692295)

$9.49

$

In Stock, only 3 left!

0

37

Cub Cadet BS-93722

Terminal, Spade
(Superseded to BS-691084)

$6.49

$

In Stock, only 2 left!

0

38

Cub Cadet BS-262560

Spring, Choke Shaft

$

$

Currently unavailable

39

Washer, Throttle Shaft

Note: (Sold in BS-492287 Kit only)

$

$

Not available

40

Washer, Choke Shaft

Note: (Sold in BS-492287 Kit only)

$

$

Not available

41

Washer, Choke Shaft Seal

Note: (Sold in BS-492287 Kit only)

$

$

Not available

42

Cub Cadet BS-491371

Bracket & Nut Assy, Choke

$

$

Currently unavailable

43

Cub Cadet BS-224035

Lever, Choke

$

$

Currently unavailable

44

Cub Cadet BS-94459

Screw, Bowl Mtg

$

$

Currently unavailable

45

Cub Cadet BS-492286

Bowl Assy, Carburetor

$

$

Currently unavailable

46

Cub Cadet BS-492172

Seal, Throttle Shaft

$

$

Currently unavailable

47

Cub Cadet BS-280861

Retainer, Link

$5.99

$

In Stock, only 1 left!

0
