GMT 085 (169-110-100) - Cub Cadet Grounds Maintenance Tractor Engine Assembly Parts Diagram

Grounds Maintenance Tractor

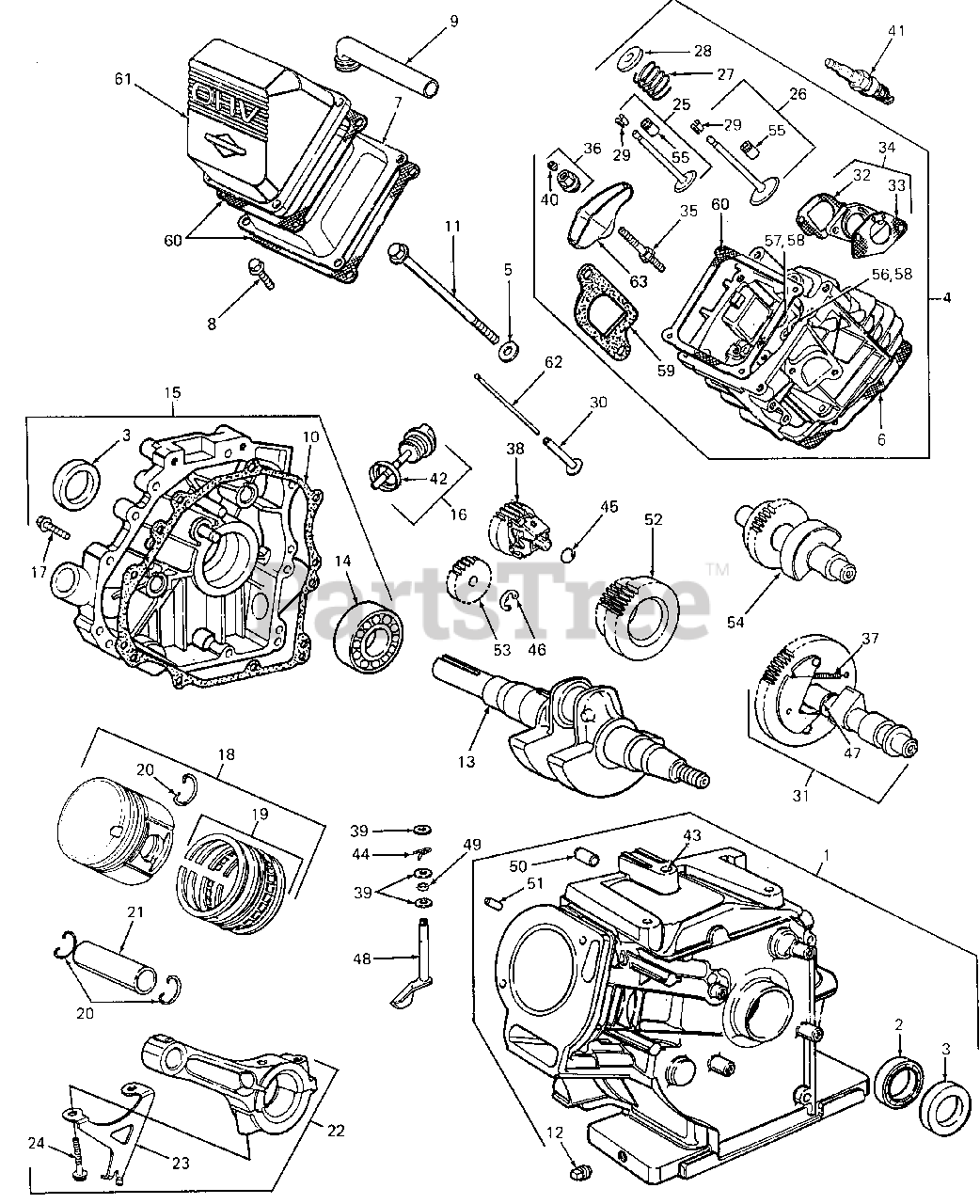

Engine Assembly Parts Diagram

  • Title

Cub Cadet BS-161437-0110

Engine Assembly (8.5 HP)

$

$

Currently unavailable

1

Cub Cadet BS-491914

Cylinder Assy

$

$

Currently unavailable

2

Cub Cadet BS-491902

Bearing

$

$

Currently unavailable

3

Cub Cadet BS-491500

Seal, Oil

$9.99

$

Usually ships in 2-12 days

0

4

Cub Cadet BS-492362

Head, Cylinder

$

$

Currently unavailable

5

Cub Cadet BS-94361

Washer

$

$

Currently unavailable

6

Cub Cadet BS-272067

Gasket, Cylinder Head

$16.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-491237

Breather Assy

$

$

Currently unavailable

8

Cub Cadet BS-810038

Screw, Valve Cover

$

$

Currently unavailable

9

Cub Cadet BS-280816

Tube, Breather

$

$

Currently unavailable

10

Cub Cadet BS-272068

Gasket, Cover (1/64 Thk)

$14.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-272223

Gasket, Cover (.009 Thk)

$

$

Currently unavailable

11

Cub Cadet BS-94358

Screw

$

$

Currently unavailable

12

Cub Cadet BS-91249

Plug, Oil Drain
(Superseded to BS-691686)

$5.49

$

In Stock, only 1 left!

0

13

Cub Cadet BS-262591

Crankshaft

$

$

Not available

14

Cub Cadet BS-492255

Bearing, Ball

$

$

Currently unavailable

15

Cub Cadet BS-492352

Cover, Crankcase

$

$

Currently unavailable

16

Cub Cadet BS-491832

Plug, Oil Filler
(Superseded to BS-809500)

$10.99

$

In Stock, only 1 left!

0

17

Cub Cadet BS-810041

Screw, Cover

$

$

Currently unavailable

18

Cub Cadet BS-491903

Piston Assy (Std)

$

$

Currently unavailable

Cub Cadet BS-492709

Piston Assy (.010 O.S.)

$

$

Currently unavailable

Cub Cadet BS-492710

Piston Assy (.020 O.S.)

$

$

Currently unavailable

Cub Cadet BS-492711

Piston Assy (.030 O.S.)

$

$

Currently unavailable

19

Cub Cadet BS-491905

Ring Set, Piston (Std)

$

$

Currently unavailable

Cub Cadet BS-492712

Ring Set, Piston (.010 O.S.)

$

$

Currently unavailable

Cub Cadet BS-492713

Ring Set, Piston (.020 O.S.)

$

$

Currently unavailable

Cub Cadet BS-492714

Ring Set, Piston (.030 O.S.)

$

$

Currently unavailable

20

Cub Cadet BS-262457

Lock, Piston Pin

$

$

Currently unavailable

21

Cub Cadet BS-491906

Pin Assy, Piston

$

$

Currently unavailable

22

Cub Cadet BS-491908

Connecting Rod Assy

Note: (For connecting rod with 0.20 underside crankpin bearing order BS-492754)

$

$

Currently unavailable

23

Cub Cadet BS-223986

Dipper, Connecting Rod

$

$

Currently unavailable

24

Cub Cadet BS-94327

Screw, Rod

$

$

Currently unavailable

25

Cub Cadet BS-491910

Valve, Exhaust

$

$

Currently unavailable

26

Cub Cadet BS-491911

Valve, Intake

$

$

Currently unavailable

27

Cub Cadet BS-262415

Spring, Valve

$

$

Currently unavailable

28

Cub Cadet BS-262381

Retainer, Intake Valve

$

$

Currently unavailable

29

Cub Cadet BS-492231

Retainer, Valve Rotocoil

$

$

Currently unavailable

30

Cub Cadet BS-262411

Tappet, Valve

$

$

Not available

31

Cub Cadet BS-491387

Gear, Cam

$

$

Currently unavailable

32

Cub Cadet BS-272043

Gasket, Adapter

$4.99

$

Usually ships in 2-12 days

0

33

Cub Cadet BS-272069

Gasket, Adapter

$4.49

$

Usually ships in 2-12 days

0

34

Cub Cadet BS-491586

Spacer, Carburetor

$14.99

$

Usually ships in 2-12 days

0

35

Cub Cadet BS-94342

Stud

$

$

Currently unavailable

36

Cub Cadet BS-491511

Nut, Hex

$

$

Not available

37

Cub Cadet BS-262454

Spring, Cam

$

$

Currently unavailable

38

Cub Cadet BS-491909

Gear, Governor

$44.99

$

Usually ships in 2-12 days

0

39

Cub Cadet BS-94423

Washer, Crank

$

$

Currently unavailable

40

Cub Cadet BS-810045

Screw, Set

$

$

Not available

41

Cub Cadet 759-3336

Plug, Spark
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

42

Cub Cadet BS-271983

Seal, Dipstick
(Superseded to BS-809500)

$10.99

$

In Stock, only 1 left!

0

43

Cub Cadet BS-231592

Bushing

$

$

Currently unavailable

44

Cub Cadet BS-94424

Pin, Cotter

$

$

Currently unavailable

45

Cub Cadet BS-93898

Ring, Retaining

$

$

Currently unavailable

46

Cub Cadet BS-94372

Ring, Retaining

$

$

Currently unavailable

47

Cub Cadet BS-94371

Ring, Retaining

$

$

Currently unavailable

48

Cub Cadet BS-491951

Crank, Governor

$

$

Currently unavailable

49

Cub Cadet BS-491880

Seal, Oil

$8.99

$

Usually ships in 2-12 days

0

50

Cub Cadet BS-231589

Pin, Cylinder

$

$

Currently unavailable

51

Cub Cadet BS-230192

Pin, Cylinder
(Superseded to BS-690959)

$6.99

$

Usually ships in 2-12 days

0

52

Cub Cadet BS-262435

Gear, Timing

$

$

Currently unavailable

53

Cub Cadet BS-262437

Gear, Idler

$

$

Currently unavailable

54

Cub Cadet BS-213430

Gear, Counterbalance

$

$

Currently unavailable

55

Cub Cadet BS-491020

Seal Assy, Valve

$11.99

$

Usually ships in 2-12 days

0

56

Cub Cadet BS-262407

Seat, Intake Valve

$

$

Currently unavailable

57

Cub Cadet BS-262408

Seat, Exhaust Valve

$

$

Currently unavailable

58

Cub Cadet BS-262378

Bushing, Valve Guide

Note: (Exhaust or Intake)

$

$

Currently unavailable

59

Cub Cadet BS-272102

Gasket, Muffler

$11.99

$

Usually ships in 2-12 days

0

60

Cub Cadet BS-272063

Gasket, Rocker Cover

$9.99

$

Usually ships in 2-12 days

0

61

Cub Cadet BS-213332

Cover, Valve

$

$

Currently unavailable

62

Cub Cadet BS-491233

Rod, Push

$

$

Currently unavailable

63

Cub Cadet BS-223973

Arm, Rocker

$

$

Currently unavailable
