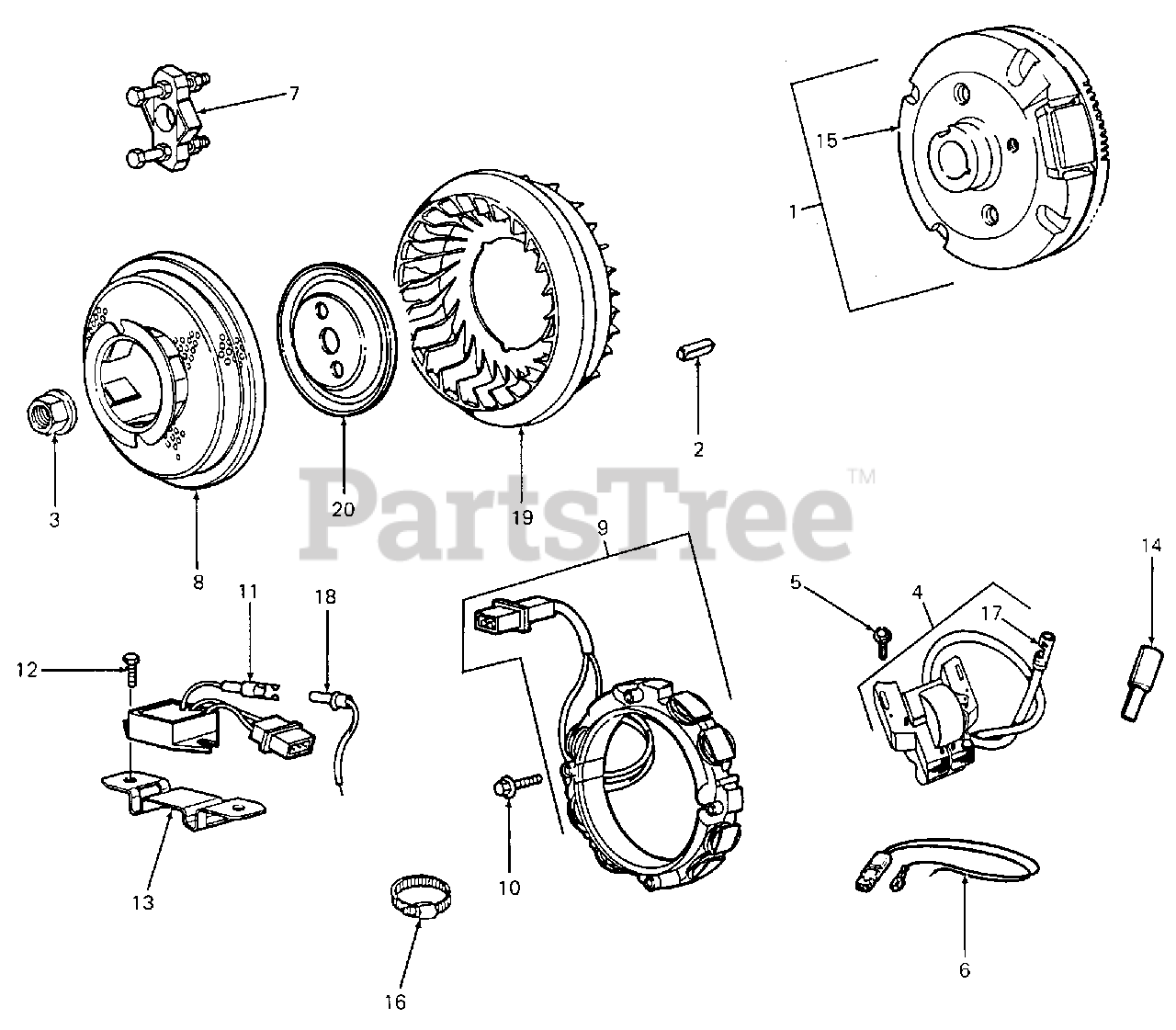

GMT 085 (169-110-100) - Cub Cadet Grounds Maintenance Tractor Engine Electrical Parts Diagram

Grounds Maintenance Tractor

Engine Electrical Parts Diagram

  • Title

1

Cub Cadet BS-491430

Flywheel, Magneto

$153.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-222698

Key, Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

3

Cub Cadet BS-810042

Nut

$

$

Currently unavailable

4

Cub Cadet BS-492341

Armature
(Superseded to BS-591459)

$53.99

$

In Stock, Qty 20+

0

5

Cub Cadet BS-810035

Screw, Sems

$

$

Currently unavailable

6

Cub Cadet BS-491668

Wire, Ground

$

$

Currently unavailable

7

Cub Cadet BS-19203

Puller, Flywheel

Note: (Optional accessory)

$23.99

$

In Stock, only 1 left!

0

8

Cub Cadet BS-492043

Hub & Screen Assy, Starter

$17.99

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-393295

Stator, 16 Amp
(Superseded to BS-592830)

$101.99

$

In Stock, only 4 left!

0

10

Cub Cadet BS-810071

Screw, Sems

$

$

Currently unavailable

11

Cub Cadet BS-394890

Regulator, Alternator
(Superseded to BS-845907)

$61.99

$

In Stock, Qty 17

0

12

Cub Cadet BS-810059

Screw

$

$

Currently unavailable

13

Cub Cadet BS-224303

Bracket, Regulator

$

$

Currently unavailable

14

Cub Cadet BS-280872

Elbow, Spark Plug
(Superseded to BS-691909)

$4.99

$

In Stock, Qty 10

0

15

Cub Cadet BS-492007

Gear, Ring

Note: (Includes mounting hardware)

$

$

Currently unavailable

16

Cub Cadet BS-393514

Clamp, Regulator

$

$

Currently unavailable

17

Cub Cadet BS-224110

Terminal
(Superseded to BS-692424)

$5.99

$

In Stock, only 2 left!

0

18

Cub Cadet BS-393422

Harness Assy, Alternator
(Superseded to BS-692306)

$17.99

$

Usually ships in 2-12 days

0

19

Cub Cadet BS-280803

Fan, Flywheel

$

$

Currently unavailable

20

Cub Cadet BS-223990

Retainer, Fan

$

$

Currently unavailable
