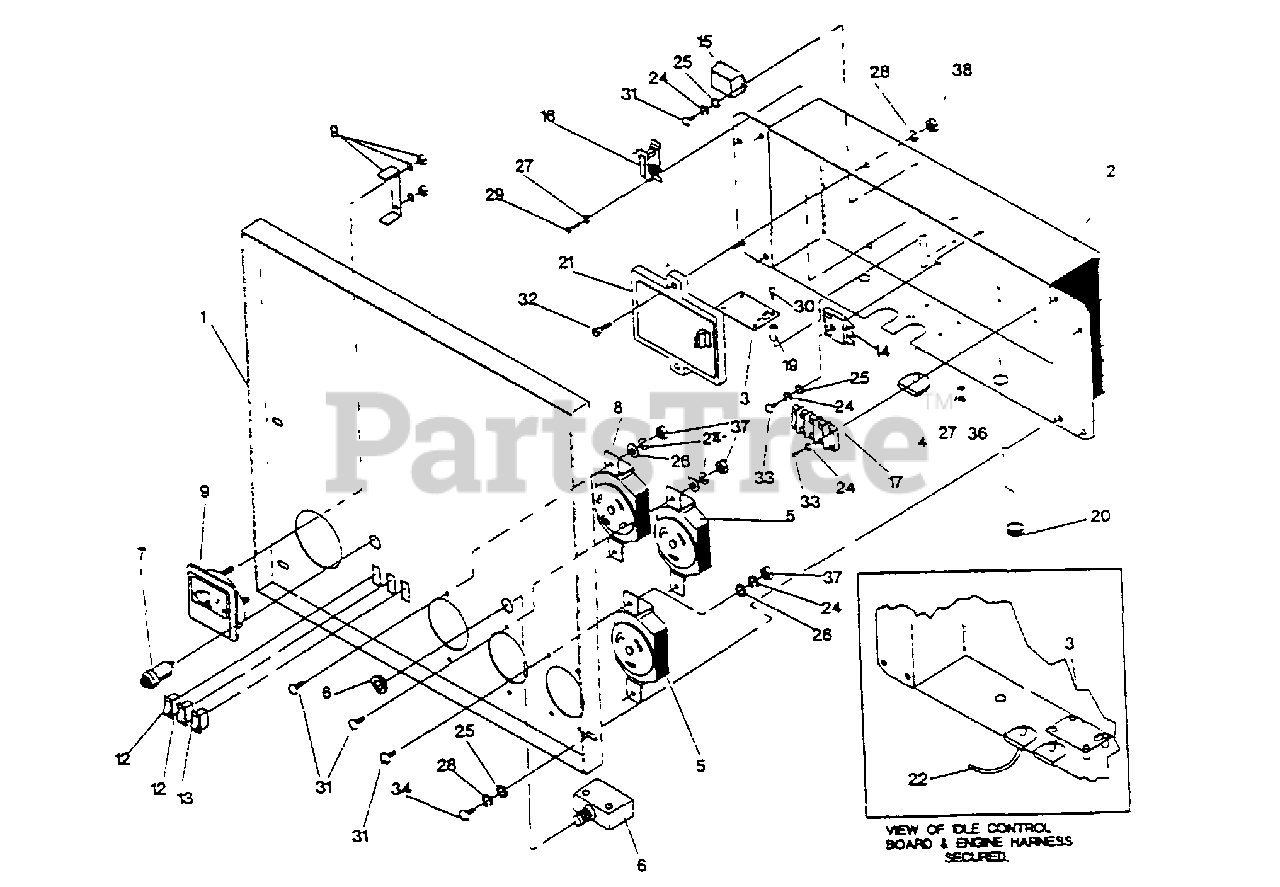

GN11003E (0496-0) - Generac Portable Generator Control Panel Parts Diagram

Portable Generator

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 98111

Control Panel

$

$

Currently unavailable

2

Briggs & Stratton 98431

Control Panel Box

$

$

Currently unavailable

3

Briggs & Stratton 94117

Idle Control Assembly
(Superseded to 791680)

$3.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 84135

Rubber Grommet Connector
(Superseded to 84135GS)

$3.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 38253

250V, 30A, Locking Type Outlet

$

$

Not available

6

75207A

30A Circuit Breaker

$

$

Not available

7

Briggs & Stratton 97928

Lamp

$

$

Currently unavailable

8

Briggs & Stratton 98385

380-volt, 20-amp Outlet

$

$

Currently unavailable

9

Briggs & Stratton 98242

0-300V Voltmeter
(Superseded to 98242GS)

$50.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 77244A

Field Boost Assembly

$

$

Not available

12

Briggs & Stratton 87968

-/o Switch
(Superseded to 87968GS)

$7.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 78653

Run/Stop Switch
(Superseded to 78653GS)

$4.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 65795

Battery Charge Rectifier
(Superseded to 65795GS)

$

$

Not available

15

Briggs & Stratton 77314

Thermal Relay

$

$

Not available

16

Briggs & Stratton 84028

Idle Control Transformer
(Superseded to 84028GS)

$47.99

$

In Stock, only 2 left!

0

17

Briggs & Stratton 92953

50A Terminal Block
(Superseded to 92953GS)

$17.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 93929

1/2" Stand-off
(Superseded to 93929GS)

$1.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 90576

Rubber Grommet
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

21

Briggs & Stratton 83049

Voltage/Freq. Regulator
(Superseded to 83049GS)

$313.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 98479

Engine Harness Assembly

$

$

Currently unavailable

24

Briggs & Stratton 22264

#8 - M4 Lock Washer

$

$

Not available

25

Briggs & Stratton 23897

#10 - M5 Flat Washer
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 38150

#8 Flat Washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 43182

M3 Lock Washer
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 49226

M5 Lock Washer
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 43181

M3-0.5 x 10mm Screw
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 93986

M3-0.5 x 20mm Screw
(Superseded to 93986GS)

$3.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 75475

M4-0.7 x 10mm Screw

$

$

Not available

32

Briggs & Stratton 33534

10-32 x 1.12" Screw

$

$

Currently unavailable

33

Briggs & Stratton 80077

M4-0.7 x 20mm Screw
(Superseded to 80077GS)

$4.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 91526

M6-0.8 x 12mm Screw

$

$

Not available

36

Briggs & Stratton 51714

M3-0.5 Hex Nut
(Superseded to 51714GS)

$3.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 51715

M4-0.7 Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 22158

#10-32 Hex Nut
(Superseded to 5022158)

$30.99

$

In Stock, Qty 6

0
