GN5500 (0488-0) - Generac 5,500 Watt Portable Generator Control Panel Drawing No. 98250 Parts Diagram

5,500 Watt Portable Generator

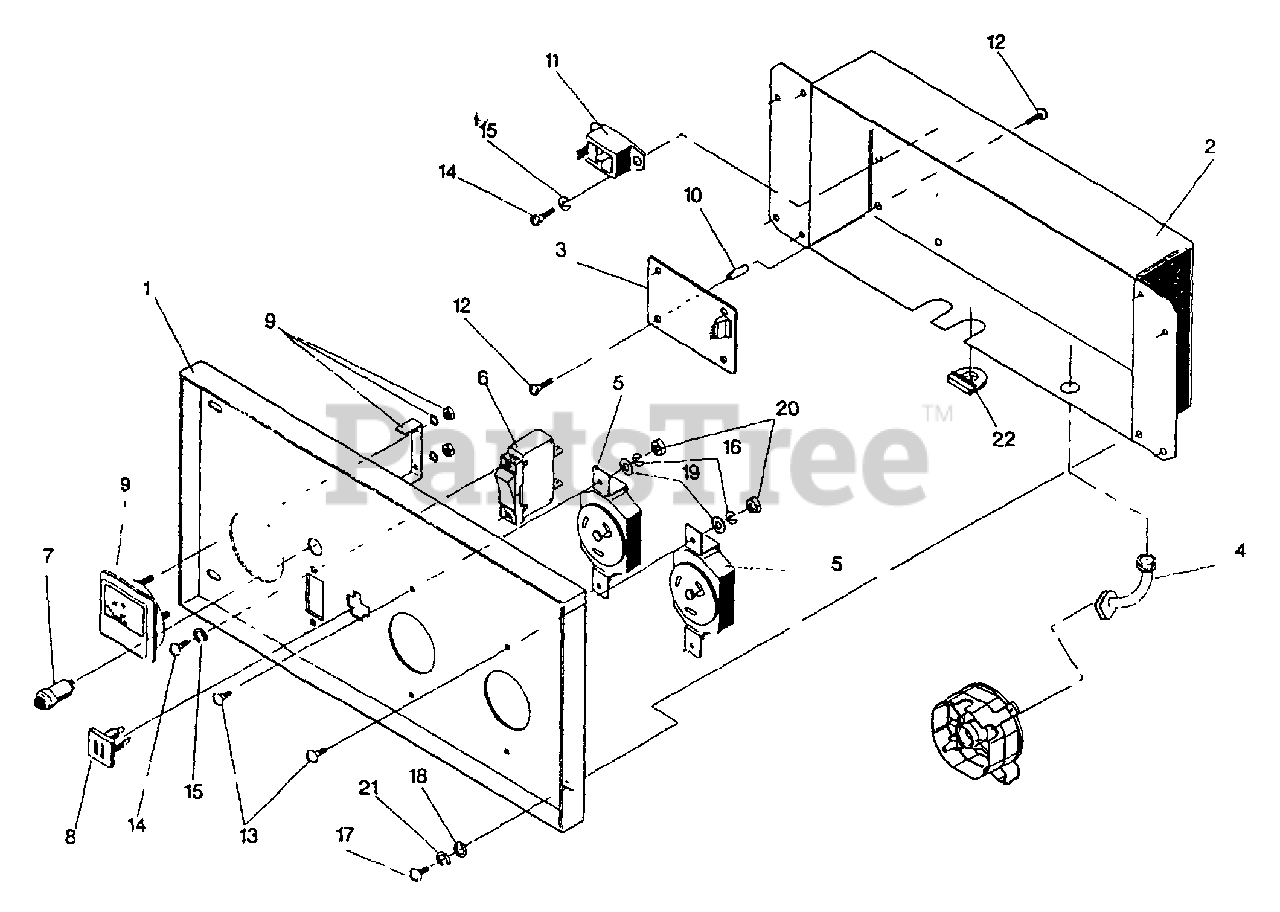

Control Panel Drawing No. 98250 Parts Diagram

  • Title

1

Briggs & Stratton 96909

Control Panel

$

$

Currently unavailable

2

Briggs & Stratton 98516

Control Panel Box
(Superseded to 98516GS)

$106.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 83970A

System Control Board
(Superseded to 83970AGS)

$299.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 84134

Rubber Grommet Connector
(Superseded to 84134GS)

$5.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 37804

250V. 20A. 3 Prong Locking Type Outlet
(Superseded to 37804GS)

$59.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 97895C

Main On/Off C.B. 20A.

$

$

Currently unavailable

7

Briggs & Stratton 97928

Lamp

$

$

Currently unavailable

8

Briggs & Stratton 90418

12 VDC 10A. Outlet
(Superseded to 90418GS)

$

$

Not available

9

Briggs & Stratton 98242

0 - 300 V. Voltmeter
(Superseded to 98242GS)

$50.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 64525

Stand - off Hex 3/4" Long

$

$

Currently unavailable

11

Briggs & Stratton 87962

12 V. 10A. Auto Reset Circuit Breaker
(Superseded to 87962GS)

$29.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 64526

Self Tapping #6 - 32 x 3/8" Screw

$

$

Not available

13

Briggs & Stratton 76055

M4 - 0.7 x 16 Pan Head Screw

$

$

Not available

14

Briggs & Stratton 43181

M3 - 0.5 x 10 Pan Head Screw
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 43182

M3 Lock Washer
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 22264

M4 Lock Washer

$

$

Not available

17

Briggs & Stratton 52749

M5 - 0.8 x 12 Phillips Pan Head Screw

$

$

Currently unavailable

18

Briggs & Stratton 23897

M5 Flat Washer
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 38150

M4 Flat Washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 51715

M4 Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 49226

M5 Lock Washer
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 84135

Rubber Grommet
(Superseded to 84135GS)

$3.99

$

Usually ships in 2-12 days

0
