Grizzly 4016 (575-4016100) - Cub Cadet Utility Vehicle Transaxle And Drive Parts Diagram

Utility Vehicle

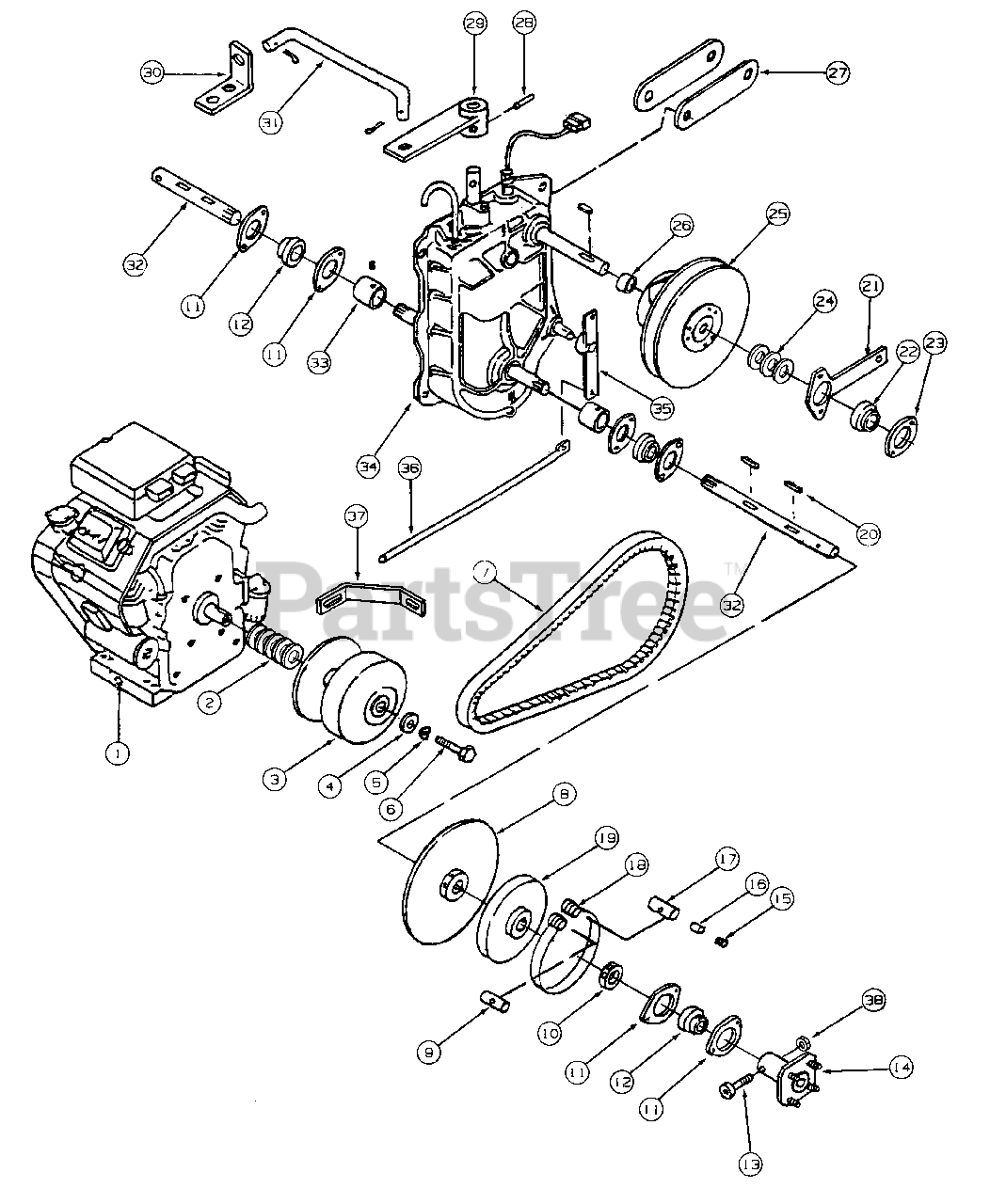

Transaxle And Drive Parts Diagram

  • Title

1

Cub Cadet BS-303447-1182

Engine, Vanguard, 16 HP

$

$

Currently unavailable

2

Cub Cadet CV-214556

Washer, 1 X 1-1/2 10 Ga

$

$

Currently unavailable

3

Cub Cadet CV-207024

Clutch, Drive, 40 Series

$

$

Currently unavailable

4

Cub Cadet CV-214554

Washer, .38 X 1.25 X 1.2

$

$

Currently unavailable

5

Cub Cadet CV-214130

Lockwasher, Helical Spring

$

$

Not available

6

Cub Cadet CV-202246

Screw, Hex Hd Cap, .38-24 UNF X 1.5

$

$

Not available

7

Cub Cadet CV-203073

Belt, Drive

$

$

Currently unavailable

8

Cub Cadet CV-206061

Disc & Hub, Brake

$

$

Currently unavailable

9

Cub Cadet CV-111006

Guide, Brake Wire

$

$

Not available

10

Cub Cadet CV-108050

Collar, Split Lock

$

$

Currently unavailable

11

Cub Cadet CV-204028

Flange, Bearing

$

$

Currently unavailable

12

Cub Cadet CV-204025

Bearing, Ball, 1"

$

$

Currently unavailable

13

Cub Cadet CV-204156

Screw, Skt Hd Cap, .44-14 UNC X 2.0

$

$

Not available

14

Cub Cadet CV-710143

Hub Assy, Rear

$

$

Currently unavailable

Cub Cadet CV-212392

Nut, Lug

$

$

Not available

15

Cub Cadet CV-202180

Screw, Set, .25-20 X .25

$

$

Not available

16

Cub Cadet CV-111003

Pad, Brake Wire

$

$

Not available

17

Cub Cadet CV-111010

Stop, Brake Wire

$

$

Not available

18

Cub Cadet CV-205031

Band, Parking Brake

$

$

Currently unavailable

19

Cub Cadet CV-206072

Drum, Parking Brake

$

$

Currently unavailable

20

Cub Cadet CV-219058

Key, Woodruff, Hy-Pro #809

$

$

Not available

21

Cub Cadet CV-280118

Support, Shaft Brace

$

$

Not available

22

Cub Cadet CV-204010

Bearing, Ball, 3/4

$

$

Not available

23

Cub Cadet CV-204011

Flange, 3/4

$

$

Not available

24

Cub Cadet CV-214555

Washer

$

$

Not available

25

Cub Cadet CV-207047

Converter, Torque, 40 Series

$

$

Currently unavailable

26

Cub Cadet CV-108032

Spacer

$

$

Not available

27

Cub Cadet CV-243240

Strap, Mtg

$

$

Currently unavailable

28

Cub Cadet CV-216129

Pin, Roll, .25 X 1.5 HBK

$

$

Not available

29

Cub Cadet CV-280115

Arm, Shift Actuator

$

$

Currently unavailable

30

Cub Cadet CV-244364

Bracket, Shift

$

$

Currently unavailable

31

Cub Cadet CV-107151

Rod, Shift

$

$

Not available

32

Cub Cadet CV-107150

Axle, Shaft

$

$

Currently unavailable

33

Cub Cadet CV-203070

Coupler, Splined

$

$

Not available

34

Cub Cadet CV-207045

Transaxle, KT30A

$

$

Not available

35

Cub Cadet CV-280116

Arm, Diff Lock

$

$

Currently unavailable

36

Cub Cadet CV-107152

Rod, Diff Lock

$

$

Not available

37

Cub Cadet CV-244379

Bracket, Engine Support

$

$

Currently unavailable

38

Cub Cadet CV-212200

Locknut, .44-14 UNC

$

$

Not available
