GT 1554 (14AK13BK056) - Cub Cadet 54" Garden Tractor (2007 & After) Engine Cylinder Head Parts Diagram

54" Garden Tractor

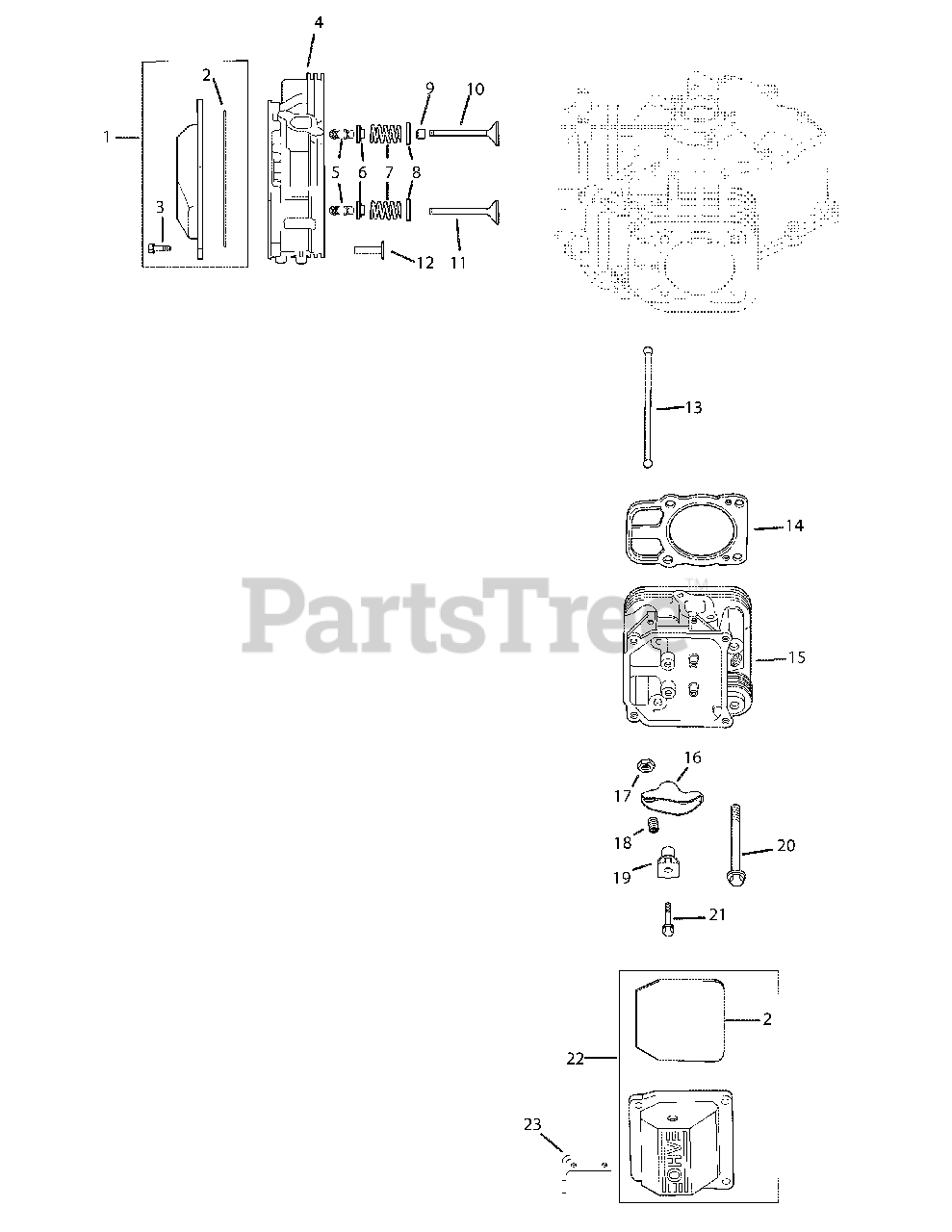

Engine Cylinder Head Parts Diagram

  • Title

1

Cub Cadet KH-24-755-141-S

Kit, valve cover - plain

Note: (Includes 2,3)

$35.99

$

In Stock, only 4 left!

0

2

Cub Cadet KH-24-153-30-S

O-Ring

$11.99

$

In Stock, Qty 20+

0

3

Cub Cadet KH-M-651030-S

Screw, hex. flange M6x1.0x30

$

$

Not available

4

Cub Cadet KH-32-318-01-S

Head assembly, #1 cylinder
(Superseded to KH-32-755-39-S)

$179.99

$

In Stock, only 4 left!

0

5

Cub Cadet KH-12-755-03

Kit, retainer

$5.99

$

In Stock, Qty 16

0

6

Cub Cadet KH-12-173-01

Cap, valve spring
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, Qty 9

0

7

Cub Cadet KH-24-089-02

Spring, valve

$

$

Not available

8

Cub Cadet KH-235011-S

Retainer, spring

$6.49

$

In Stock, Qty 14

0

9

Cub Cadet KH-66-032-05-S

Seal, valve stem
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, Qty 20+

0

10

Cub Cadet KH-24-017-01

Valve, intake (Std.)

$

$

Not available

10

Cub Cadet KH-24-017-02

Valve, intake (.25)

$

$

Not available

11

Cub Cadet KH-24-016-01

Valve, exhaust (Std.)
(Superseded to KH-32-016-01-S)

$14.99

$

In Stock, Qty 18

0

11

Cub Cadet KH-24-016-02

Valve, exhaust (.25

$

$

Not available

12

Cub Cadet KH-32-019-01-S

Tappet
(Superseded to KH-32-019-02-S)

$13.99

$

In Stock, Qty 11

0

13

Cub Cadet KH-32-411-02-S

Rod, push

$

$

Not available

14

Cub Cadet KH-24-841-03-S

Kit, cylinder head gasket
(Superseded to KH-24-841-04-S)

Note: (Includes head mounting hardware & KH-24 -041-49-S, KH- 24-153-27-S)

$45.99

$

In Stock, Qty 20+

0

15

Cub Cadet KH-32-318-02-S

Head assembly, #2 cylinder
(Superseded to KH-32-318-14-S)

$

$

Not available

16

Cub Cadet KH-32-186-03-S

Arm, rocker

Note: (before S/N 3633510953)

$6.49

$

In Stock, Qty 19

0

17

Cub Cadet KH-25-100-33-S

Nut, hex. M10x0.75
(Superseded to KH-25-100-38-S)

$3.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-25-086-128-S

Screw, set
(Superseded to KH-25-086-168-S)

$4.49

$

In Stock, Qty 12

0

19

Cub Cadet KH-25-599-01-S

Pivot, rocker arm

$2.49

$

In Stock, Qty 13

0

20

Cub Cadet KH-12-086-16

Screw,Hex. flange M10x1.5x90
(Superseded to KH-62-086-08-S)

$5.49

$

In Stock, Qty 20+

0

21

Cub Cadet KH-32-072-04-S

Screw, hex. flange M6x1.0x45

$4.99

$

In Stock, Qty 11

0

22

Cub Cadet KH-32-096-06-S

Kit, valve cover - breather

Note: (Includes 2)

$29.99

$

In Stock, only 3 left!

0

23

Cub Cadet KH-24-445-01

Strap, lifting
(Superseded to KH-25-445-03-S)

$2.49

$

In Stock, only 1 left!

0

24

Cub Cadet KH-32-146-09-S

Guide Plate

Note: (Not Illustrated)

$2.49

$

In Stock, Qty 10

0

25

Cub Cadet KH-25-072-04

Stud, M8x1.25x33
(Superseded to KH-25-072-24-S)

Note: (Not Illustrated)

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet KH-24-041-49-S

Gasket, exhaust manifold

Note: (Not Illustrated)

$

$

Not available

27

Cub Cadet KH-M-841080

Nut, hex. flange M8x1.25
(Superseded to 712-3086)

Note: (Not Illustrated)

$4.49

$

In Stock, Qty 20+

0
