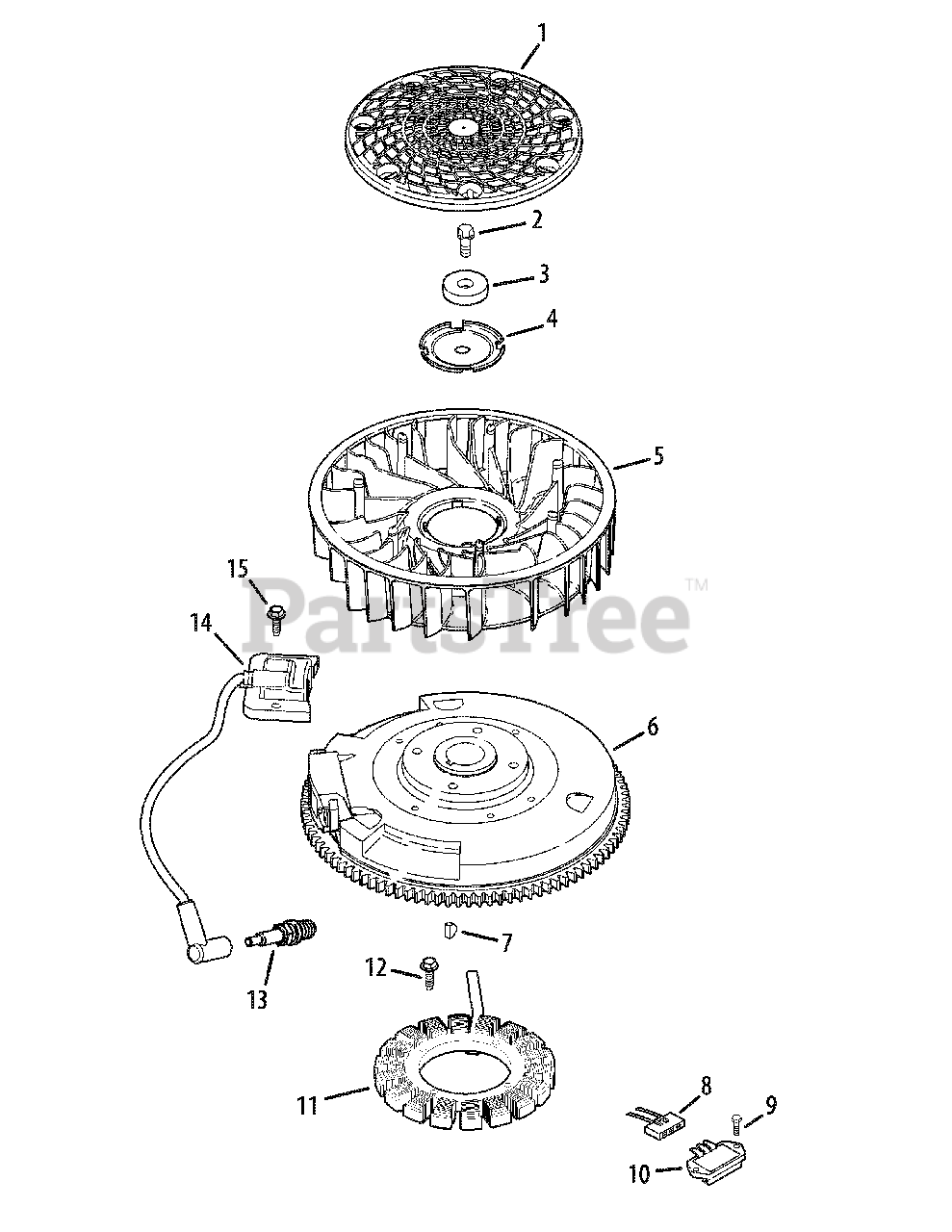

GT 1554 (14AK13BK056) - Cub Cadet 54" Garden Tractor (2007 & After) Engine Ignition & Electrical Parts Diagram

54" Garden Tractor

Engine Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet KH-32-162-03-S

Screen, grass

$4.99

$

In Stock, Qty 13

0

2

Cub Cadet KH-12-086-14

Screw, hex. flange M10x1.5x45
(Superseded to KH-25-086-361-S)

$3.49

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-12-468-03

Washer, plain 3/8"

$

$

Not available

4

Cub Cadet KH-20-146-05-S

Plate, fan mounting

$2.99

$

In Stock, only 2 left!

0

5

Cub Cadet KH-32-157-01-S

Fan
(Superseded to KH-32-755-38-S)

$21.99

$

In Stock, Qty 10

0

6

Cub Cadet KH-32-025-05-S

Flywheel
(Superseded to KH-32-025-21-S)

$346.99

$

In Stock, only 1 left!

0

7

Cub Cadet KH-X-42-15

Key

$

$

Not available

8

Cub Cadet KH-236602-S

Connector (3 contact)
(Superseded to KH-25-155-41-S)

$7.99

$

In Stock, Qty 11

0

9

Cub Cadet KH-M-551016-S

Screw, heavy hex. flange M5x0.8x16

$2.49

$

In Stock, only 1 left!

0

10

Cub Cadet KH-41-403-09-S

Rectifer-regulator
(Superseded to KH-25-403-37-S)

$105.99

$

In Stock, Qty 6

0

11

Cub Cadet KH-237878

Kit, 15 amp stator

Note: (Incl. KH-25-452-01-S)

$149.99

$

In Stock, Qty 15

0

12

Cub Cadet KH-M-548025-S

Screw, hex. head M5x0.8x25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

13

Cub Cadet 759-3336

Spark plug
(Superseded to RC12YC)

Note: KH-12-132-02

$3.49

$

In Stock, Qty 20+

0

14

Cub Cadet KH-24-584-52-S

Module, ignition

$

$

Not available

15

Cub Cadet KH-M-545020-S

Screw, hex. flange M5x0.8x20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 17

0

Cub Cadet KH-32-176-05-S

Kit, Wire Harness

Note: Not Illustrated

$

$

Not available

Cub Cadet KH-25-454-03-S

Wire, Tie

Note: Not Illustrated

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-452-01-S

Terminal

Note: Not Illustrated

$5.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-584-31-S

Module, Speed Advance

Note: Not Illustrated

$

$

Not available
