GT 1554 (14AK13BK056) - Cub Cadet 54" Garden Tractor (2007 & After) Hood & Grille Parts Diagram

54" Garden Tractor

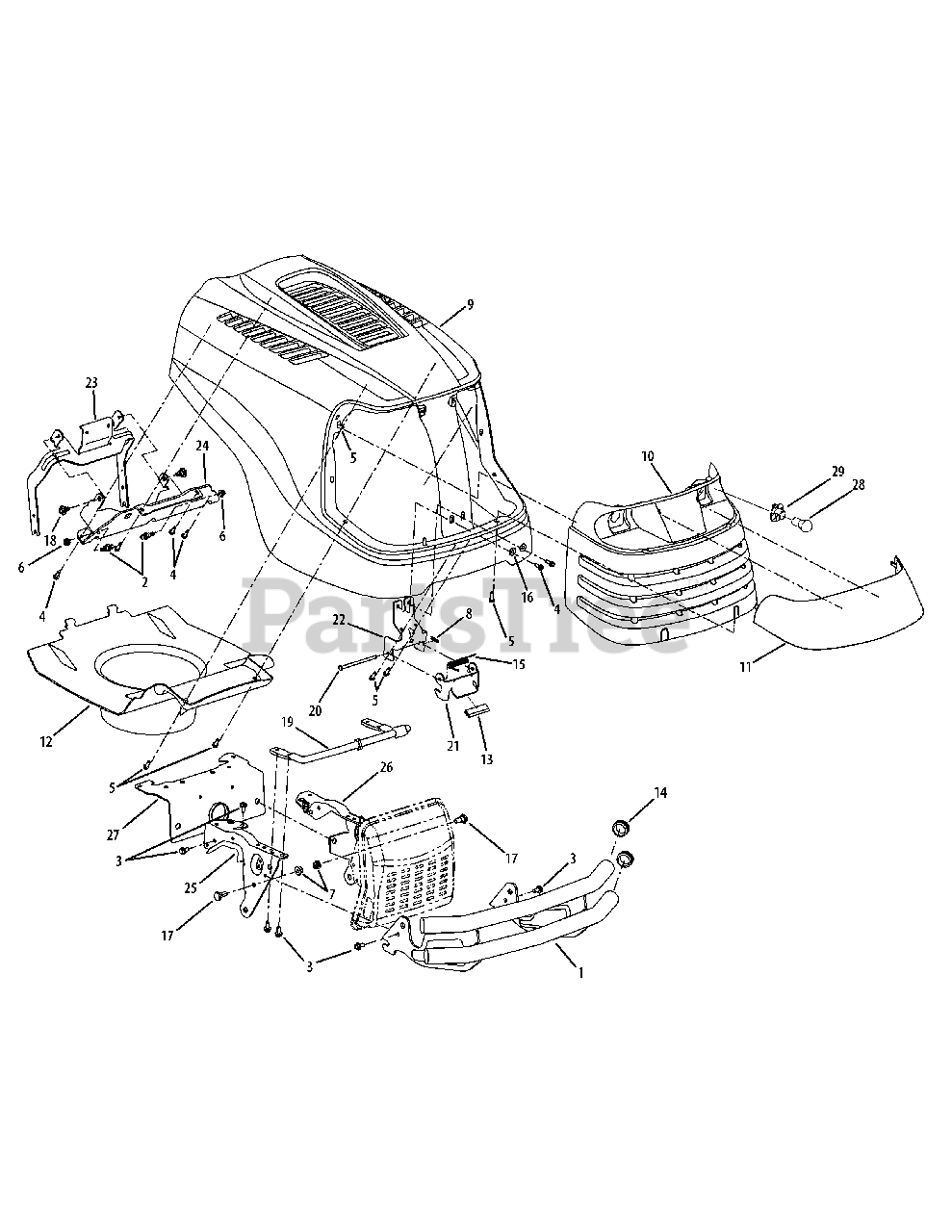

Hood & Grille Parts Diagram

  • Title

1

Cub Cadet 683-04218

Bumper
(Superseded to 683-04218-0637)

Variations

Cub Cadet 683-04218-0637

BUMPER-FRONT - POWDER BLACK (0637)

$152.99

$

Usually ships in 3-6 days

0

$152.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-04471

Bolt, Ball Shoulder, 5/16-18 x .48

$25.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-04484

Screw, Hex, 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0642

Screw, Self Tapp, 1/4-20 x.750

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0895

Screw, 1/4-15 x.750

$5.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-04063

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-04065

Nut, Nylon Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 714-0104

Pin, Cotter,.072 Dia. x 1.13

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 759-04209

Hood, Service Kit

Note: (contains 931-06887, 726-0233, 710-1242 and installation instructions)

$

$

Not available

9

Cub Cadet 931-06887

Hood
(Superseded to 931-06887A)

Note: Labels not included, Replaces 731-05053B

$

$

Not available

9

Cub Cadet 726-0233

Push Nut .25ID x .50 OD

Note: Not Shown, use with 931-06887

$3.99

$

In Stock, Qty 11

0

9

Cub Cadet 710-1242

Screw, Hi Low 5/16-14 x .75

Note: Not Shown, use with 931-06887

$4.49

$

In Stock, Qty 19

0

10

Cub Cadet 731-05103

Grill
(Superseded to 931-05103)

$98.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 731-05111

Lens
(Superseded to 931-05111)

$44.99

$

In Stock, Qty 9

0

12

Cub Cadet 731-05129

Hood Plenum

$

$

Not available

13

Cub Cadet 731-05291

Vinyl Strip, 2.5"
(Superseded to 731-05291-2.50)

$

$

Not available

14

Cub Cadet 731-05368

Cap, Bumper

$5.49

$

In Stock, Qty 20+

0

15

Cub Cadet 732-04281A

Latch Spring

$7.99

$

In Stock, Qty 14

0

16

Cub Cadet 736-0173

Washer, Flat, .28 x .74 x .063

$3.99

$

In Stock, Qty 10

0

17

Cub Cadet 738-0143

Screw, Shoulder, 3/8-16

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 738-04091A

Screw, Shoulder, 5/16-18

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 747-04494

Hood Latch Rod

$

$

Not available

20

Cub Cadet 747-1323A

Rod,.250 Dia. x 4.55

$10.99

$

In Stock, Qty 5

0

21

Cub Cadet 783-04717A

Latch Pivot Bracket

$

$

Not available

22

Cub Cadet 783-04848

Latch Plate

$21.99

$

In Stock, only 1 left!

0

23

Cub Cadet 783-05028

Hood Pivot Rod
(Superseded to 783-05028-0637)

Variations

Cub Cadet 783-05028-0637

Hood Pivot Bracket - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 783-05029A

Hood Hinge Bracket
(Superseded to 783-05029C-0637)

Variations

Cub Cadet 783-05029A-0637

USE 783-05029C-0637 BRACKET-P - POWDER BLACK (0637)

$62.99

$

Usually ships in 3-6 days

0

$62.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 783-0726E

Pivot Support Bracket, RH

Variations

Cub Cadet 783-0726E-0606

Pivot Support Bracket, RH - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 783-0726E-0498

Pivot Support Bracket, RH - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0726E-0637

BRACKET:PIVOT:SUPT - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0726E-0650

BRACKET:PIVOT:SUPT - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0726E-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0726E-0691

BRACKET:PIVOT:SUPT - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0726E-0716

Pivot Support Bracket, RH - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 783-0726E-4008

BRACKET:PIVOT:SUPT - WINE RED (4008)

$

$

Not available

$

$

26

Cub Cadet 783-0727D

Pivot Support Bracket, LH

Variations

Cub Cadet 783-0727D-0606

BRACKET:PIVOT:SUPT - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 783-0727D-0498

Pivot Support Bracket, LH - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0727D-0637

BRACKET:PIVOT:SUPT - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0727D-0650

BRACKET:PIVOT:SUPT LH - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0727D-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0727D-0691

BRACKET:PIVOT:SUPT - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0727D-0716

Pivot Support Bracket, LH - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 783-0727D-4008

BRACKET:PIVOT:SUPT - WINE RED (4008)

$

$

Not available

$

$

27

Cub Cadet 783-0728B

Pivot Bar Bracket

Variations

Cub Cadet 783-0728B-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0728B-0691

Pivot Bar Bracket - BLACK JACK (0691)

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0728B-4008

Pivot Bar Bracket - WINE RED (4008)

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0728B-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0728B-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0728B-0498

Pivot Bar Bracket - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0728B-0716

Pivot Bar Bracket - CUB YELLOW-99 (0716)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 725-0963

Miniature Lamp, 12V
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

29

Cub Cadet 725-1649

Lamp Socket
(Superseded to 925-1649A)

$10.99

$

In Stock, Qty 20+

0

Cub Cadet 629-04142A

Headlight Harness

Note: Not Shown

$24.99

$

In Stock, only 1 left!

0
