GT 1554 (14AK13BK756) - Cub Cadet 54" Garden Tractor (2005 - 2007) Command Engine Ignition Electrical Parts Diagram

54" Garden Tractor

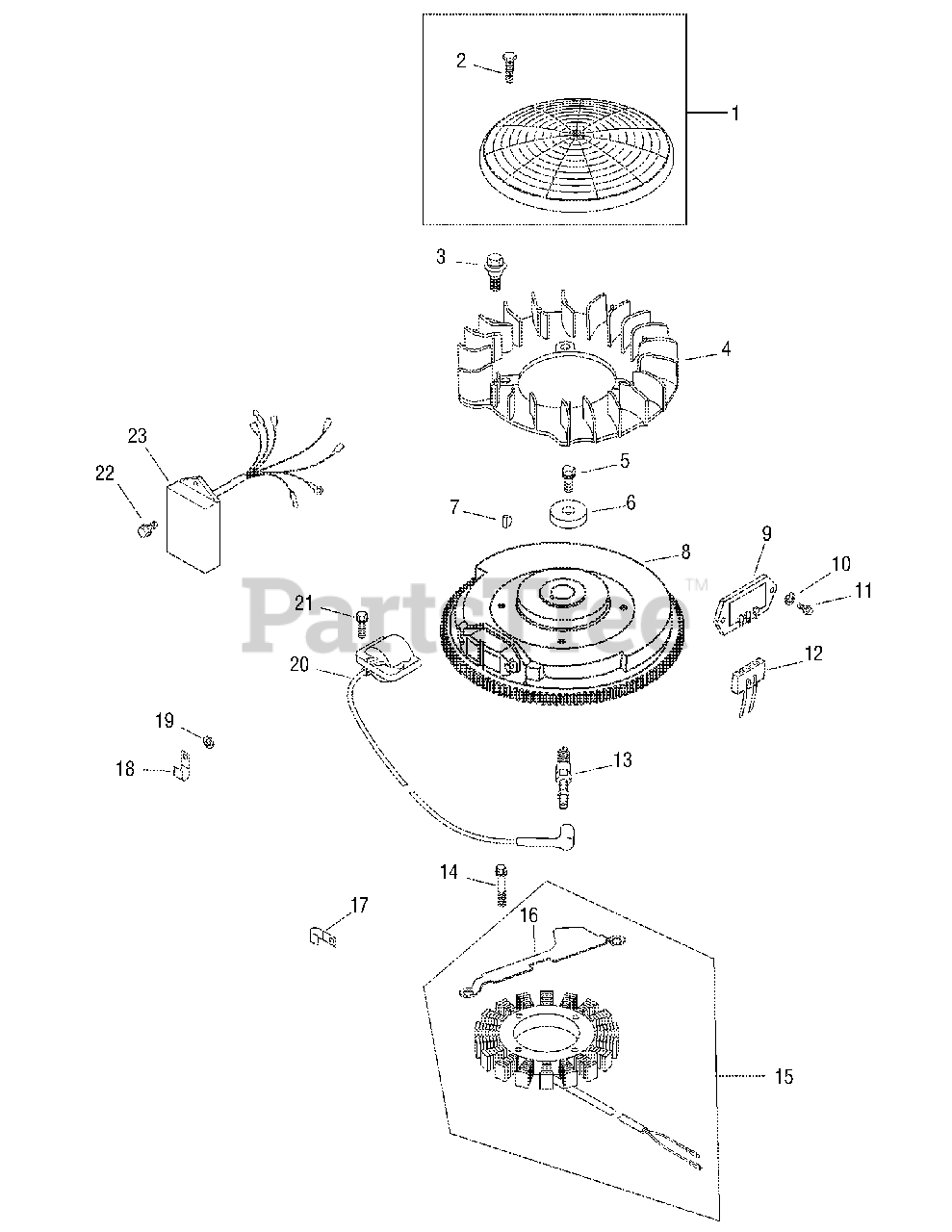

Command Engine Ignition Electrical Parts Diagram

  • Title

1

Cub Cadet KH-24-755-79

Kit, grass screen (Includes 2)

$

$

Not available

2

Cub Cadet KH-25-086-117-S

Screw, sems hex

$2.49

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-25-086-47

Bolt, shoulder

$

$

Not available

4

Cub Cadet KH-24-157-08-S

Fan
(Superseded to KH-24-755-253-S)

$45.99

$

In Stock, Qty 6

0

5

Cub Cadet KH-12-086-14

Screw, hex. flange M10 x 1.5 x 46
(Superseded to KH-25-086-361-S)

$3.49

$

In Stock, only 1 left!

0

6

Cub Cadet KH-12-468-03

Washer, plain 3/8"

$

$

Not available

7

Cub Cadet KH-X-42-15

Key

$

$

Not available

8

Cub Cadet KH-24-025-15-S

Flywheel
(Superseded to KH-24-025-58-S)

$

$

Not available

9

Cub Cadet KH-41-403-09

Rectifier-regulator
(Superseded to KH-25-403-37-S)

$105.99

$

In Stock, only 2 left!

0

10

Cub Cadet KH-X-25-92

Washer, plain 3/16"

$

$

Not available

11

Cub Cadet KH-24-086-18

Screw, phillips hd. 11-16 x 7/8"

$

$

Not available

12

Cub Cadet KH-236602-S

Connector (3 contact)
(Superseded to KH-25-155-41-S)

$7.99

$

In Stock, Qty 11

0

13

Cub Cadet 759-3336

Spark Plug (2)
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

14

Cub Cadet KH-M-548025-S

Screw, hex. cap M5 x 0.8 x 25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

15

Cub Cadet KH-54-755-09-S

Kit, 15 amp stator (Includes 16)
(Superseded to KH-237878)

$

$

Not available

16

Cub Cadet KH-24-126-139-S

Bracket, stator wire

$15.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-47-154-01-S

Clip, cable

$4.99

$

In Stock, Qty 7

0

18

Cub Cadet KH-48-154-02

Clip, cable

$

$

Not available

19

Cub Cadet KH-X-25-63

Washer, plain 1/4"

$

$

Not available

20

Cub Cadet KH-24-584-36-S

Module, ignition

$101.99

$

In Stock, Qty 8

0

21

Cub Cadet KH-M-545020-S

Screw, hex. flange M5 x 0.8 x 20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 17

0

22

Cub Cadet KH-M-448010

Screw, M4 x 0.7 x 10

$

$

Not available

23

Cub Cadet KH-24-584-31-S

Module, speed advance

$

$

Not available

Cub Cadet KH-24-176-81-S

Harness, wiring

Note: NOT ILLUSTRATED

$76.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-126-137-S

Bracket, ground strap
(Superseded to KH-24-518-12-S)

Note: NOT ILLUSTRATED

$4.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-113-24-S

Decal, grass screen
(Superseded to KH-24-113-138-S)

Note: NOT ILLUSTRATED

$

$

Not available

Cub Cadet KH-25-454-03-S

Tie, wire

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-22

Kit, solenoid replacement w/gaskets

Note: NOT ILLUSTRATED

$

$

Not available
