GT 21 (UT-26038) - Green Machine String Trimmer Exhaust System Parts Diagram

String Trimmer

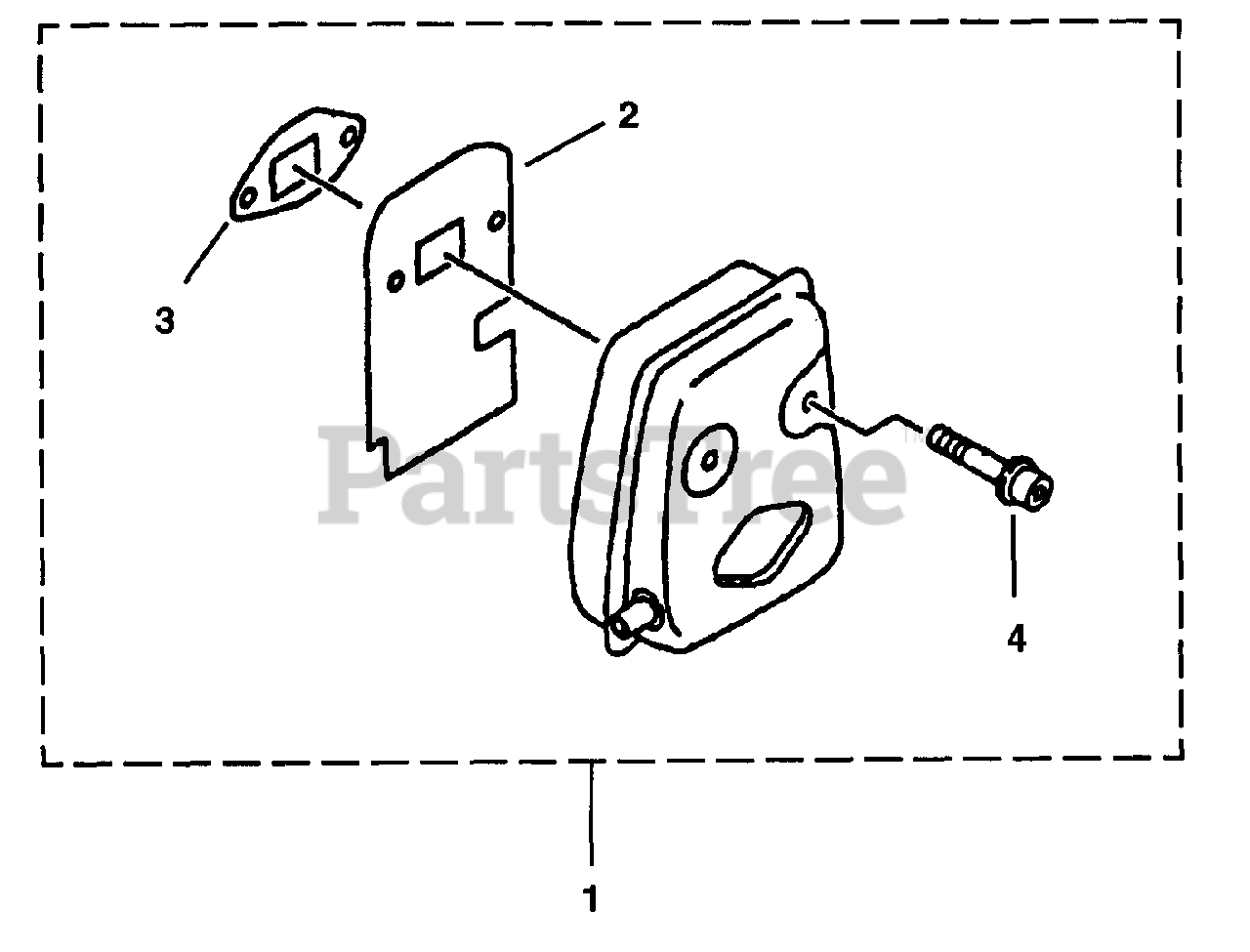

Exhaust System Parts Diagram

  • Title

1

Homelite UP02927

MUFFLER ASSEMBLY

$

$

Not available

2

Homelite PS01409

INSULATOR-Muffler

$

$

Not available

3

Homelite PS01413

GASKET-Muffler

Note: (Torque Specs: 61-69 In/Lbs, 6.9-7.8 Nm; Loctite Required Red 262)

$

$

Not available

4

Homelite PS01410

SCREW-Socket Hd. (M5 x 40 W)

$

$

Not available
