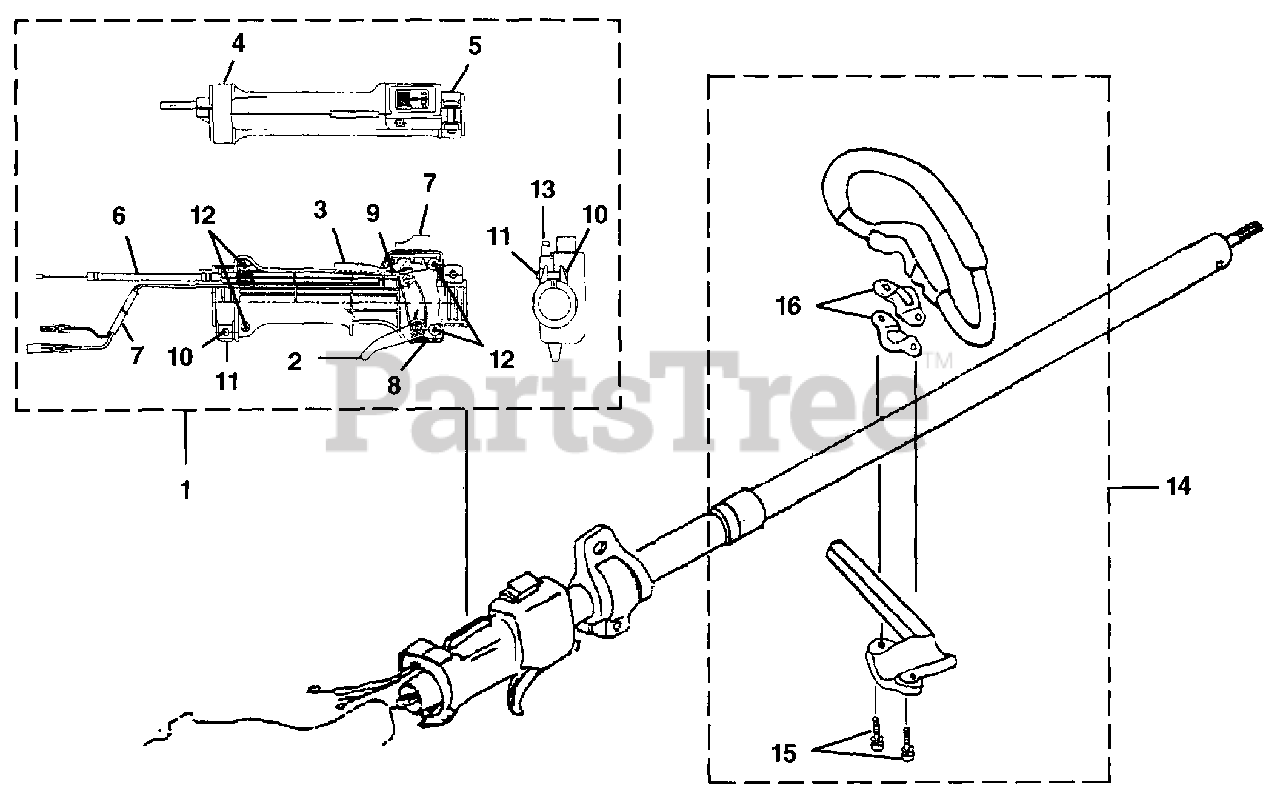

GT 22 (UT-26039) - Green Machine String Trimmer Handle & Throttle Parts Diagram

String Trimmer

Handle & Throttle Parts Diagram

  • Title

1

Homelite UP00467

CONTROL LEVER ASSEMBLY

$

$

Not available

2

Homelite PS00461

THROTTLE-Trigger

$

$

Not available

3

Homelite PS00462

LATCH-Trigger

$

$

Not available

4

Homelite PS00463

CLAMP

$

$

Not available

5

Homelite PS00464

CLAMP

$

$

Not available

6

Homelite PS00561

CABLE- Throttle

$

$

Not available

7

Homelite PS00564

SWITCH ASSEMBLY

$

$

Not available

8

Homelite PS00466

SPRING

$

$

Not available

9

Homelite PS00467

SPRING

$

$

Not available

10

Homelite PS00468

SCREW

$

$

Not available

11

Homelite PS00469

NUT

$

$

Not available

12

Homelite PS00470

SCREW-Tapping

$

$

Not available

13

Homelite PS01032

LOCK-Throttle Start

$

$

Not available

14

Homelite UP00575

HANDLE ASSEMBLY

$

$

Not available

15

Homelite PS00944

BOLT-Socket Head (M6 x 45)

Note: (Torque Specs: 9-17 In/Lbs, 1.0-1.9 Nm)

$

$

Not available

16

Homelite PS00943

CLAMP-Handle Bar

$

$

Not available
