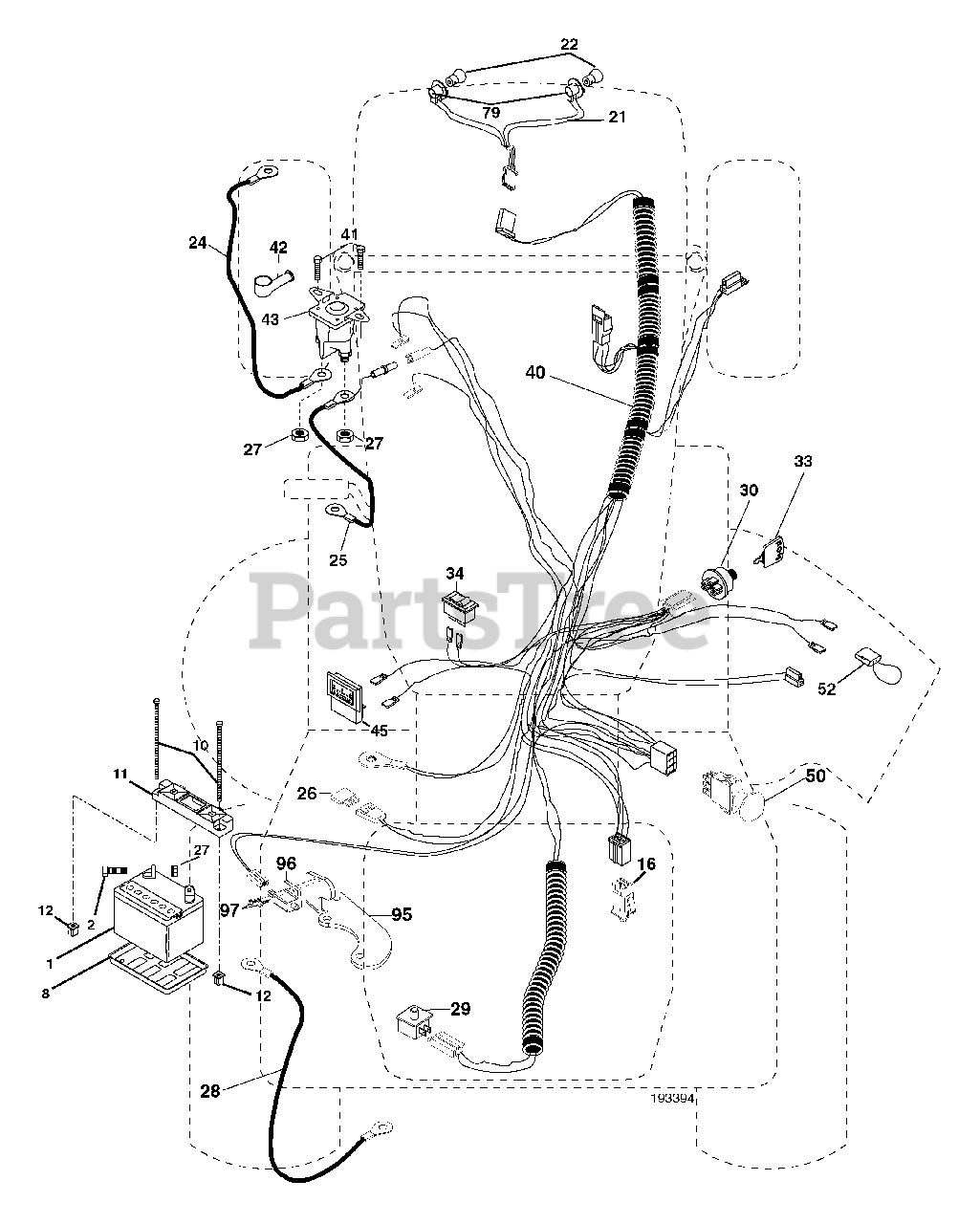

GT 2254 (960250002-00) - Husqvarna 54" Garden Tractor (2005-05) Electrical Parts Diagram

54" Garden Tractor

Electrical Parts Diagram

  • Title

1

Husqvarna 532144927

Battery
(Superseded to 532125603)

$194.99

$

Usually ships in 3-10 days

0

2

Husqvarna 874760412

Bolt Hex Head 1/4-20 x 3/4

$7.49

$

In Stock, Qty 5

0

8

Husqvarna 532124886

Tray, Battery
(Superseded to 532007603)

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532145211

Bolt, Battery Front 1/4-20 x 7.5 Zinc
(Superseded to 532150177)

$

$

Not available

11

Husqvarna 532150109

Holddown Battery Front Mount

$

$

Not available

12

Husqvarna 532145769

Nut, Push Nylon 1.4" Battery Front
(Superseded to 532150177)

$

$

Not available

16

Husqvarna 532176138

Switch Interlock

$15.99

$

In Stock, Qty 20+

0

21

Husqvarna 532175688

Harness Socket Light w/4152J

$44.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532004152

Bulb Light

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 532185464

Cable Starter
(Superseded to 532004799)

$11.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532146149

Cable, Battery

$10.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532108824

Fuse

$6.49

$

Usually ships in 3-10 days

0

27

Husqvarna 873510400

Nut Keps Hex 1/4-20
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532170697

Cable, Ground

$24.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532192749

Switch, Plunger

$21.99

$

In Stock, only 1 left!

0

30

Husqvarna 532193350

Switch, Ign

$13.99

$

In Stock, Qty 20+

0

33

Husqvarna 532140401

Key

$6.49

$

In Stock, Qty 20+

0

34

Husqvarna 532110712

Switch Light/Reset

$8.99

$

In Stock, Qty 11

0

40

Husqvarna 532193394

Harness Ign.

$

$

Not available

41

Husqvarna 817720408

Screw Thd Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

Cover, Terminal Red
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532178861

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, Qty 19

0

45

Husqvarna 532122822

Ammeter

$18.99

$

In Stock, only 1 left!

0

50

Husqvarna 532196112

Switch, PTO
(Superseded to 582107604)

$17.99

$

In Stock, Qty 20+

0

52

Husqvarna 532141940

Protection Wire Loop

$7.49

$

Usually ships in 3-10 days

0

79

Husqvarna 532175242

Bulbholder Asm

$18.99

$

In Stock, only 2 left!

0

95

Husqvarna 532193666

Bracket ROS

$

$

Not available

96

Husqvarna 532104445

Switch Intek

$17.99

$

In Stock, only 1 left!

0

97

Husqvarna 532152927

Screw

$7.49

$

In Stock, Qty 18

0
