GT 2254 (960250002-01) - Husqvarna 54" Garden Tractor (2005-05) Seat Assembly Parts Diagram

54" Garden Tractor

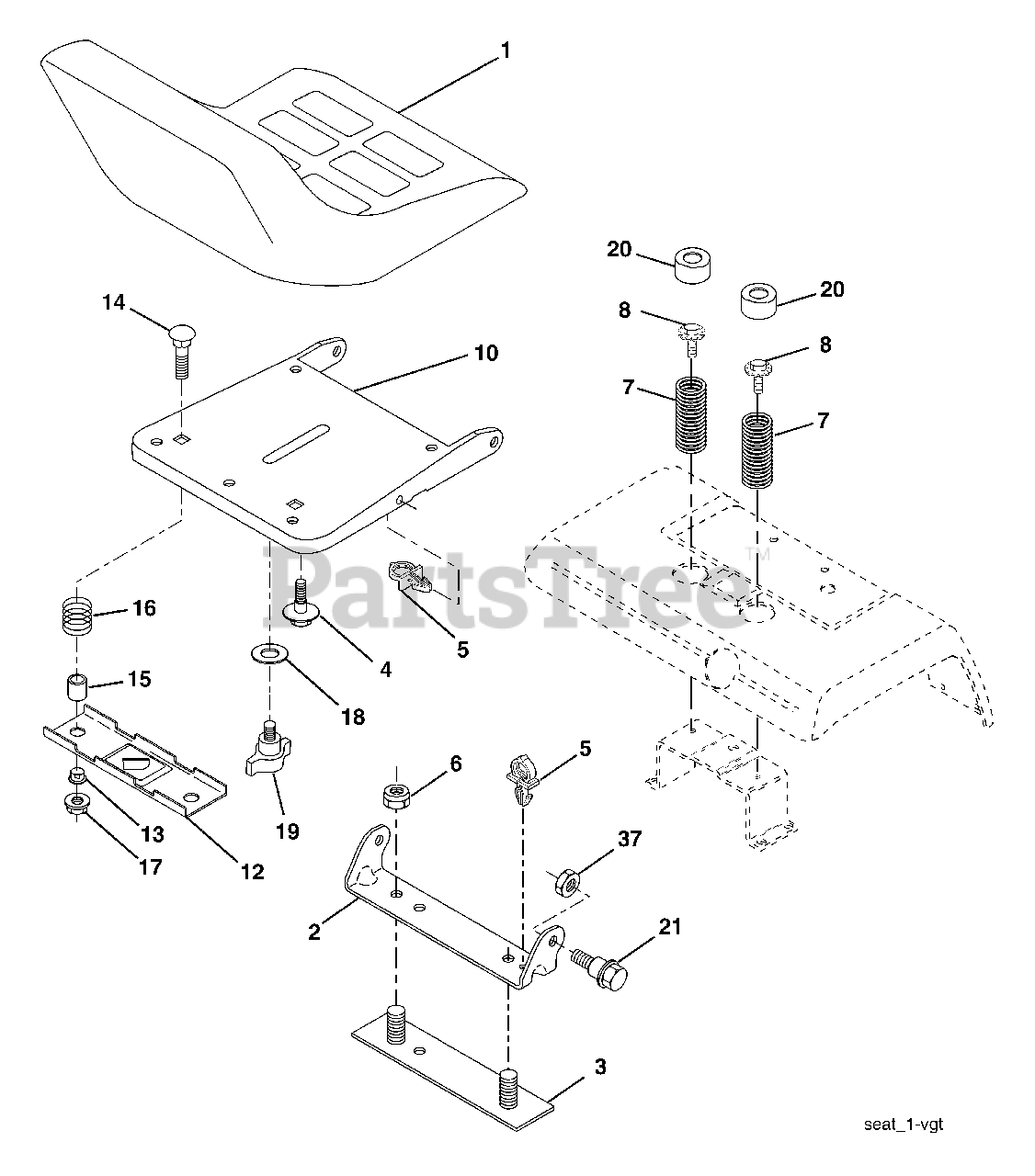

Seat Assembly Parts Diagram

  • Title

1

Husqvarna 532190120

Seat
(Superseded to 532439699)

$206.99

$

In Stock, only 1 left!

0

2

Husqvarna 532140551

Bracket, Pivot Seat

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532140675

Strap Asm Fender

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532127018

Bolt Shoulder 5/16-18 x .62

$7.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532145006

Clip, Push In Hinged

$6.49

$

In Stock, only 1 left!

0

6

Husqvarna 873800600

Nut, Crownlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532124181

Spring, Seat Cprsn
(Superseded to 587613301)

$6.49

$

In Stock, Qty 19

0

8

Husqvarna 532171877

Bolt 5/16-18 Unc x 3/4

$7.49

$

In Stock, Qty 5

0

10

Husqvarna 532182493

Pan, Seat
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532174648

Bracket, Mounting Switch

$8.99

$

In Stock, only 1 left!

0

13

Husqvarna 532121248

Bushing, Snap

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 872050412

Bolt, Carriage 1/4-20 x 1-1/2

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532134300

Spacer, Split

$7.49

$

In Stock, only 1 left!

0

16

Husqvarna 532121250

Spring, Cprsn

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532123976

Nut, Lock 1/4 Lge Flg Gr. 5
(Superseded to 873900400)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 819171912

Washer 17/32 x 1-3/16 x 12 Ga.

$7.49

$

In Stock, only 2 left!

0

19

Husqvarna 532166369

Knob Seat

$10.99

$

In Stock, only 3 left!

0

20

Husqvarna 532124238

Cap, Spring Seat

$

$

Not available

21

Husqvarna 532171852

Bolt, Shoulder 5/16-18
(Superseded to 587907801)

$4.99

$

In Stock, Qty 14

0

22

Husqvarna 873680500

Nut Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 873800500

Nut, Crownlock 5/16-18

$3.99

$

Usually ships in 3-10 days

0
