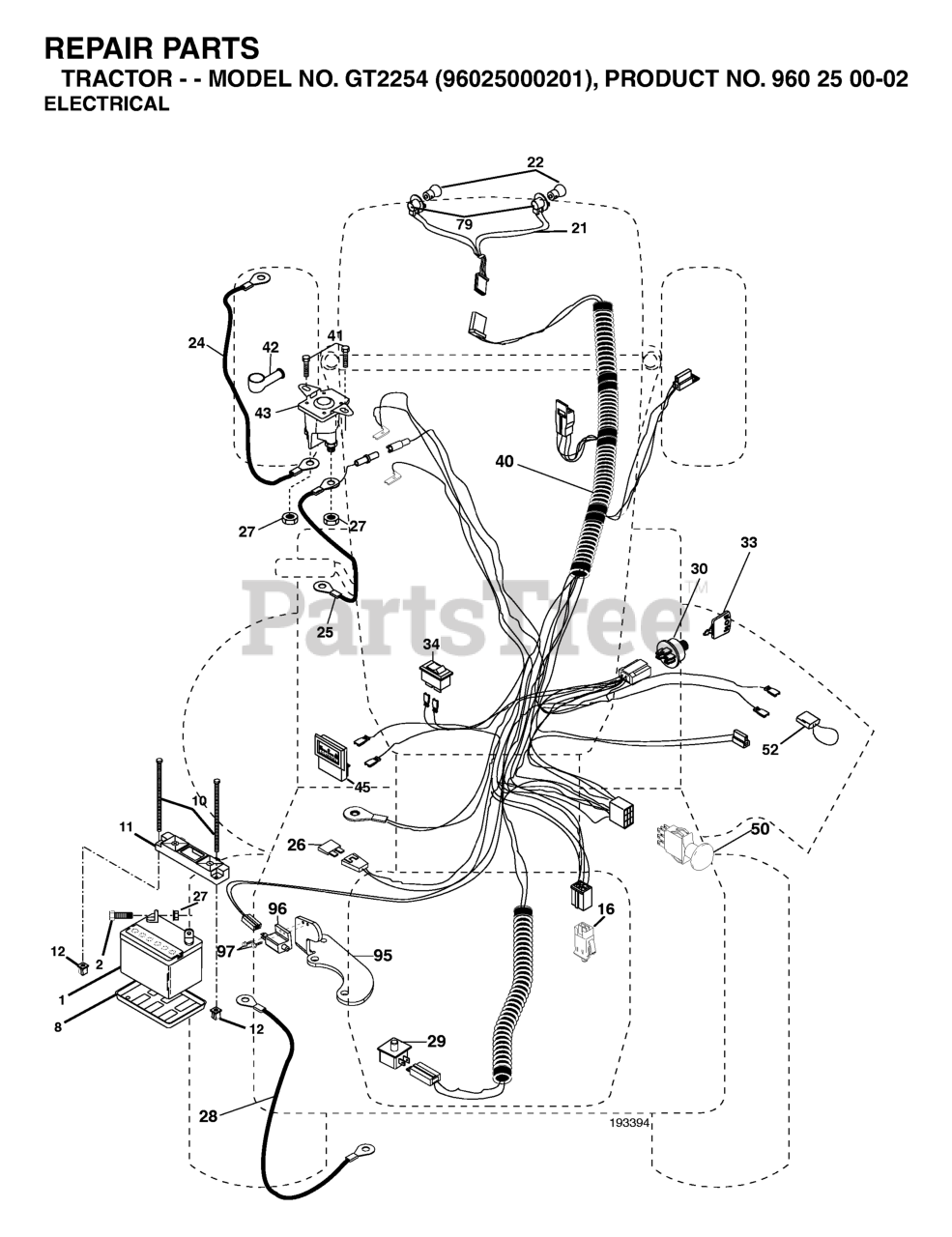

GT 2254 (960250002-01) - Husqvarna 54" Garden Tractor (2005-06) ELECTRICAL Parts Diagram

54" Garden Tractor

ELECTRICAL Parts Diagram

  • Title

97

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, Qty 18

0

40

Husqvarna 532193394

HARNESS.IGN.REG.RECT

$

$

Not available

96

Husqvarna 532104445

SWITCH-INTER. GT

$17.99

$

In Stock, only 1 left!

0

28

Husqvarna 532170697

CABLE, GROUND

$24.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532146149

CABLE, BATTERY

$10.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532122822

AMMETER

$18.99

$

In Stock, only 1 left!

0

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$15.99

$

In Stock, Qty 20+

0

22

Husqvarna 532004152

LIGHTBULB

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532110712

SWITCH LT

$8.99

$

In Stock, Qty 10

0

24

Husqvarna 532185464

CABLE.STARTER.6GA.22"RED
(Superseded to 532004799)

$11.99

$

Usually ships in 3-10 days

0

27

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 532108824

FUSE HYT

$6.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532178861

SOLENOID
(Superseded to 532146154)

$24.99

$

In Stock, Qty 19

0

33

Husqvarna 532140401

KEY MLD GEN DELTA

$6.49

$

In Stock, Qty 20+

0

12

Husqvarna 532145769

NUT, PUSH NYLON 1/4" BATTERY
(Superseded to 532150177)

$

$

Not available

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, Qty 5

0

11

Husqvarna 532150109

BATTERY HOLDDOWN FRONT MOUNT

$

$

Not available

8

Husqvarna 532124886

BATTERY TRAY T
(Superseded to 532007603)

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532175688

HARNESS.W/LIGHT SOCKET

$44.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

95

Husqvarna 532193666

BRKT.ROS.6SP

$

$

Not available

52

Husqvarna 532141940

WIRE PROTECTION LOOP

$7.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532145211

BOLT 1/4-20 X 7.5
(Superseded to 532150177)

$

$

Not available

29

Husqvarna 532192749

SWITCH.SEAT.DP W/RAMPS

$21.99

$

In Stock, only 2 left!

0

50

Husqvarna 532196112

RP.SWTICH.PTO.8.TERMINAL
(Superseded to 582107604)

$17.99

$

In Stock, Qty 20+

0

30

Husqvarna 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$13.99

$

In Stock, Qty 20+

0

41

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532175242

BULB HOLDER ASM.

$18.99

$

In Stock, only 2 left!

0

1

Husqvarna 532144927

BATTERY 12V .35 AMP
(Superseded to 532125603)

$194.99

$

Usually ships in 3-10 days

0
