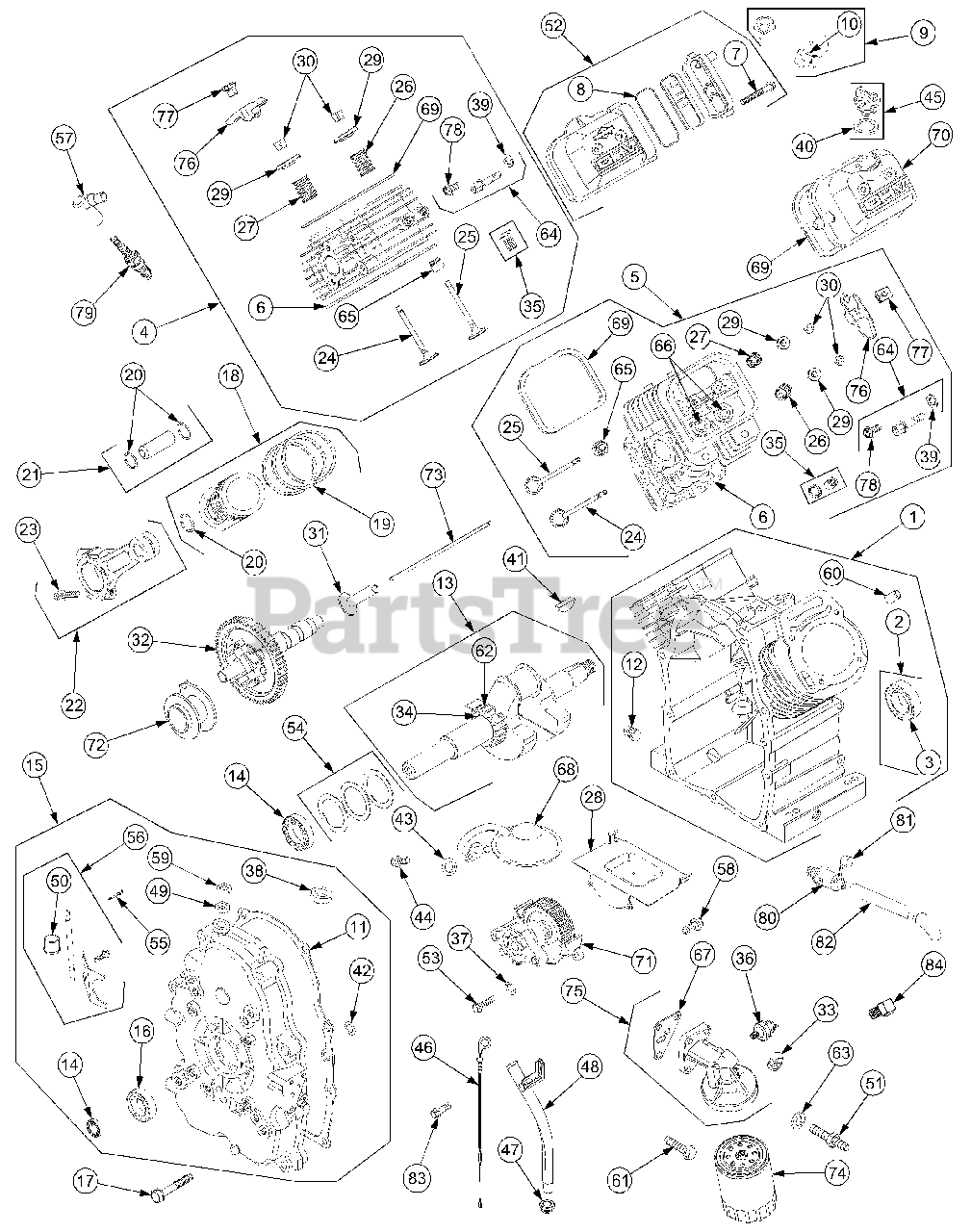

GT 2521-48 (13A-278M710) - Cub Cadet 48" Garden Tractor Engine Assembly Parts Diagram

48" Garden Tractor

Engine Assembly Parts Diagram

  • Title

1

Cub Cadet BS-808650

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-808534

Kit, Bushing/Seal (Magneto Side)

$20.99

$

In Stock, only 3 left!

0

3

Cub Cadet BS-805101

Seal, Oil
(Superseded to BS-805101S)

$5.99

$

In Stock, Qty 7

0

4

Cub Cadet BS-808529

Head, Cylinder (#1)
(Superseded to BS-845713)

$235.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-806865

Screw

$2.99

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-808530

Head, Cylinder (#2)
(Superseded to BS-845714)

$

$

Not available

Cub Cadet BS-806865

Screw

$2.99

$

Usually ships in 2-12 days

0

6

Cub Cadet BS-806377

Gasket, Cylinder Head
(Superseded to BS-842622)

$31.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-806421

Screw

$3.49

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-806466

Seal, O-ring

$10.99

$

In Stock, only 2 left!

0

9

Cub Cadet BS-806379

Tube, Breather

$15.99

$

In Stock, only 1 left!

0

10

Cub Cadet BS-691145

Clamp, Hose

$3.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-691684

Gasket, Crankcase
(Superseded to BS-845254)

$45.99

$

In Stock, only 1 left!

0

12

Cub Cadet BS-690946

Plug, Oil Drain

$5.99

$

In Stock, Qty 17

0

13

Cub Cadet BS-809844

Crankshaft

$

$

Currently unavailable

14

Cub Cadet BS-690752

Bearing, Ball
(Superseded to BS-843827)

$36.99

$

In Stock, only 1 left!

0

15

Cub Cadet BS-808849

Cover, Crankcase

$

$

Not available

16

Cub Cadet BS-805049

Seal, Oil (PTO Side)
(Superseded to BS-805049S)

$12.99

$

In Stock, Qty 10

0

17

Cub Cadet BS-692540

Screw (Crankcase Cover)

$

$

Not available

18

Cub Cadet BS-808527

Piston Assembly

$

$

Not available

Cub Cadet BS-808652

Piston Assembly, .020 O.S.

$

$

Not available

19

Cub Cadet BS-808528

Ring Set
(Superseded to BS-843806)

$53.99

$

In Stock, only 3 left!

0

Cub Cadet BS-808661

Ring Set, .020 O.S.
(Superseded to BS-843824)

$55.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-806378

Lock, Piston Pin

$4.99

$

Usually ships in 2-12 days

0

21

Cub Cadet BS-808526

Pin, Piston

$16.99

$

Usually ships in 2-12 days

0

22

Cub Cadet BS-808646

Rod, Connecting
(Superseded to BS-844009)

$136.99

$

Usually ships in 2-12 days

0

23

Cub Cadet BS-690698

Screw, Connecting Rod

$7.49

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-806419

Valve, Exhaust

$

$

Not available

25

Cub Cadet BS-806420

Valve, Intake
(Superseded to BS-843751)

$29.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-692084

Spring, Valve (Intake)

$6.49

$

In Stock, only 2 left!

0

27

Cub Cadet BS-692084

Spring, Valve (Exhaust)

$6.49

$

In Stock, only 2 left!

0

28

Cub Cadet BS-690745

Deflector

$6.49

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-692058

Retainer, Valve

$5.49

$

Usually ships in 2-12 days

0

30

Cub Cadet BS-807683

Keeper, Valve
(Superseded to BS-844788)

$6.99

$

In Stock, only 2 left!

0

31

Cub Cadet BS-690977

Tappet, Valve

$7.99

$

In Stock, only 3 left!

0

32

Cub Cadet BS-690927

Camshaft

$184.99

$

Usually ships in 2-12 days

0

33

Cub Cadet BS-690283

Plug, Oil
(Superseded to BS-794903)

$5.49

$

In Stock, only 1 left!

0

34

Cub Cadet BS-691639

Key, Timing

$4.49

$

In Stock, only 3 left!

0

35

Cub Cadet BS-807623

Adjuster, Rocker Arm

$11.99

$

In Stock, only 1 left!

0

36

Cub Cadet BS-690323

Switch, Oil Pressure

$4.49

$

In Stock, Qty 7

0

37

Cub Cadet BS-690681

Seal, Oil Ring (Oil Pump)

$5.99

$

In Stock, Qty 7

0

38

Cub Cadet BS-690704

Washer, Sealing

$5.99

$

In Stock, only 4 left!

0

39

Cub Cadet BS-807085

Washer, Sealing

$3.99

$

In Stock, Qty 10

0

40

Cub Cadet BS-691312

Gasket, Oil Fill
(Superseded to BS-809500)

$10.99

$

In Stock, only 1 left!

0

41

Cub Cadet BS-808095

Key, Woodruff

$13.99

$

In Stock, only 1 left!

0

42

Cub Cadet BS-692154

Seal, O-Ring

$5.99

$

In Stock, only 1 left!

0

43

Cub Cadet BS-690690

Seal, O-Ring

$5.99

$

In Stock, only 1 left!

0

44

Cub Cadet BS-807084

Screw

$3.49

$

In Stock, Qty 13

0

45

Cub Cadet BS-491832

Plug, Oil Fill
(Superseded to BS-809500)

$10.99

$

In Stock, only 1 left!

0

46

Cub Cadet BS-693175

Dipstick

$26.99

$

In Stock, only 1 left!

0

47

Cub Cadet BS-693172

Seal, Dipstick Tube

$5.49

$

In Stock, only 4 left!

0

48

Cub Cadet BS-693173

Tube, Dipstick

$24.99

$

Usually ships in 2-12 days

0

49

Cub Cadet BS-690701

Bushing, Governor Shaft

$7.99

$

In Stock, only 1 left!

0

50

Cub Cadet BS-806686

Bushing, Governor Shaft

$8.49

$

Usually ships in 2-12 days

0

51

Cub Cadet BS-690682

Stud, Oil Filter Adapter

$4.49

$

Usually ships in 2-12 days

0

52

Cub Cadet BS-808648

Cover, Rocker Arm
(Superseded to BS-843750)

$81.99

$

In Stock, only 1 left!

0

53

Cub Cadet BS-691492

Screw

$3.99

$

Usually ships in 2-12 days

0

54

Cub Cadet BS-807625

Shim, End Play

$19.99

$

Usually ships in 2-12 days

0

55

Cub Cadet BS-691550

Retainer, Governor Shaft

$4.99

$

Usually ships in 2-12 days

0

56

Cub Cadet BS-806685

Shaft, Governor

$30.99

$

Usually ships in 2-12 days

0

57

Cub Cadet BS-692076

Boot, Spark Plug

$5.49

$

In Stock, Qty 8

0

58

Cub Cadet BS-692539

Screw

$3.49

$

In Stock, only 2 left!

0

59

Cub Cadet BS-690680

Seal, Governor Shaft
(Superseded to BS-842826)

$7.99

$

Usually ships in 2-12 days

0

60

Cub Cadet BS-806469

Pin, Locating

$5.99

$

In Stock, only 2 left!

0

61

Cub Cadet BS-690679

Screw

$3.49

$

Usually ships in 2-12 days

0

62

Cub Cadet BS-691530

Gear, Timing

$19.99

$

In Stock, only 1 left!

0

63

Cub Cadet BS-690706

Washer

$3.99

$

In Stock, only 2 left!

0

64

Cub Cadet BS-809157

Stud, Rocker Arm

$6.99

$

In Stock, Qty 18

0

65

Cub Cadet BS-691963

Seal, Valve

$10.99

$

Usually ships in 2-12 days

0

66

Cub Cadet BS-692057

Bushing, Valve Guide

$

$

Not available

67

Cub Cadet BS-692063

Gasket, Oil Adapter

$4.49

$

In Stock, only 3 left!

0

68

Cub Cadet BS-690900

Screen, Oil Pump

$29.99

$

Usually ships in 2-12 days

0

69

Cub Cadet BS-806039

Gasket, Rocker Cover
(Superseded to BS-806039S)

$7.49

$

In Stock, Qty 20+

0

70

Cub Cadet BS-690910

Cover, Rocker Arm

$45.99

$

In Stock, only 1 left!

0

71

Cub Cadet BS-693185

Pump, Oil

$71.99

$

Usually ships in 2-12 days

0

72

Cub Cadet BS-690689

Spool, Governor

$22.99

$

In Stock, only 1 left!

0

73

Cub Cadet BS-691836

Rod, Push (Steel)

$12.99

$

In Stock, Qty 19

0

Cub Cadet BS-691758

Rod, Push (Aluminum)

$11.99

$

In Stock, only 4 left!

0

74

Cub Cadet BS-492932

Filter, Oil
(Superseded to BS-492932S)

$12.99

$

In Stock, Qty 20+

0

75

Cub Cadet BS-808235

Adapter, Oil Filter

$78.99

$

Usually ships in 2-12 days

0

76

Cub Cadet BS-807323

Arm, Rocker

$12.99

$

In Stock, Qty 9

0

77

Cub Cadet BS-690973

Pivot, Rocker Arm

$

$

Not available

78

Cub Cadet BS-807084

Screw, Rocker Cover

$3.49

$

In Stock, Qty 13

0

79

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

80

Cub Cadet 751-3140

Drain, Oil
(Superseded to 951-10517A)

$22.99

$

In Stock, Qty 20+

0

81

Cub Cadet 751-3142

Cap

$4.49

$

In Stock, Qty 7

0

82

Cub Cadet 751-3141-12

Hose, Oil Drain
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 20+

0

83

Cub Cadet BS-692062

Screw, Dipstick Tube

$3.49

$

In Stock, only 1 left!

0

84

Cub Cadet BS-806667

Connector, Filter Adapter

$11.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-380447-0079

Engine, Complete Replacement
(Superseded to BS-386447-0079)

$

$

Not available

Cub Cadet BS-695390

Short Block

$

$

Not available
