GT 2542 (14A-2D2G710) - Cub Cadet 42" Garden Tractor (2008 & Before) Fuel System Parts Diagram

42" Garden Tractor

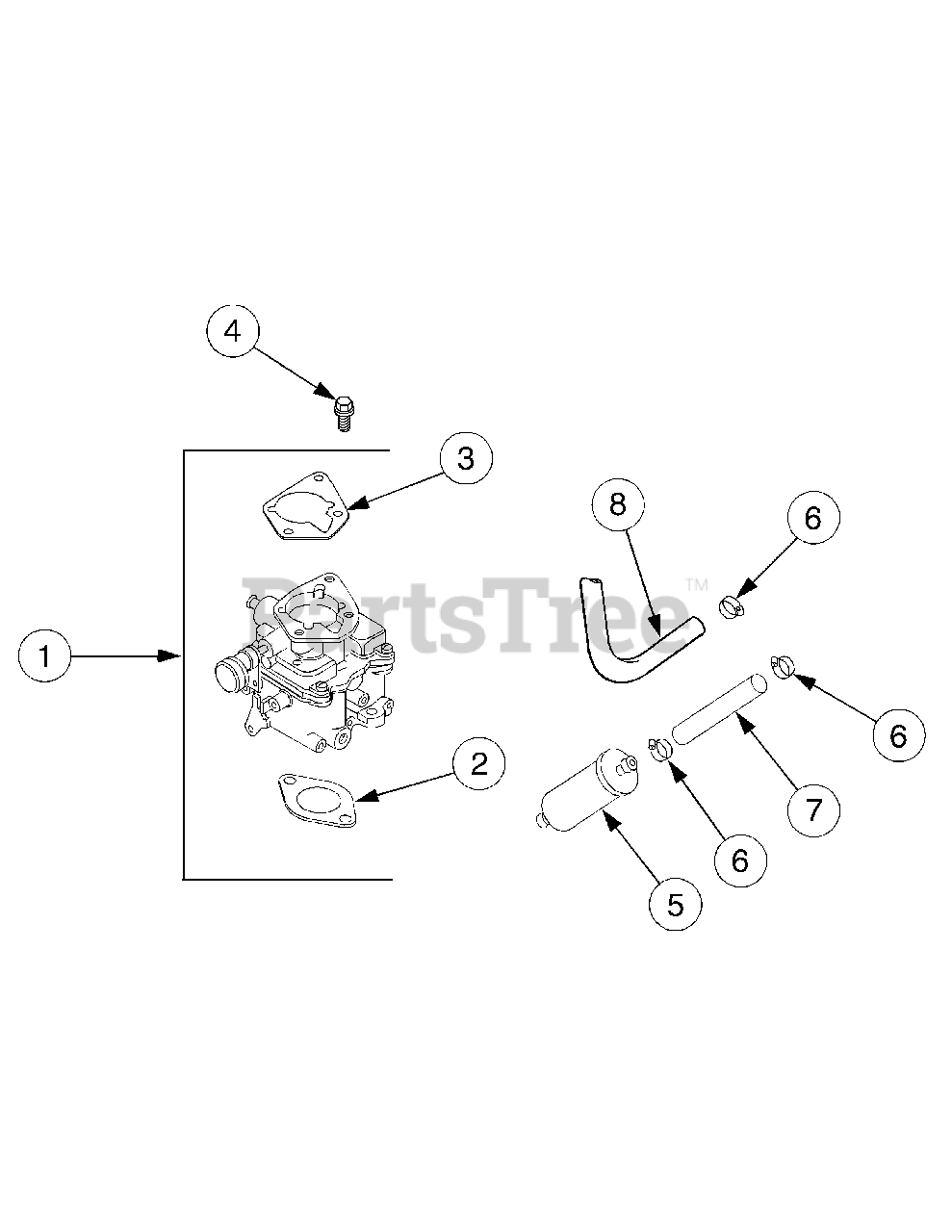

Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-24-853-32

Kit, Carburetor w/Gasket (Includes 2,3)
(Superseded to KH-24-853-309-S)

$316.99

$

Usually ships in 3-6 days

0

2

Cub Cadet KH-24-041-06

Gasket, Air Cleaner Base

$2.49

$

In Stock, Qty 9

0

3

Cub Cadet KH-24-041-17

Gasket, Carburetor

Note: CH20S-64742

$

$

Not available

3

Cub Cadet KH-24-041-53-S

Gasket, Carburetor

Note: CH20S-64748

$3.49

$

In Stock, Qty 7

0

4

Cub Cadet KH-M-651025-S

Screw, Hex Flange, M6 x 1.0 x 25
(Superseded to KH-25-086-124-S)

Note: CH20S-64742

$2.49

$

In Stock, only 3 left!

0

4

Cub Cadet KH-25-086-124-S

Screw, Hex Flange, M6 x 1.0 x 25

Note: CH20S-64748

$2.49

$

In Stock, only 3 left!

0

5

Cub Cadet KH-24-050-10-S

Filter, Fuel
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

6

Cub Cadet KH-25-237-14-S

Clamp, Hose
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, Qty 6

0

7

Cub Cadet KH-52-353-20

Line, Fuel 10" (Carb to Filter)
(Superseded to 751-10349-16)

$18.99

$

In Stock, Qty 13

0

8

Cub Cadet KH-24-353-12

Line, Fuel 11" (Carb to Pump)

$

$

Not available

Cub Cadet KH-24-518-24-S

Lead, Ground (not illustrated)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-01

Kit, Solenoid (not illustrated)

$

$

Not available

Cub Cadet KH-24-757-02

Kit, Float Repair (not illustrated)
(Superseded to KH-24-757-02-S)

$133.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-03

Kit, Carburetor Repair (not illustrated)
(Superseded to KH-24-757-03-S)

$111.99

$

In Stock, Qty 6

0

Cub Cadet KH-24-757-07

Kit, Choke Repair (not illustrated)

$

$

Not available

Cub Cadet KH-24-755-125-S

Kit, High Altitude (not illustrated)

$55.99

$

Usually ships in 2-5 days

0
