GT 2544 (14A-2C7L710) - Cub Cadet 44" Garden Tractor (2005 - 2008) Fender and Running Board Parts Diagram

44" Garden Tractor

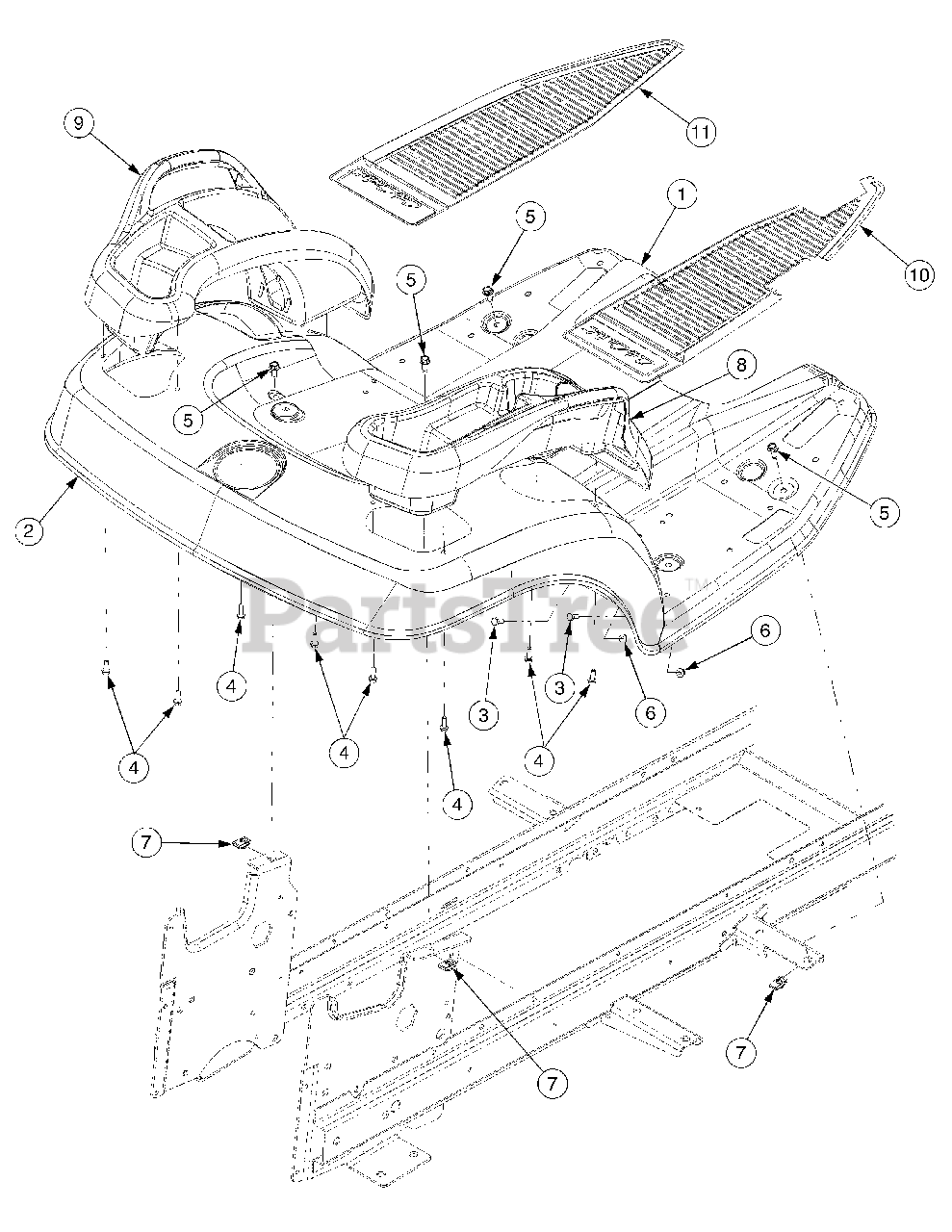

Fender and Running Board Parts Diagram

  • Title

1

Cub Cadet 703-05821

Running Board w/Graphic

Variations

Cub Cadet 703-05821-0716

BOARD-RUNNING - CUB YELLOW-99 (0716)

$240.99

$

In Stock, only 1 left!

0

Cub Cadet 703-05821-4021

BOARD-RUNNING - CUB YELLOW 2 (4021)

$240.99

$

In Stock, only 1 left!

0

Cub Cadet 703-05821-4015

BOARD-RUNNING - FIRE RED (4015)

$

$

Not available

$208.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 777S30170

Graphic, Warning

Note: not shown

$23.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 777S32494

Graphic, Danger

Note: not shown

$

$

Not available

1

Cub Cadet 777I22604

Graphic, Maintenance

Note: not shown

$

$

Not available

1

Cub Cadet 777D10633

Graphic, Cyclo Cut

Note: not shown

$

$

Not available

2

Cub Cadet 703-05860

Fender
(Superseded to 903-05860)

Variations

Cub Cadet 703-05860-0716

USE 903-05860-0716 FENDER-REA - CUB YELLOW-99 (0716)

$440.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05860-4021

USE 903-05860-4021 FENDER-REA - CUB YELLOW 2 (4021)

$440.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05860-4015

USE 903-05860-4015 FENDER-REA - FIRE RED (4015)

$

$

Not available

$356.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 777D08321

Graphic,Shaft Drive

Note: not shown, (S.N. K016 and Before)

$

$

Not available

2

Cub Cadet 777D10279

Graphic, Cub Cadet

Note: not shown, (S.N. K016 and After)

$

$

Not available

3

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0895

Screw, 1/4-15 x.750

$5.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0602

Screw, Hex Wash Hd Tapp 5/16-18 x 1.0

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 712-04064

Nut, Hex Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 726-0211

U-Nut, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 731-05488

Cover, Fender RH
(Superseded to 931-05488)

$84.99

$

In Stock, only 1 left!

0

9

Cub Cadet 631-04206A

Cover, Fender LH
(Superseded to 931-04206A)

$

$

Not available

10

Cub Cadet 735-3046A

Pad, RH Foot

$49.99

$

In Stock, only 2 left!

0

11

Cub Cadet 735-3047

Pad, LH Foot

$50.99

$

In Stock, only 1 left!

0
