GT 2544 (14A-2C7L710) - Cub Cadet 44" Garden Tractor (2005 - 2008) Implement Lift Handle Mfg Date K016 & After Parts Diagram

44" Garden Tractor

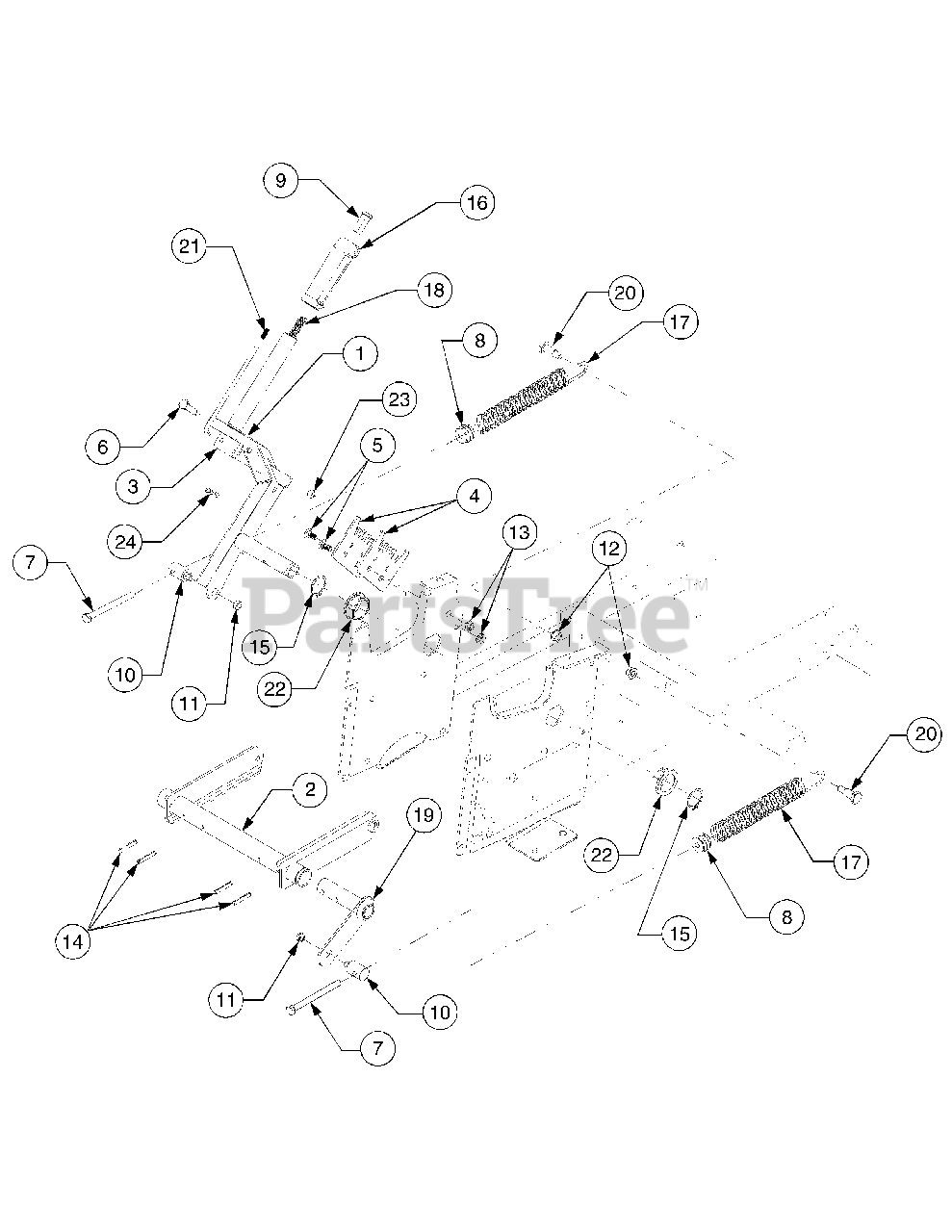

Implement Lift Handle Mfg Date K016 & After Parts Diagram

  • Title

1

Cub Cadet 603-04141

Handle Assembly, Lift

Variations

Cub Cadet 603-04141-0637

Lift Handle Assembly - POWDER BLACK (0637)

$159.99

$

In Stock, only 1 left!

0

Cub Cadet 603-04141-0716

Lift Handle Assembly - CUB YELLOW-99 (0716)

$159.99

$

In Stock, only 1 left!

0

$159.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-04140A

Shaft Assembly, Lift
(Superseded to 603-04140A-0637)

Variations

Cub Cadet 603-04140A-0637

Lift Shaft Assembly - POWDER BLACK (0637)

$149.99

$

Usually ships in 3-6 days

0

$149.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-05247

Fork, Lift
(Superseded to 703-05247-0637)

Variations

Cub Cadet 703-05247-0637

Fork Lift Index - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 703-2239A

Bracket, Lift Index
(Superseded to 703-2239A-0637)

Variations

Cub Cadet 703-2239A-0637

Lift Index Bracket - POWDER BLACK (0637)

$12.99

$

In Stock, Qty 15

0

$12.99

$

In Stock, Qty 15

0

5

Cub Cadet 710-0451

Bolt, Carriage, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 738-0560

Screw, Shoulder, .374 x 1.375
(Superseded to 938-0560)

$9.99

$

In Stock, only 2 left!

0

7

Cub Cadet 710-3279

Screw, Hex Cap, 3/8-16 x 4.25 GR5

$7.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 711-0635

Insert, Spring

$41.99

$

In Stock, only 1 left!

0

9

Cub Cadet 711-0642A

Button, Handle

$7.49

$

In Stock, Qty 20+

0

10

Cub Cadet 711-3350

Ferrule, Adjustment

$

$

Not available

11

Cub Cadet 712-0262

Nut, Hex Center Lock, Jam, 3/8-24

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04063

Nut, Hex Flanged Top Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 715-0114

Pin, Spiral Spring, 1/4 Dia x 1.5

$8.49

$

In Stock, Qty 9

0

15

Cub Cadet 716-0116

Ring, Snap, 1.25 Dia Shaft

$4.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 731-3158

Grip, Lift Handle

$16.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 732-3093

Spring, Extension

$57.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 732-3097

Spring, Compression

$13.99

$

In Stock, Qty 6

0

19

Cub Cadet 603-04139

Arm, Lift Assist RH
(Superseded to 603-04139-0637)

Variations

Cub Cadet 603-04139-0637

ARM-LIFT ASSIST - POWDER BLACK (0637)

$119.99

$

Usually ships in 3-6 days

0

$119.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 738-0145

Bolt, Shoulder

$6.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 747-3175A

Rod, Index

$

$

Not available

22

Cub Cadet 748-3051

Bearing, Hex Flange, 1.25 ID
(Superseded to 948-3051A)

$24.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 712-04064

Nut, Hex Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 714-0104

Pin, Internal Cotter

$3.99

$

In Stock, Qty 20+

0
