GT 2544 (14A-2E7L010) - Cub Cadet 44" Garden Tractor (2009 & After) Mower Deck 44 Inch Parts Diagram

44" Garden Tractor

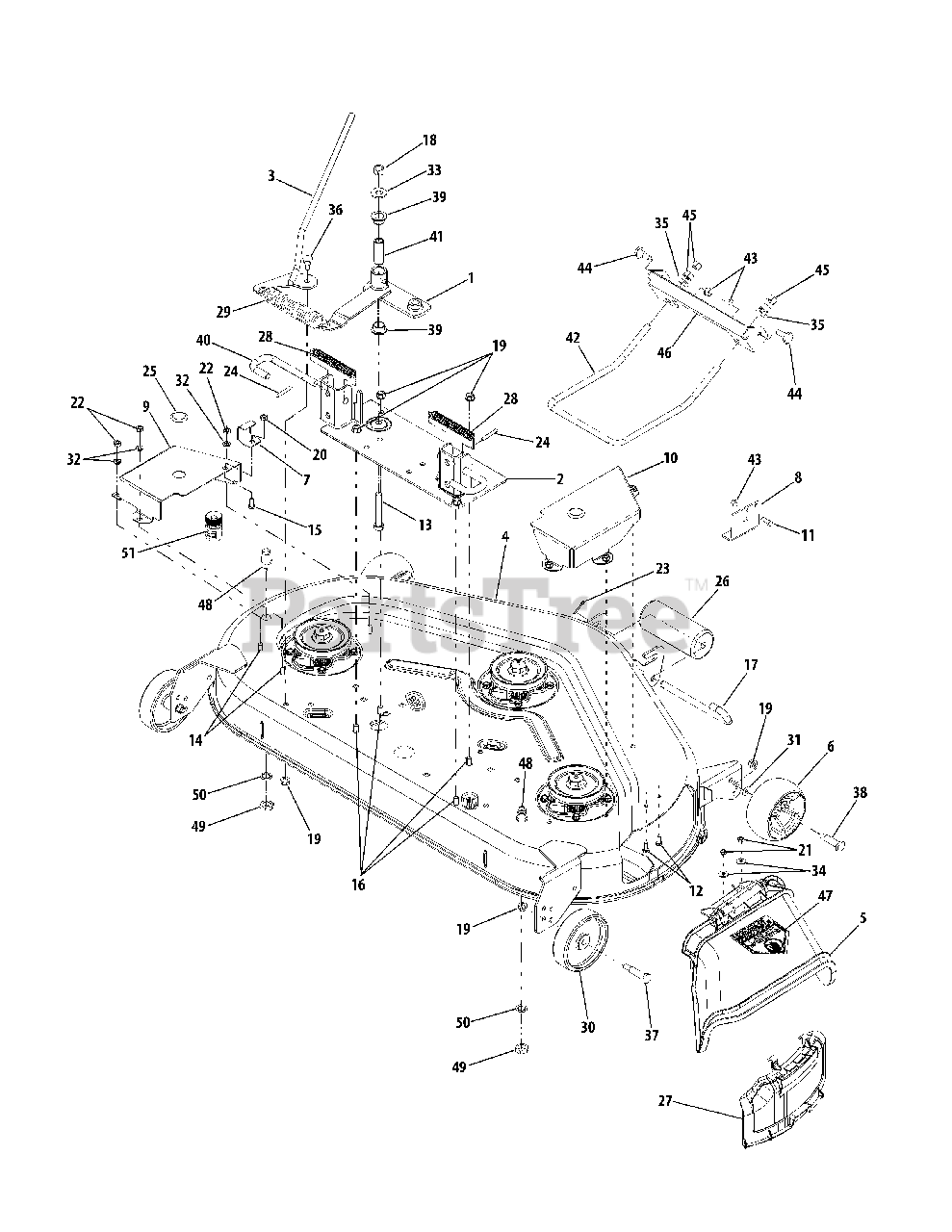

Mower Deck 44 Inch Parts Diagram

  • Title

1

Cub Cadet 603-0857

Idler Assembly
(Superseded to 903-0857)

$122.99

$

In Stock, only 1 left!

0

2

Cub Cadet 603-0183A-4021

Plate Assy, Mounting

$174.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-04113-4021

Handle, Tension
(Superseded to 603-04113-0637)

$66.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 903-04269A-4021

Deck Housing Assembly

$

$

Not available

4

Cub Cadet 777S30014

Graphic, Warning

Note: Not shown

$8.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 777S30018

Graphic, Deck Safety

Note: Not shown

$7.99

$

In Stock, only 1 left!

0

4

Cub Cadet 777S30503

Graphic, Deck Safety

Note: Not shown

$10.99

$

In Stock, only 4 left!

0

4

Cub Cadet 777I20847

Graphic, Belt Routing

Note: Not shown

$

$

Not available

4

Cub Cadet 777D12241

Graphic, 44" Cut

Note: Not shown

$

$

Not available

4

Cub Cadet 777D10624

Graphic, Deck Wash

Note: Not shown

$3.49

$

In Stock, Qty 7

0

5

Cub Cadet 631-0094A

Chute Assembly
(Superseded to 631-0094B)

$74.99

$

In Stock, only 4 left!

0

5

Cub Cadet 911-0792

Pin, Hinge, .25 Dia x 6.75

Note: Not shown

$4.49

$

In Stock, only 2 left!

0

5

Cub Cadet 732-0602A

Spring, Torsion

Note: Not shown

$11.99

$

In Stock, Qty 5

0

5

Cub Cadet 703-3539

Bracket, Mounting

Note: Not shown

$17.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 926-0106

Cap, Speed
(Superseded to 726-0106)

Note: Not shown

$

$

Not available

6

Cub Cadet 734-04155

Wheel, Deck Ball

$19.99

$

In Stock, Qty 20+

0

7

Cub Cadet 703-2559-4021

Bracket, Stop

$26.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-05902-0637

Bracket, Up-Stop

$26.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-3742-4021

Belt Cover, LH
(Superseded to 703-3742-0637)

$53.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-3743-4021

Belt Cover, RH

$

$

Not available

11

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 x1.0 Gr5

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-1010

Screw, Hex Cap, 1/2-20 x 3.0

$

$

Not available

14

Cub Cadet 710-1611B

Screw, Self Tap, 5/16-18 x .75

$6.49

$

In Stock, only 2 left!

0

15

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 710-3178

Bolt, Carriage, 3/8-16 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 911-3314

Pin, Roller, 1/2 Dia x 7.31
(Superseded to 711-3314A)

$23.99

$

In Stock, Qty 20+

0

18

Cub Cadet 912-0239

Nut, Hex Lock, 1/2-20
(Superseded to 712-0239)

$

$

Not available

19

Cub Cadet 912-0431

Nut, Flange Lock, 3/8-16

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

21

Cub Cadet 712-3006

Nut, Hex, 1/4-20 GR5

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 912-3010

Nut, Hex, 5/16-18, GR5
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 914-0115

Pin, Cotter, 1/8 Dia x 1
(Superseded to 714-0115)

$3.49

$

In Stock, Qty 20+

0

24

Cub Cadet 715-3003

Pin, Spiral Spring, 3/16 Dia x .75

$6.49

$

In Stock, Qty 11

0

25

Cub Cadet 726-3045

Button Plug
(Superseded to 726-3045A)

$4.49

$

In Stock, Qty 11

0

26

Cub Cadet 731-05679

Front Roller
(Superseded to 731-05679B)

$16.99

$

In Stock, Qty 20+

0

27

Cub Cadet 731-3316

Plug, Mulch

$28.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 932-3127

Spring, Comp, .66 OD x 1.8

$4.49

$

In Stock, Qty 15

0

29

Cub Cadet 732-0861

Spring, Ext, .162 Dia x 1.25 OD

$28.99

$

In Stock, only 1 left!

0

30

Cub Cadet 734-0973

Wheel, Deck, 5.0 x 1.38

$12.99

$

In Stock, Qty 20+

0

31

Cub Cadet 736-0105

Washer, Belleville, .401 x .870 x .63

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 936-0119

Washer, Lock, 5/16

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 936-0179

Washer, Flat, 1/2 x 1.25 x .10
(Superseded to 736-0179)

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 736-0270

Washer, Bell, .265 x .75 x .062

$3.99

$

In Stock, Qty 10

0

35

Cub Cadet 736-3019

Washer, Flat, .531 x 1.062 x .134 HT

$5.49

$

In Stock, Qty 17

0

36

Cub Cadet 738-0143

Bolt, Shoulder, .498 Dia x .340

$3.99

$

In Stock, Qty 20+

0

37

Cub Cadet 938-0373

Screw, Shoulder, 496 x 1.525:3/8-16

$8.49

$

In Stock, Qty 20+

0

38

Cub Cadet 938-3056

Bolt, Shoulder, .496 x 2.5 : 3/8-16

$8.99

$

In Stock, Qty 20+

0

39

Cub Cadet 741-0338

Bearing, Flange, 3/4 ID x .52 LG

$8.49

$

In Stock, only 3 left!

0

40

Cub Cadet 747-3188

Pin, Mower Support

$32.99

$

In Stock, only 2 left!

0

41

Cub Cadet 950-3136

Spacer, .5 OD x .75 x 2.07 Lg

$13.99

$

In Stock, only 3 left!

0

42

Cub Cadet 747-3172C

Rod, Front Lift

$66.99

$

In Stock, Qty 8

0

43

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16 GrF

$3.99

$

In Stock, Qty 20+

0

44

Cub Cadet 938-0507B

Bolt, Shoulder, .50 Dia. x .494 Lg
(Superseded to 738-0507B)

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 912-0206

Nut, Hex, 1/2-13 Gr5
(Superseded to 712-0206)

$3.99

$

In Stock, Qty 20+

0

46

Cub Cadet 703-2248-0637

Bracket, Front Lift

$44.99

$

In Stock, Qty 6

0

47

Cub Cadet 977S30145

Graphic, Danger

$9.49

$

In Stock, only 1 left!

0

48

Cub Cadet 737-04003D

Nozzle, Deck Wash

$21.99

$

In Stock, Qty 18

0

49

Cub Cadet 912-0641

Nut, Hex M16-1.5
(Superseded to 712-0641)

$5.99

$

In Stock, Qty 20+

0

50

Cub Cadet 736-0225

Washer, Lock

$3.99

$

In Stock, Qty 11

0

51

Cub Cadet 921-04041

Adapter, Water Nozzle

$21.99

$

In Stock, Qty 20+

0
