GT 31 (UT-26041) - Green Machine String Trimmer Handle & Throttle Parts Diagram

String Trimmer

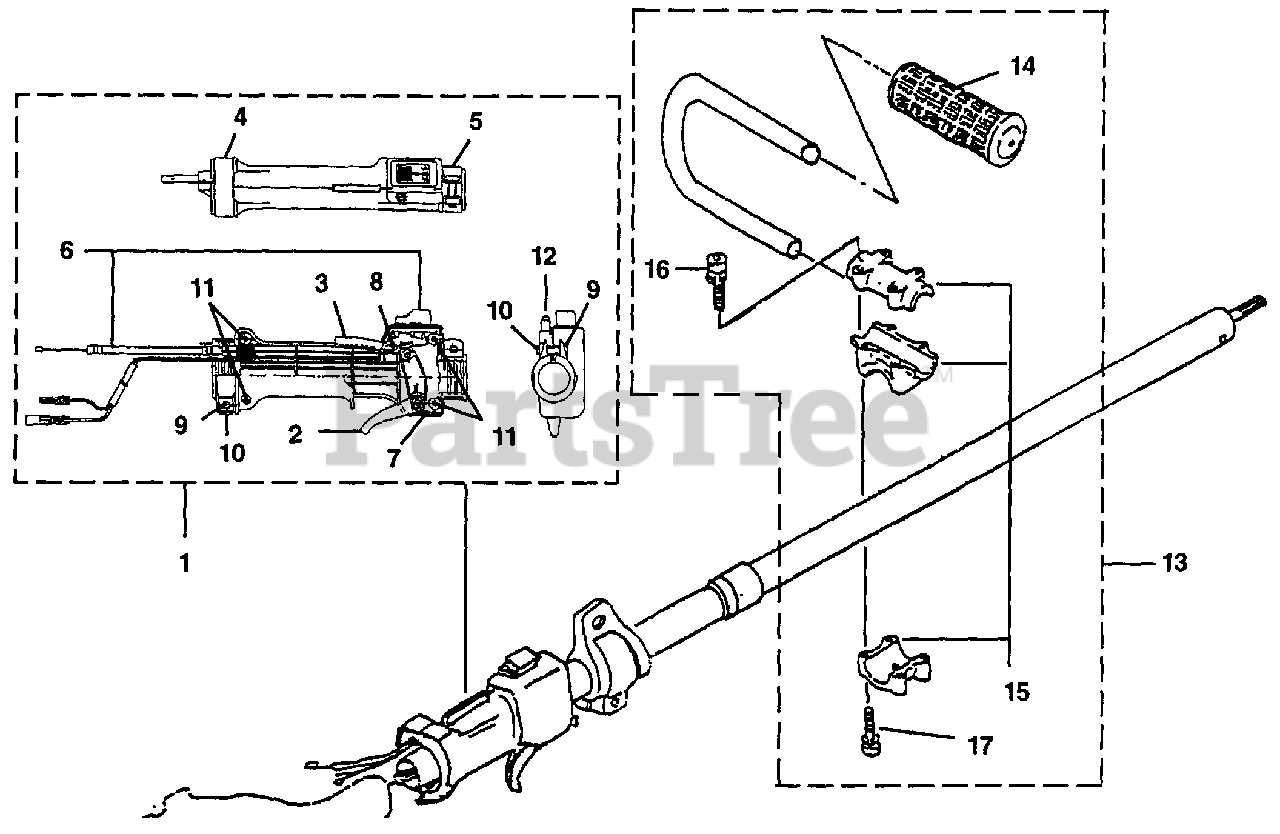

Handle & Throttle Parts Diagram

  • Title

1

Homelite UP00442

CONTROL LEVER ASSEMBLY

$

$

Not available

2

Homelite PS00461

THROTTLE-Trigger

$

$

Not available

3

Homelite PS00462

LATCH-Trigger

$

$

Not available

4

Homelite PS00463

CLAMP

$

$

Not available

5

Homelite PS00464

CLAMP

$

$

Not available

6

Homelite PS00465

CONTROL CABLE ASSEMBLY

$

$

Not available

7

Homelite PS00466

SPRING

$

$

Not available

8

Homelite PS00467

SPRING

$

$

Not available

9

Homelite PS00468

SCREW

$

$

Not available

10

Homelite PS00469

NUT

$

$

Not available

11

Homelite PS00470

SCREW-Tapping

$

$

Not available

12

Homelite PS01032

LOCK-Throttle Start

$

$

Not available

13

Homelite UP00439

HANDLE ASSEMBLY

$

$

Not available

14

Homelite PS00457

GRIP

$

$

Not available

15

Homelite PS00440

HANDLE-Bracket Assembly

$

$

Currently unavailable

16

Homelite PS00458

BOLT-Socket Hd (M5 x 25 SW)
(Superseded to PS00553)

$

$

Not available

17

Homelite PS00553

BOLT-Socket Hd (M5 x 25 SW)

$

$

Not available
