GTH 200 (954002022-A) - Husqvarna Garden Tractor (1995-05) MOWER DECK / CUTTING DECK Parts Diagram

Garden Tractor

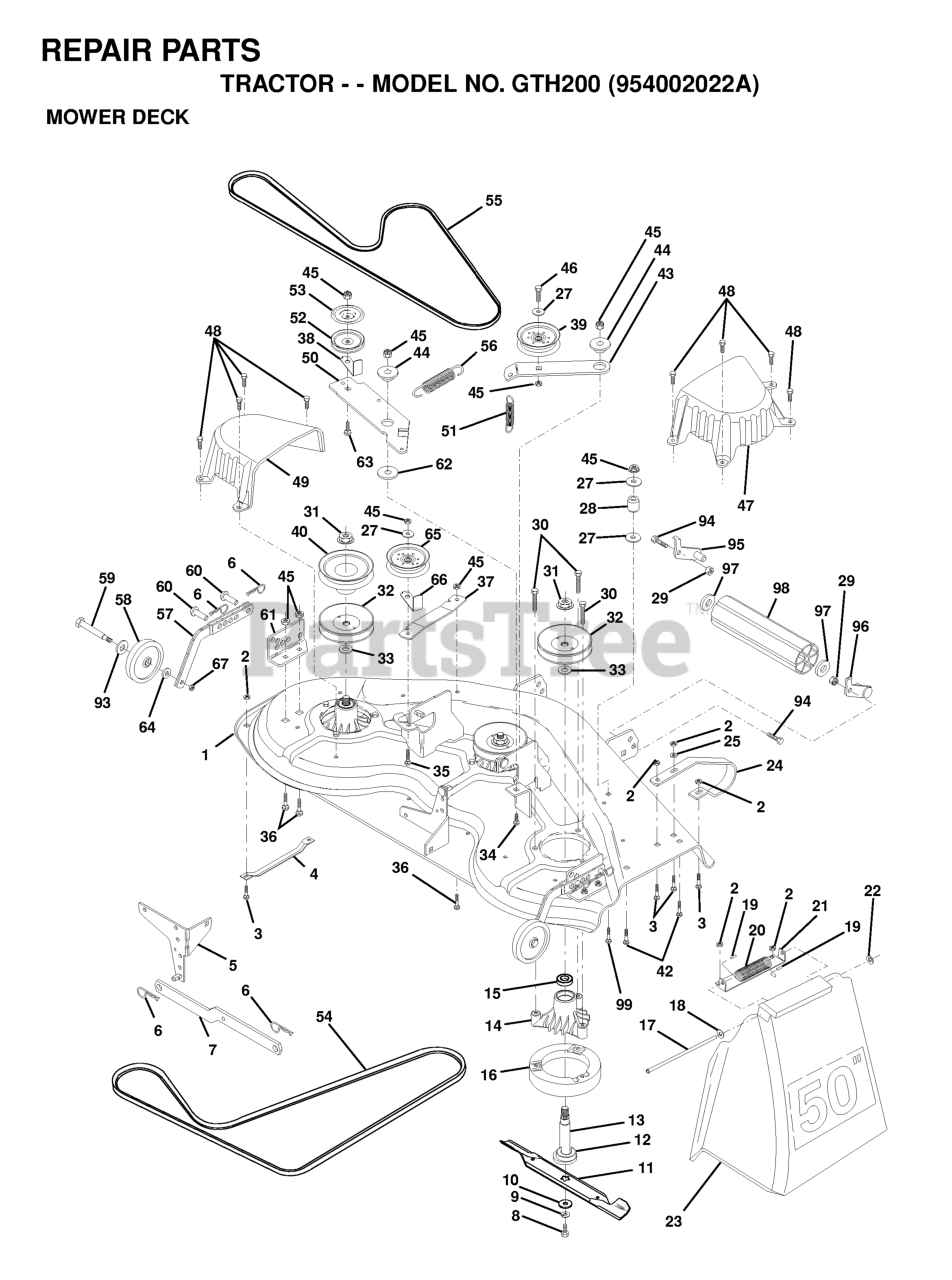

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

16

Husqvarna 532140329

STRIPPER
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532136572

PULLEY.DRIVEN.44"

$

$

Not available

17

Husqvarna 532106735

ROD-HINGE T

$8.99

$

In Stock, only 1 left!

0

56

Husqvarna 532138687

SPRING

$

$

Not available

59

Husqvarna 532124842

BOLT M
(Superseded to 532004898)

$

$

Not available

14

Husqvarna 532137152

HOUSING.MANDREL.44/46" VENT

$40.99

$

In Stock, only 4 left!

0

48

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga SD

$0.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532137166

STIFFENER ARM

$6.49

$

Usually ships in 3-10 days

0

66

Husqvarna 532139622

KEEPER
(Superseded to 532156009)

$7.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532129895

BEARING.BALL.#6204.(MANDREL)

$10.99

$

In Stock, Qty 20+

0

67

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

97

Husqvarna 819171416

Washer 1 17/32 X 7/8 X 16 Ga

$4.99

$

In Stock, Qty 13

0

54

Husqvarna 532139573

V-BELT.PRMRY 46/50 VENT.BLK BK

$49.99

$

In Stock, Qty 6

0

57

Husqvarna 532136577

BAR.ASM.GUAGE.WHEEL

$

$

Not available

53

Husqvarna 532137789

SHIELD IDLER

$

$

Not available

15

Husqvarna 532110485

BEARING

$10.99

$

In Stock, Qty 20+

0

28

Husqvarna 532132823

IDLER SPRING SPACER

$7.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532138776

SCREW
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

21

Husqvarna 532137607

BRACKET, DEFLECTOR

$6.49

$

In Stock, only 4 left!

0

34

Husqvarna 872140610

BOLT.3/8-14X1.25
(Superseded to 583611601)

$

$

Not available

9

Husqvarna 810030600

LOCKWASHER
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

63

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532125074

RUNNER-LH M
(Superseded to 532007631)

$18.99

$

In Stock, only 4 left!

0

27

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 532137554

KEEPER
(Superseded to 532156085)

$

$

Not available

99

Husqvarna 872110614

BOLT

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532137380

BLADE.50".HI-LIFT

$14.99

$

In Stock, Qty 15

0

33

Husqvarna 532129963

WASHER
(Superseded to 532187690)

$3.49

$

In Stock, Qty 20+

0

31

Husqvarna 532137266

NUT
(Superseded to 532139729)

$8.99

$

In Stock, only 1 left!

0

42

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 532137553

SHAFT.ASM.W/BEARING

$37.99

$

In Stock, Qty 10

0

8

Husqvarna 532850857

BLADE BOLT

$3.99

$

In Stock, Qty 16

0

6

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

93

Husqvarna 819171512

Washer 17/32 x 15/16 x 12 Gauge

$3.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532105455

WHEEL.GAUGE.BLK.4.93

$18.99

$

In Stock, only 4 left!

0

25

Husqvarna 819111216

WASHER M
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532110509

SHIELD.DEFLECTOR.MOWER.50"BLK.

$

$

Not available

35

Husqvarna 872110616

BOLT

$6.49

$

Usually ships in 3-10 days

0

52

Husqvarna 532139245

PULLEY IDLER

$34.99

$

In Stock, only 4 left!

0

98

Husqvarna 532132264

NOSE ROLLER

$44.99

$

In Stock, Qty 20+

0

39

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 20+

0

32

Husqvarna 532129861

MANDREL PULLEY
(Superseded to 532173436)

$10.99

$

In Stock, Qty 20+

0

94

Husqvarna 874760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

96

Husqvarna 532132273

BRACKET RH (B)
(Superseded to 532175747)

$10.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532130832

REAR SUSP ARM
(Superseded to 532130833)

$8.99

$

In Stock, Qty 5

0

10

Husqvarna 532140296

WASHER.BLADE

$6.49

$

In Stock, Qty 6

0

51

Husqvarna 532137273

SPRING.SEC.44"VEN

$7.49

$

In Stock, Qty 11

0

62

Husqvarna 532133943

HARDENED WASHER
(Superseded to 532178515)

$6.49

$

In Stock, Qty 20+

0

36

Husqvarna 872110608

BOLT D
(Superseded to 596728201)

$3.99

$

In Stock, Qty 10

0

60

Husqvarna 532139031

PIN.CLEVIS

$6.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532136460

ARM.IDLER.SEC.44"

$

$

Not available

46

Husqvarna 874760628

BOLT
(Superseded to 874780628)

$6.49

$

In Stock, Qty 5

0

47

Husqvarna 532137200

COVER MANDRELL

$26.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532144959

BELT V SECONDARY

$42.99

$

In Stock, Qty 15

0

45

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532136457

DECK ASM MWR 50VT
(Superseded to 532185382)

$

$

Not available

3

Husqvarna 872110506

BOLT.CARR.SQNK.5/16-18UNC.X3/4

$7.49

$

In Stock, Qty 20+

0

20

Husqvarna 532123713

SPRING TORSION

$5.99

$

In Stock, Qty 9

0

64

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

49

Husqvarna 532136574

COVER.MANDREL.LH.44"

$

$

Not available

Husqvarna 532141051

DECK MWR SERV 50"
(Superseded to 532181689)

$1092.99

$

Usually ships in 3-10 days

0

95

Husqvarna 532132274

BRACKET LH (A)
(Superseded to 532175746)

$7.49

$

In Stock, Qty 9

0

5

Husqvarna 532138457

BRACKET SWAY BAR

$

$

Not available

50

Husqvarna 532137272

ARM.IDLER.PRIMARY

$6.49

$

Usually ships in 3-10 days

0

24

Husqvarna 532136320

RUNNER RH

$

$

Not available

65

Husqvarna 532102403

IDLER-FLAT T

$37.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

Husqvarna 532143651

KIT.MANDREL.ASM.44"/46/50"SRVC

$100.99

$

In Stock, Qty 8

0

44

Husqvarna 532122052

SPACER RETAINER
(Superseded to 532165723)

$6.49

$

In Stock, Qty 11

0

2

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532136573

BRACKET.GUAGE.WHEEL

$6.49

$

Usually ships in 3-10 days

0
