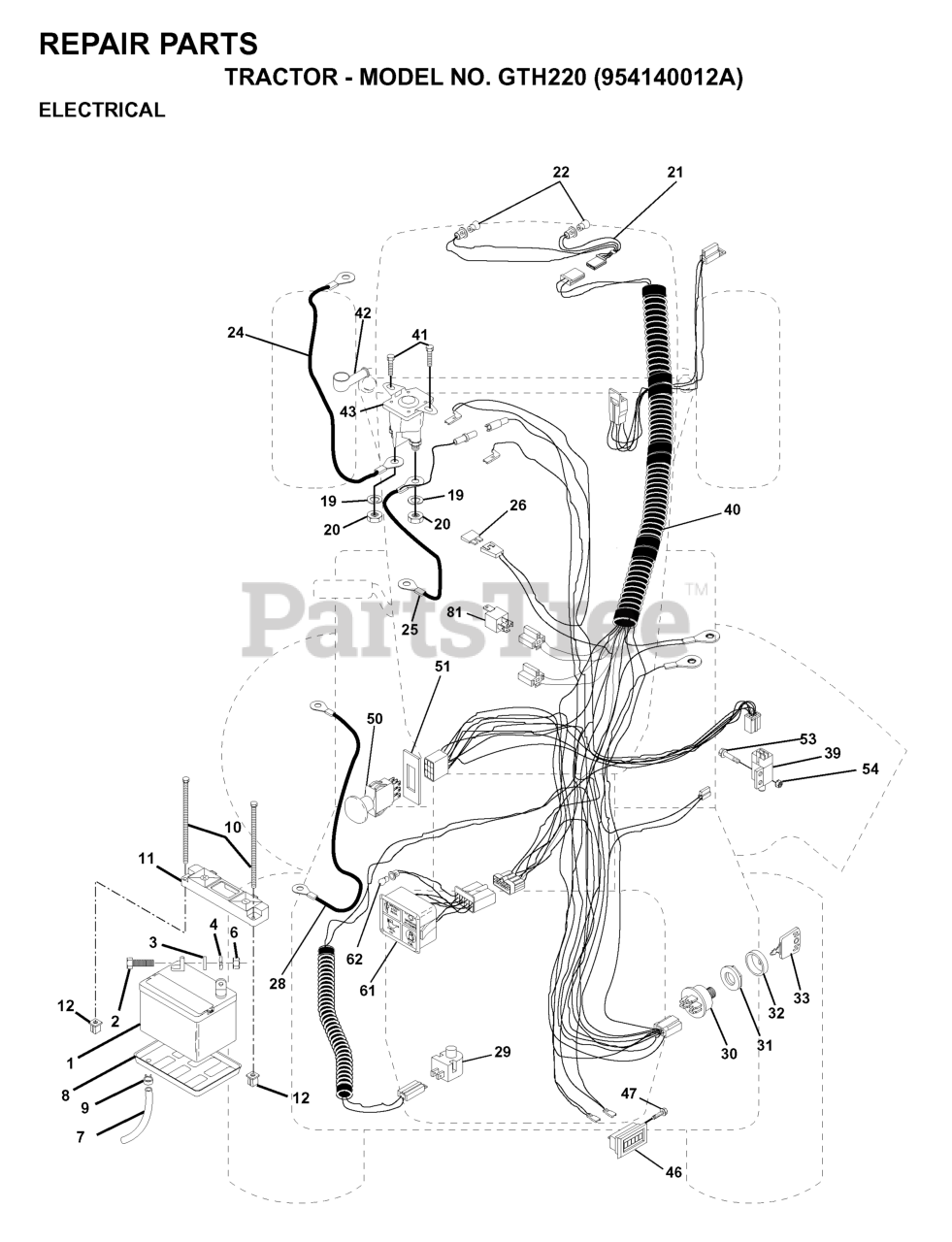

GTH 220 (954140012-A) - Husqvarna Garden Tractor (1997-01) ELECTRICAL Parts Diagram

Garden Tractor

ELECTRICAL Parts Diagram

  • Title

39

Husqvarna 532109553

SWITCH INTERLOCKT
(Superseded to 539101080)

$7.49

$

In Stock, Qty 20+

0

24

Husqvarna 532004014

CABLE, STARTER

$

$

Not available

50

Husqvarna 532154959

SWITCH PTO 3 PDT
(Superseded to 582107601)

$13.99

$

In Stock, Qty 20+

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, Qty 5

0

19

Husqvarna 810090400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

22

Husqvarna 532004152

LIGHTBULB

$4.99

$

In Stock, Qty 20+

0

43

Husqvarna 532145673

SOLINOID
(Superseded to 532146154)

$24.99

$

In Stock, Qty 19

0

12

Husqvarna 532145769

NUT, PUSH NYLON 1/4" BATTERY
(Superseded to 532150177)

$

$

Not available

51

Husqvarna 532140405

FRAME RETAINING RING

$6.49

$

Usually ships in 3-10 days

0

81

Husqvarna 532109748

RELAY.ASSY.T

$34.99

$

In Stock, only 1 left!

0

41

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532122147

KEY.MOLDED.GENERIC

$

$

Not available

7

Husqvarna 532007697

PLASTIC TUBE

$

$

Not available

10

Husqvarna 532145211

BOLT 1/4-20 X 7.5
(Superseded to 532150177)

$

$

Not available

30

Husqvarna 532140301

SWITCH.IGNITION.4.POSITION

$37.99

$

In Stock, only 3 left!

0

1

Husqvarna 532146141

BATTERY
(Superseded to 532125603)

$194.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532006408

CABLE, GROUND

$

$

Not available

20

Husqvarna 873350400

NUT
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

62

Husqvarna 532110143

BULB LIGHT T

$

$

Not available

47

Husqvarna 817011008

Screw 10-24 x 1/2 Black

$

$

Not available

21

Husqvarna 532136850

HARNESS LIGHT SOCKET

$

$

Not available

32

Husqvarna 532141226

COVER SWITCH KEY

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532121305

RP.SWITCH.PLUNGER.NC.GRAY
(Superseded to 532421062)

$10.99

$

In Stock, Qty 16

0

54

Husqvarna 873951000

Nut, Hex, Keps #10-32 UNF

$5.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532146686

CABLE, BATTERY

$10.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532150109

BATTERY HOLDDOWN FRONT MOUNT

$

$

Not available

26

Husqvarna 532108824

FUSE HYT

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

53

Husqvarna 871031008

SCREW **
(Superseded to 874641008)

$2.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532124211

NUT IGNITION

$4.99

$

In Stock, only 1 left!

0

40

Husqvarna 532156160

HARNESS IGN.

$

$

Not available

6

Husqvarna 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

9

Husqvarna 532109596

HOSE CLAMP T

$4.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532110940

HOUR METER T
(Superseded to 532169642)

$103.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532124886

BATTERY TRAY T
(Superseded to 532007603)

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

4

Husqvarna 819091016

WASHER

$4.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532138101

LIGHT PACKAGE

$

$

Not available
