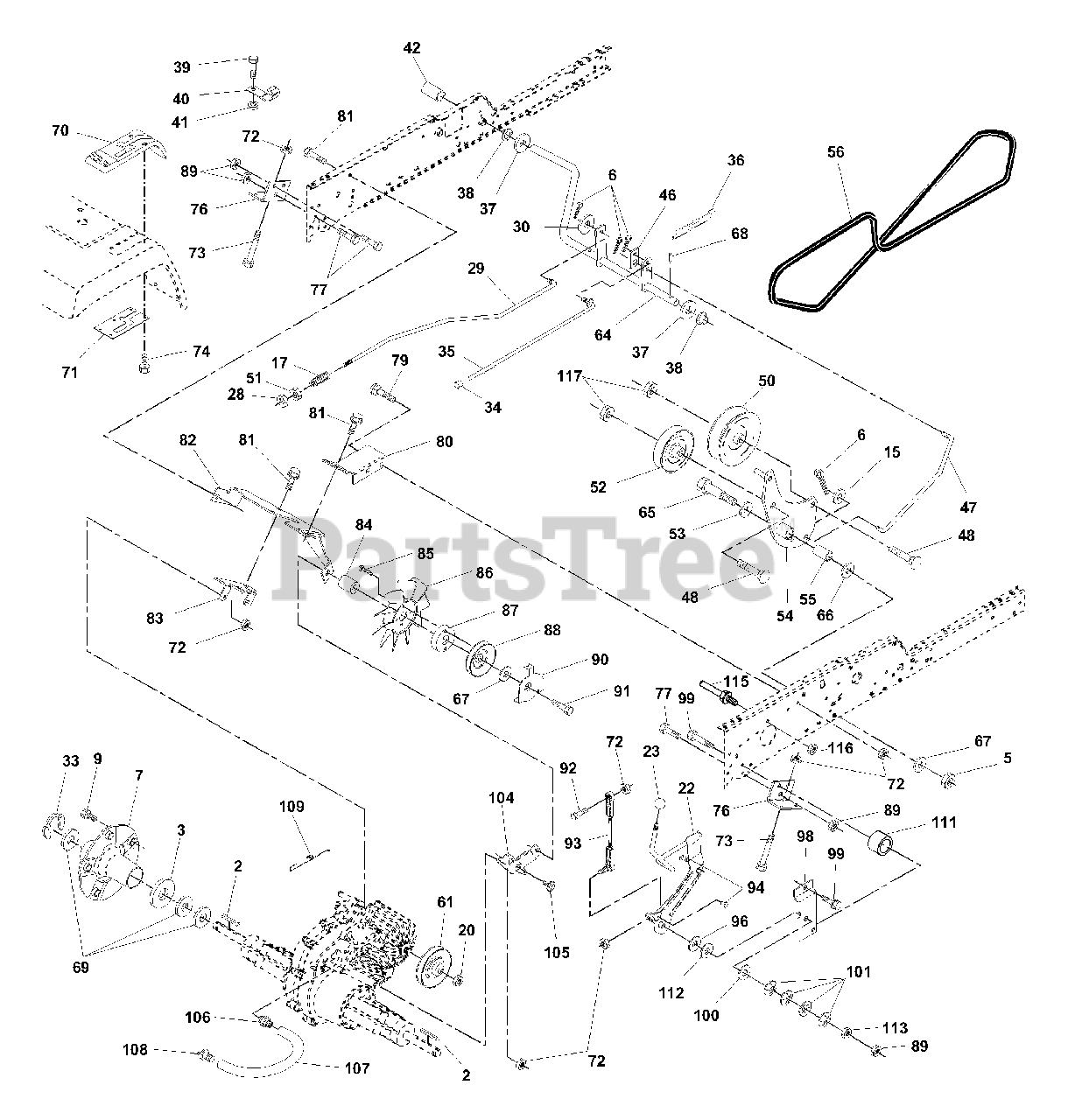

GTH 2250 (954567093-A) - Husqvarna 50" Garden Tractor (2000-11) Ground Drive Parts Diagram

50" Garden Tractor

Ground Drive Parts Diagram

  • Title

1

Transaxle, Hydro 222-3010

Note: (Order Parts From Transaxle Manufacturer)

$

$

Not available

2

Husqvarna 532007070

Key 1/4 x 2.5

$

$

Not available

3

Husqvarna 532007563

Washer Thrust Axle Harden

$8.99

$

In Stock, only 1 left!

0

5

Husqvarna 873680600

Nut Crownlock 3/8-16

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 876020412

Pin Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

7

Husqvarna 532140507

Wheel Hub Asm.

$182.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532140080

Bolt Hub

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 532140921

Spring Rod Brake

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 873940800

Nut Hex Jam Toplock 1/2-20

$7.49

$

In Stock, Qty 11

0

22

Husqvarna 532156103

Shaft Arm Asm

$

$

Not available

23

Husqvarna 532140845

Knob

$12.99

$

Usually ships in 3-10 days

0

28

Husqvarna 873350600

Nut, Hex Jam 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 3 left!

0

29

Husqvarna 532140494

Brake Rod

$11.99

$

Usually ships in 3-10 days

0

30

Husqvarna 819131616

Washer 13/32 x 1 x 14Ga
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 812000053

Ring E

$7.49

$

In Stock, only 2 left!

0

34

Husqvarna 532071673

Cap Plunger

$4.99

$

In Stock, only 1 left!

0

35

Husqvarna 532137648

Rod Parking Brake

$9.99

$

In Stock, only 1 left!

0

36

Husqvarna 532149412

Spring Extension

$

$

Not available

37

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

38

Husqvarna 532150035

Nyliner

$4.99

$

Usually ships in 3-10 days

0

39

Husqvarna 874321016

Screw Fin #10-24 x 1

$

$

Not available

40

Husqvarna 532005304

Actuator Interlock Switch
(Superseded to 532178575)

$

$

Not available

41

Husqvarna 873931000

Nut Toplock #10-24 Unc

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532124872

Cover Pedal
(Superseded to 532008883)

$6.49

$

In Stock, Qty 16

0

46

Husqvarna 532145170

Retainer Spring

$

$

Not available

47

Husqvarna 532138228

Clutch Rod

$

$

Not available

48

Husqvarna 872110612

Bolt Carriage 3/8-16 x 1-1/2 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532131494

Pulley Idler Flat
(Superseded to 597025001)

$26.99

$

In Stock, Qty 20+

0

51

Husqvarna 873680600

Nut, Crownlock 3/8-16

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532139123

Pulley Idler Grooved

$37.99

$

In Stock, only 1 left!

0

53

Husqvarna 532000207

Washer Hartdened

$6.49

$

Usually ships in 3-10 days

0

54

Husqvarna 532161590

Arm Asm Idler Clutch 98

$18.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532105706

Bearing,Idler

$7.49

$

In Stock, only 1 left!

0

56

Husqvarna 532140218

V-Belt

$60.99

$

In Stock, Qty 7

0

61

Husqvarna 532140488

Pullery Transaxle

$37.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532154752

Shaft Asm Brake Parking Clutch

$

$

Not available

65

Husqvarna 532067609

Bolt Shoulder

$9.49

$

Usually ships in 3-10 days

0

66

Husqvarna 532140296

Washer Hardened

$6.49

$

In Stock, Qty 6

0

67

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

68

Husqvarna 532005142

Pin Roll

$

$

Not available

69

Husqvarna 532123800

Washer

$7.49

$

In Stock, only 1 left!

0

70

Husqvarna 532166624

Console Hydro Fender
(Superseded to 532164892)

$

$

Not available

71

Husqvarna 532151179

Plate Console Shift

$

$

Not available

72

Husqvarna 873800500

Locknut Hex W/Washer Insert

$3.99

$

Usually ships in 3-10 days

0

73

Husqvarna 874490548

Bolt Hex Flghd 5/16-18 x 3 Gr. 5

$6.49

$

In Stock, only 2 left!

0

74

Husqvarna 532142432

Screw, Hex Wsh Hi-Lo 1/4-1/2

$6.49

$

Usually ships in 3-10 days

0

76

Husqvarna 532140481

Bracket Transaxle

$

$

Not available

77

Husqvarna 874760716

Bolt Fin Hex 7/16-14 x 1
(Superseded to 874780716)

$4.99

$

Usually ships in 3-10 days

0

79

Husqvarna 872110505

Bolt Carriage 5/16-18 x 5/8
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

80

Husqvarna 532140484

Bracket Torque RH

$

$

Not available

81

Husqvarna 817060612

Screw 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

82

Husqvarna 532150586

Bracket Mount Torque/Fan
(Superseded to 532154561)

$

$

Not available

83

Husqvarna 532140479

Strap Torque Mid

$

$

Not available

84

Husqvarna 532140490

Spacer

$

$

Not available

85

Husqvarna 817541020

Screw #10-24 x 1-1/4

$3.99

$

Usually ships in 3-10 days

0

86

Husqvarna 532140462

Fan 7" Hydro

$12.99

$

In Stock, only 3 left!

0

87

Husqvarna 532140491

Adapter Fan

$

$

Not available

88

Husqvarna 532161592

Pully Idler V-Groove Flange

$

$

Not available

89

Husqvarna 873680700

Nut, Crownlock 7/16-14

$2.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532140489

Keeper Belt

$8.99

$

Usually ships in 3-10 days

0

91

Husqvarna 817490644

Screw Thdrol 3/8-16 x 2-3/4

$

$

Not available

92

Husqvarna 874760520

Bolt Fin Hex 5/16-18 x 1.75
(Superseded to 874780520)

$4.99

$

Usually ships in 3-10 days

0

93

Husqvarna 532140502

Link Shift Asm

$

$

Not available

94

Husqvarna 532133835

Fastner Christmas Tree

$7.49

$

Usually ships in 3-10 days

0

96

Husqvarna 532141103

Washer Nickel Plated

$3.99

$

Usually ships in 3-10 days

0

98

Husqvarna 532141004

Bracket Shift

$

$

Not available

99

Husqvarna 817060624

Screw 3/8-16 x 1-1/2

$7.49

$

In Stock, only 1 left!

0

100

Husqvarna 532126881

Washer Compression

$3.99

$

Usually ships in 3-10 days

0

101

Husqvarna 532156106

Washer Bellville

$

$

Not available

104

Husqvarna 532140480

Bracket Idler

$

$

Not available

105

Husqvarna 817580408

Screw Tap 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

106

Husqvarna 532142918

O-Ring Asm Hydro Gear

$

$

Not available

107

Husqvarna 532154739

Line Fuel Hydro 15" VGT Serv

$6.49

$

Usually ships in 3-10 days

0

108

Husqvarna 532142917

Cap Asm Vent Hydro Gear
(Superseded to 532142578)

$46.99

$

Usually ships in 3-10 days

0

109

Husqvarna 532140929

Spring Return Brake

$

$

Not available

111

Husqvarna 532156240

Spacer Shift Lever VGTH

$2.99

$

Usually ships in 3-10 days

0

112

Husqvarna 532156104

Washer Nylon High Temp
(Superseded to 532178558)

$6.49

$

Usually ships in 3-10 days

0

113

Husqvarna 873220700

Nut Hex ASF 7/16-14 Unc

$2.99

$

Usually ships in 3-10 days

0

115

Husqvarna 532123405

Keeper Belt T/A GND DR LR
(Superseded to 532156109)

$8.99

$

Usually ships in 3-10 days

0

116

Husqvarna 873900500

Nut Lock Hex Flange 5/16-18
(Superseded to 583612701)

$

$

Not available

117

Husqvarna 873900600

Nut Lock Flg. 3/8-16 Unc
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

118

Husqvarna 873800500

Nut Lock Hex W/Ins 5/16-18unc

$3.99

$

Usually ships in 3-10 days

0
