GTH 2554 XP (954170228-A) - Husqvarna 54" Garden Tractor (2004-09) MOWER LIFT / DECK LIFT Parts Diagram

54" Garden Tractor

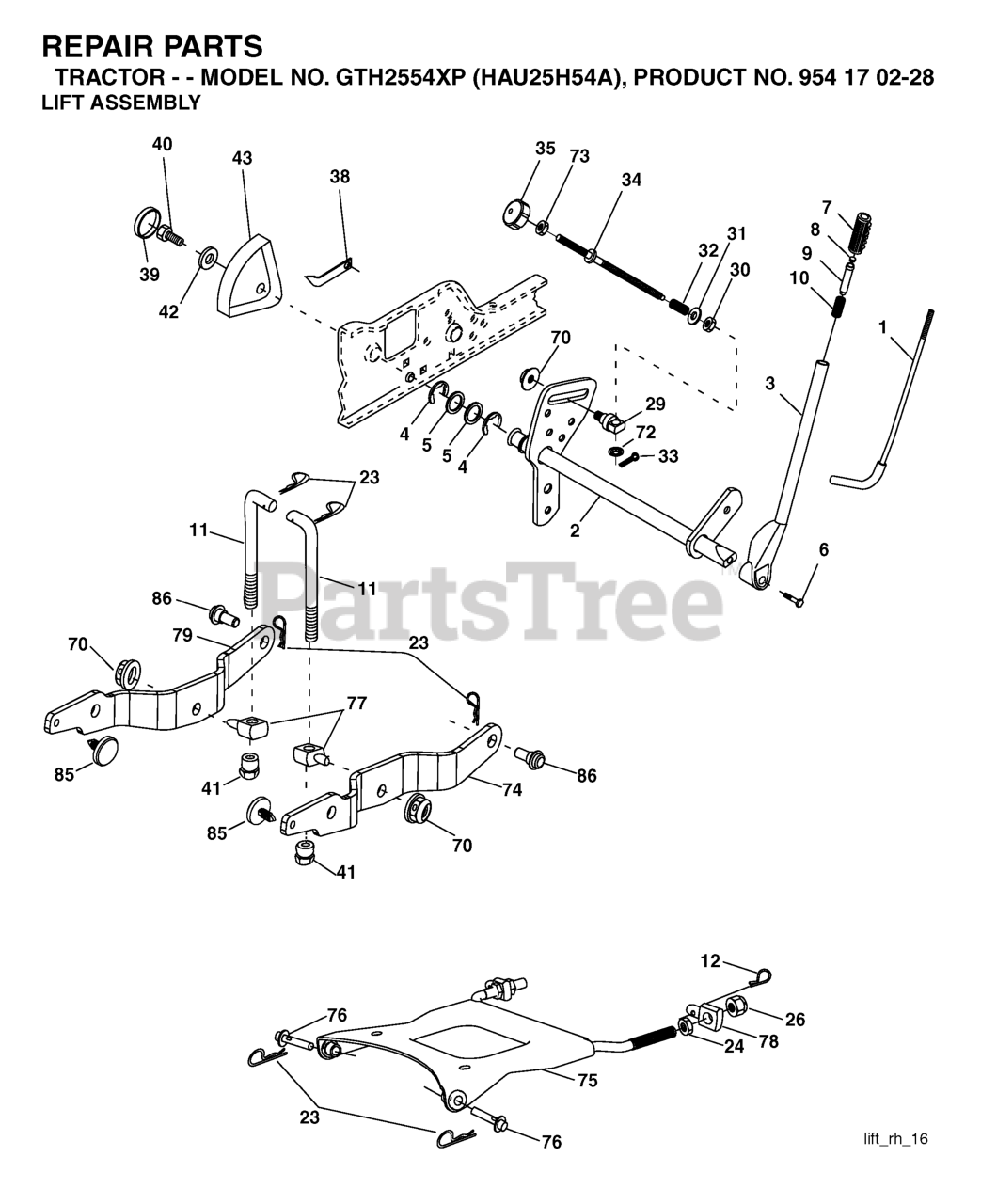

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

41

Husqvarna 532175994

NUT, LIFT LINK 7/16-20
(Superseded to 589464902)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 532125631

GRIP HANDLE

$6.99

$

In Stock, only 1 left!

0

39

Husqvarna 532123935

PLUG,HOLE

$

$

Not available

24

Husqvarna 873350800

NUT.HEX.JAM.1/2-13

$

$

Not available

8

Husqvarna 532124526

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

75

Husqvarna 532175805

PLATE ASM SUSP FRONT

$

$

Not available

33

Husqvarna 876020308

COTTER PIN
(Superseded to 532003145)

$

$

Not available

70

Husqvarna 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 532163552

SPRING RETAINER
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

40

Husqvarna 817060516

SCREW 5/16-18X1

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532180045

SHAFT ASM., LIFT VGT

$

$

Not available

38

Husqvarna 532155097

POINTER, HEIGHT INDICATOR(2 2)

$

$

Not available

1

Husqvarna 532121006

LEVER ROD LT

$34.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532159189

LEVER ASSY-LIFT RH

$

$

Not available

9

Husqvarna 532122364

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

76

Husqvarna 532175560

PIN.FLANGE

$11.99

$

In Stock, only 1 left!

0

72

Husqvarna 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

73

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 3 left!

0

32

Husqvarna 532137150

SPRING.COMP.INF.H

$6.49

$

Usually ships in 3-10 days

0

79

Husqvarna 532187276

ARM SUSPENSION LH

$

$

Not available

4

Husqvarna 812000022

E-RING

$6.99

$

Usually ships in 3-10 days

0

5

Husqvarna 819292016

Washer 29/32 x 1 - 1/4 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532150233

TRUNNION

$12.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532187277

ARM.SUSP.REAR.RH

$

$

Not available

85

Husqvarna 532189013

INSERT WEAR (3 2)

$8.99

$

Usually ships in 3-10 days

0

42

Husqvarna 819112410

WASHER

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 819131016

WASHER

$6.49

$

In Stock, only 1 left!

0

6

Husqvarna 871110624

Bolt, Fin Hex 3/8-16 x 1-1/12

$

$

Not available

78

Husqvarna 532175689

TRUNNION

$

$

Not available

77

Husqvarna 532176205

TRUNNION

$7.49

$

In Stock, only 2 left!

0

43

Husqvarna 532123934

HEIGHT INDICATOR

$

$

Not available

26

Husqvarna 873800800

NUT.LK.W/WSH.1/2.
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

10

Husqvarna 532183894

SPRING 0.620D X 2.125

$

$

Not available

34

Husqvarna 532137167

ROD.LIFT.ADJUSTABLE

$7.49

$

In Stock, only 2 left!

0

11

Husqvarna 532175375

LIFT LINK
(Superseded to 532181576)

$12.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532110807

NUT T

$

$

Not available

35

Husqvarna 532138057

KNOB INF 3/8-16

$8.99

$

Usually ships in 3-10 days

0

86

Husqvarna 532188528

BOLT.SHOULDER

$

$

Not available
