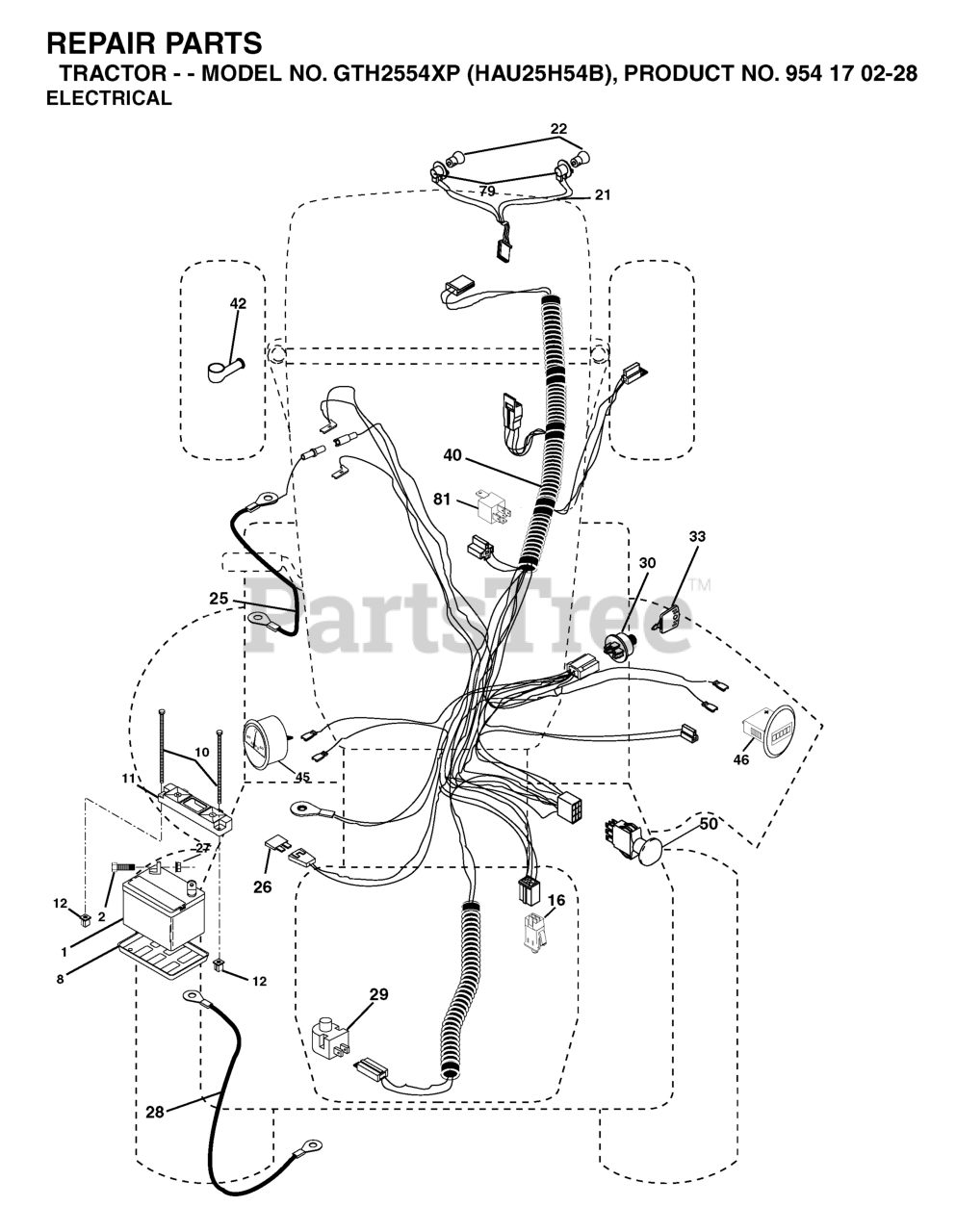

GTH 2554 XP (954170228-B) - Husqvarna 54" Garden Tractor (2004-09) ELECTRICAL Parts Diagram

54" Garden Tractor

ELECTRICAL Parts Diagram

  • Title

10

Husqvarna 532145211

BOLT 1/4-20 X 7.5
(Superseded to 532150177)

$

$

Not available

26

Husqvarna 532108824

FUSE HYT

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532188034

HARNESS.IGNITION.VGT.NO.RELAY

$157.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532170697

CABLE, GROUND

$24.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532177500

RP AMMETER.ROUND.SILVER.DELTA

$78.99

$

Usually ships in 3-10 days

0

27

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 532145769

NUT, PUSH NYLON 1/4" BATTERY
(Superseded to 532150177)

$

$

Not available

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, Qty 5

0

79

Husqvarna 532175242

BULB HOLDER ASM.

$18.99

$

In Stock, only 2 left!

0

46

Husqvarna 532177501

RP HOURMETER SNAP-IN

$122.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532124886

BATTERY TRAY T
(Superseded to 532007603)

$4.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532154336

COVER.TERMINAL.RED

$8.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532175688

HARNESS.W/LIGHT SOCKET

$44.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532144927

BATTERY 12V .35 AMP
(Superseded to 532125603)

$194.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532004152

LIGHTBULB

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 532150109

BATTERY HOLDDOWN FRONT MOUNT

$

$

Not available

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$15.99

$

In Stock, Qty 20+

0

25

Husqvarna 532185461

CABLE.4GA.RED.W/16GA.RED.WIRE

$24.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532174651

RP.PTO.SWITCH.8 TERMINAL.BLACK
(Superseded to 582107601)

$13.99

$

In Stock, Qty 20+

0

81

Husqvarna 532109748

RELAY.ASSY.T

$34.99

$

In Stock, only 1 left!

0

29

Husqvarna 532121305

RP.SWITCH.PLUNGER.NC.GRAY
(Superseded to 532421062)

$10.99

$

In Stock, Qty 16

0

33

Husqvarna 532140401

KEY MLD GEN DELTA

$6.49

$

In Stock, Qty 20+

0

30

Husqvarna 532175566

IGNITION SWITCH

$12.99

$

In Stock, Qty 20+

0
