GTH 2554 XP (954170228-B) - Husqvarna 54" Garden Tractor (2004-09) SEAT Parts Diagram

54" Garden Tractor

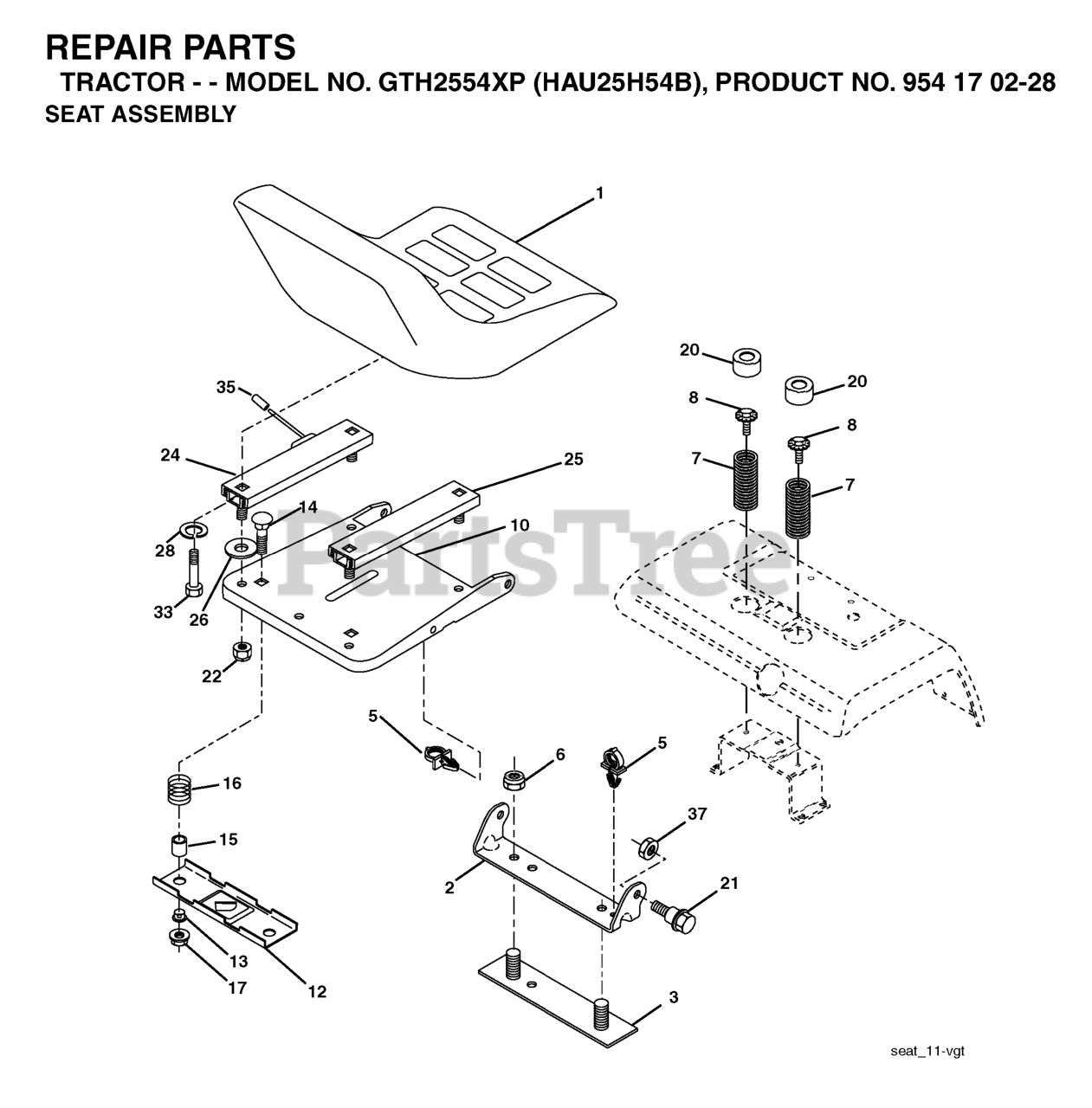

SEAT Parts Diagram

  • Title

21

Husqvarna 532171852

BOLT.SHOULDER.5/16-18
(Superseded to 587907801)

$4.99

$

In Stock, Qty 14

0

13

Husqvarna 532121248

BUSHING

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532121246

BRKT SWITCH
(Superseded to 532174648)

$8.99

$

In Stock, only 1 left!

0

20

Husqvarna 532124238

CAP SPRING

$

$

Not available

5

Husqvarna 532145006

PUSH CLIP

$6.49

$

In Stock, only 1 left!

0

15

Husqvarna 532121249

SPACER SPLIT

$6.49

$

In Stock, Qty 5

0

14

Husqvarna 872050412

BOLT.ROUND.HEAD.SQUARE.NECK

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532182493

PAN SEAT
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532184995

SEAT
(Superseded to 532401043)

$

$

Not available

16

Husqvarna 532123740

SPRING COMPRESSED

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532177947

TRACK SLIDE, SEAT(R)

$109.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532140675

STRAP

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 819111012

WASHER T

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

24

Husqvarna 532177946

TRACK SLIDE, SEAT(L)

$60.99

$

Usually ships in 3-10 days

0

28

Husqvarna 810010500

WASHER

$6.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532178426

CAP
(Superseded to 583670601)

$2.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532140551

SEAT PIVOT BRKT

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532123976

NUT T
(Superseded to 873900400)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.49

$

In Stock, Qty 18

0
