GTX 2100 (14W-3GE-010) - Cub Cadet Garden Tractor (2012) Kohler CH680-3034 Ignition & Electrical Parts Diagram

Garden Tractor

Kohler CH680-3034 Ignition & Electrical Parts Diagram

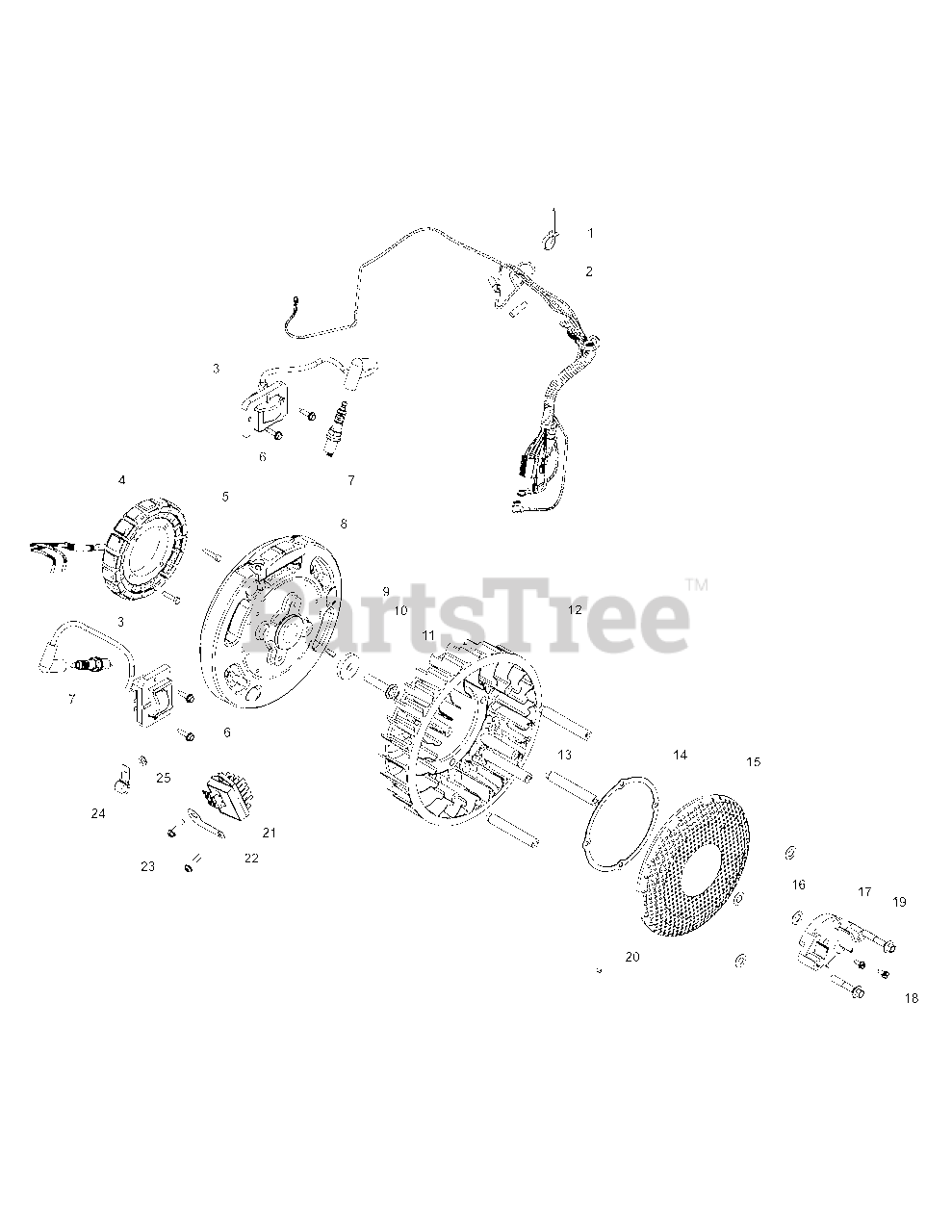

  • Title

1

Cub Cadet KH-25-454-07-S

Tie

$2.49

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-24-176-188-S

Harness, Wiring Assembly

$41.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-24-584-45-S

Kit, Module Ignition (CDI Fixed)
(Superseded to KH-24-584-201-S)

$110.99

$

Usually ships in 3-6 days

0

4

Cub Cadet KH-28-085-02-S

Kit, 25 Amp Stator Ass’y

$194.99

$

In Stock, only 1 left!

0

5

Cub Cadet KH-M-548025-S

Screw, Thd Frm M5x0.8x25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

6

Cub Cadet KH-M-545020-S

Screw, Flg Thd Frm M5x0.8x20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 17

0

7

Cub Cadet 759-3336

Plug, Spark
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

8

Cub Cadet KH-24-025-55-S

Flywheel

$

$

Not available

9

Cub Cadet KH-X-42-15

Key, 3/16" X 5/8"

$

$

Not available

10

Cub Cadet KH-12-468-03

Washer, Flat 13/32"

$

$

Not available

11

Cub Cadet KH-25-086-361-S

Screw, Flg M10x1.5x45

$3.49

$

In Stock, only 1 left!

0

12

Cub Cadet KH-24-157-11-S

Fan
(Superseded to KH-24-755-253-S)

$45.99

$

In Stock, Qty 6

0

13

Cub Cadet KH-24-112-14

Spacer

$

$

Not available

14

Cub Cadet KH-24-141-06

Ring, Support
(Superseded to KH-25-141-08-S)

$5.49

$

In Stock, Qty 9

0

15

Cub Cadet KH-24-162-39-S

Screen, Grass

$24.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-24-468-11

Washer, Spring 10 Mm

$

$

Not available

17

Cub Cadet 719-3096

Adapter, Drive Shaft
(Superseded to KH-24-029-12-S)

$32.99

$

In Stock, only 1 left!

0

18

Cub Cadet KH-25-086-91-S

Screw, Wsh HD Tap #8-18x1/2"

$3.49

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-24-086-17-S

Screw, Flg M8x1.25x45

$2.49

$

In Stock, Qty 19

0

20

Cub Cadet KH-25-086-43

Screw, Skt Set #10-24x1/4"

$

$

Not available

21

Cub Cadet KH-25-403-21-S

Regulator, Rectifier
(Superseded to KH-25-403-39-S)

$85.99

$

In Stock, Qty 15

0

22

Cub Cadet KH-24-126-137-S

Bracket, Ground Strap
(Superseded to KH-24-518-12-S)

$4.99

$

In Stock, only 1 left!

0

23

Cub Cadet KH-25-086-157-S

Screw, Hex Flange Hi-Lo

$2.49

$

In Stock, only 3 left!

0

24

Cub Cadet KH-235173

Clip, Cable

$

$

Not available

25

Cub Cadet KH-X-25-63

Washer, Flat 1/4"

$

$

Not available

Cub Cadet KH-X-25-53

Washer, Flat 1/4"

Note: Not Shown

$

$

Not available

Cub Cadet KH-M-603100

Screw, Cap M6x1.0x99.5

Note: Not Shown

$

$

Not available
