GX360 K1 DD (GA01) - Honda Engine, Made in Japan (SN: GA01-1100001 - GA01-1399999) STARTER MOTOR Parts Diagram

Engine, Made in Japan

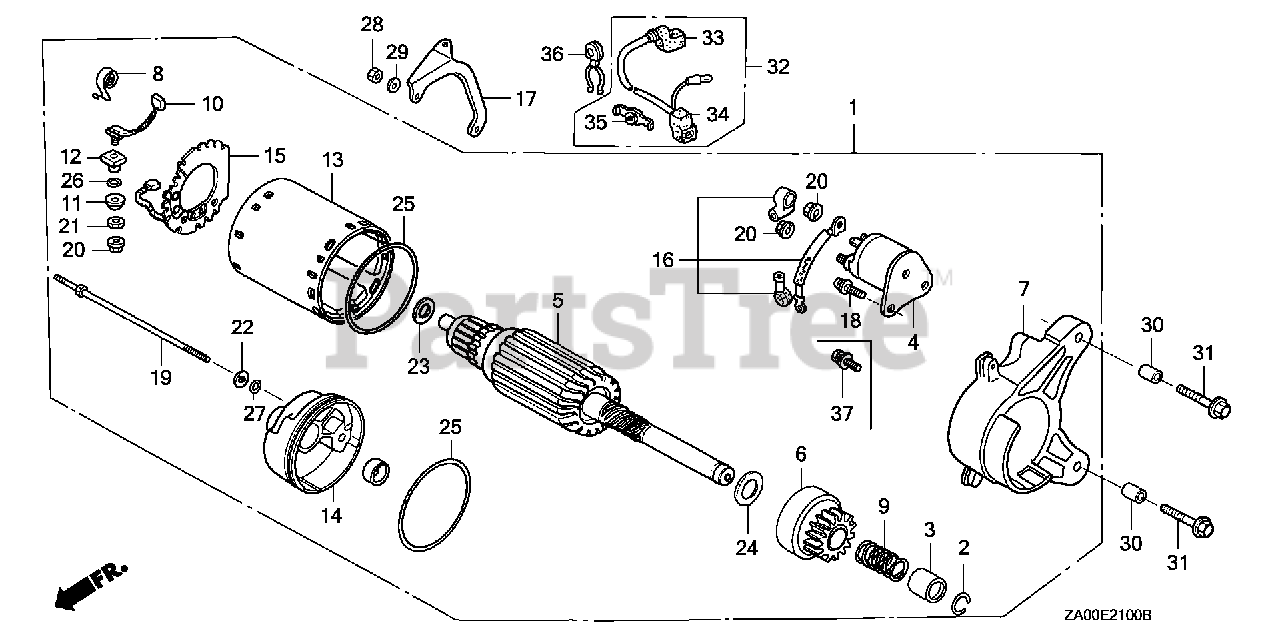

STARTER MOTOR Parts Diagram

  • Title

1

Honda 31200-ZA0-921

STARTER MOTOR ASSY.

$675.99

$

Usually ships in 3-6 days

0

2

Honda 31201-ZA1-003

RING, SNAP

$2.49

$

Usually ships in 3-6 days

0

3

Honda 31202-ZA1-003

COLLAR, CLUTCH STOP

$19.99

$

Usually ships in 3-6 days

0

4

Honda 31204-ZA0-003

SEE PART DETAILS - PRI; CONTACTOR ASSY.

$143.99

$

In Stock, only 1 left!

0

5

Honda 31206-ZA1-003

ARMATURE

$205.99

$

Usually ships in 3-6 days

0

6

Honda 31207-ZA1-003

CLUTCH ASSY., OVERRUNNING

$177.99

$

Usually ships in 3-6 days

0

7

Honda 31208-ZA1-013

HOUSING, DRIVE SIDE

$126.99

$

Usually ships in 3-6 days

0

8

Honda 31212-ZA0-700

SPRING, BRUSH

$9.99

$

In Stock, only 1 left!

0

9

Honda 31212-ZA1-003

SPRING

$6.49

$

Usually ships in 3-6 days

0

10

Honda 31215-ZA1-013

BRUSH

$12.99

$

Usually ships in 3-6 days

0

11

Honda 31216-ZA1-013

BUSH, INSULATION

$7.99

$

Usually ships in 3-6 days

0

12

Honda 31217-ZA1-013

BUSH, INSULATION

$12.99

$

Usually ships in 3-6 days

0

13

Honda 31218-ZA1-013

YOKE

$150.99

$

Usually ships in 3-6 days

0

14

Honda 31219-ZA1-013

FRAME, STARTER END

$62.99

$

Usually ships in 3-6 days

0

15

Honda 31231-ZA1-003

PLATE, BRUSH HOLDER

$31.99

$

Usually ships in 3-6 days

0

16

Honda 31232-ZA0-003

WIRE, WATER COVER

$71.99

$

Usually ships in 3-6 days

0

17

Honda 31255-ZA0-920

STAY, STARTER MOTOR

$11.99

$

Usually ships in 3-6 days

0

18

Honda 93892-05014-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X14)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 90102-ZA0-003

BOLT, THROUGH

Note: Use up to Engine SN 1244181.

$

$

Not available

19

Honda 90102-ZA0-013

BOLT, THROUGH

Note: Use from Engine SN 1244182.

$4.49

$

Usually ships in 3-6 days

0

20

Honda 90201-ZA1-003

NUT

$3.49

$

Usually ships in 3-6 days

0

21

Honda 90202-ZA1-003

NUT

$3.49

$

Usually ships in 3-6 days

0

22

Honda 90401-ZA1-003

WASHER, STEEL PLATE (NOT AVAILABLE)

Note: Use up to Engine SN 1244181.

$

$

Currently unavailable

23

Honda 90402-ZA1-003

WASHER

$

$

Currently unavailable

24

Honda 90403-ZA1-003

WASHER

$3.49

$

Usually ships in 3-6 days

0

25

Honda 31212-HA0-682

O-RING

$

$

Not available

26

Honda 91302-ZA1-013

O-RING

$2.49

$

Usually ships in 3-6 days

0

27

Honda 91303-ZA1-003

O-RING

$3.49

$

Usually ships in 3-6 days

0

28

Honda 94050-05000

NUT, FLANGE (5MM)

$1.99

$

In Stock, Qty 20+

0

29

Honda 94103-05000

WASHER, PLAIN (5MM)

$0.99

$

In Stock, only 4 left!

0

30

Honda 94301-10160

PIN, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

31

Honda 95701-08040-08

BOLT, FLANGE (8X40)

$2.99

$

Usually ships in 3-6 days

0
