GXV390 DAA (GJAA) - Honda Engine, Made in Japan (SN: GJAA-2000001 - GJAA-2999999) FAN COVER Parts Diagram

Engine, Made in Japan

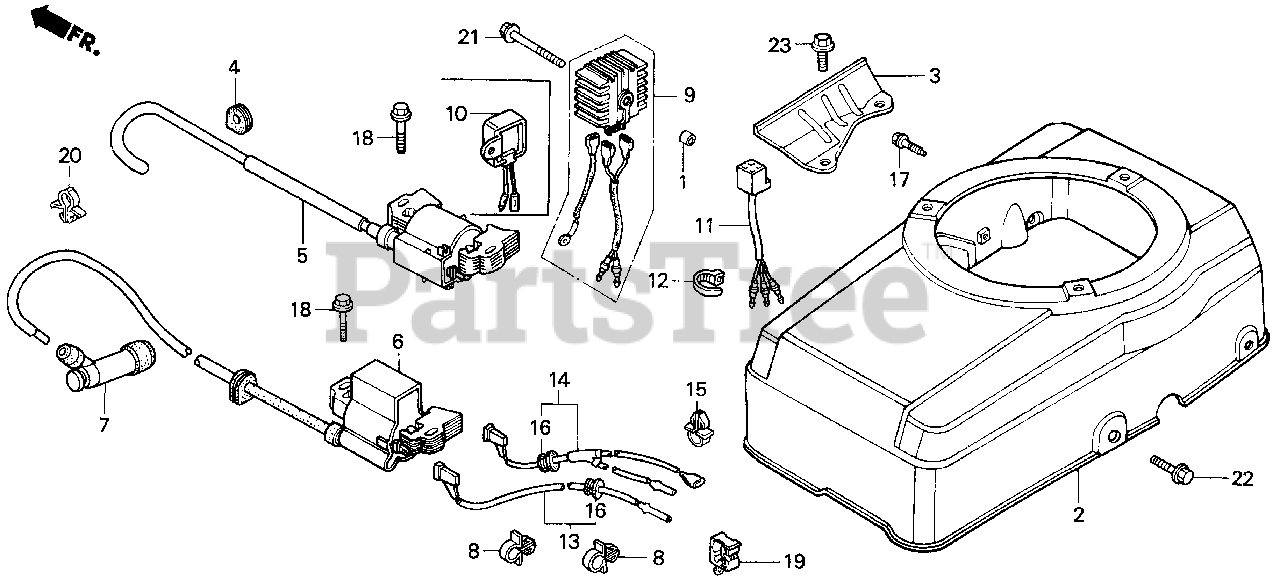

FAN COVER Parts Diagram

  • Title

1

Honda 17239-ZE8-700

SPACER, AIR CLEANER ELBOW (Honda Code 2090223).

$5.99

$

Usually ships in 3-6 days

0

2

Honda 19610-ZF5-801ZB

COVER, FAN *NH1* (Honda Code 4542924). (BLACK)

$134.99

$

Usually ships in 3-6 days

0

4

Honda 19613-ZA8-000

GROMMET, WIRE (Honda Code 1787951).

$3.99

$

Usually ships in 3-6 days

0

5

Honda 30500-ZE9-L32

SEE PART DETAILS - SUP; COIL ASSY., IGNITION (Honda Code 4542528).
(Superseded to 30500-Z1C-023)

$56.99

$

In Stock, only 3 left!

0

5

Honda 30500-ZE9-L33

SEE PART DETAILS - PRI; COIL ASSY., IGNITION (Honda Code 7088255).
(Superseded to 30500-Z1C-023)

$56.99

$

In Stock, only 3 left!

0

7

Honda 30700-ZF5-013

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR (Honda Code 3803467).

$24.99

$

In Stock, only 1 left!

0

8

Honda 30701-883-000

CLIP, IGNITION WIRE (8MM) (Honda Code 0636787).

$3.99

$

In Stock, only 1 left!

0

9

Honda 31700-ZE8-901

RECTIFIER ASSY., SILICON (Honda Code 2324176).

$121.99

$

Usually ships in 3-6 days

0

11

Honda 32105-ZF5-U10

SUB-WIRE HARNESS ASSY. (AYP) (Honda Code 4728606).

$

$

Not available

12

Honda 32161-404-610

BAND B1, CABLE (Honda Code 0637728).

$2.99

$

Usually ships in 3-6 days

0

13

Honda 36101-ZF5-U10

WIRE, STOP SWITCH (AYP) (Honda Code 4542965).

$

$

Not available

16

Honda 80101-166-000

GROMMET, WIRE (Honda Code 1085471).

$3.49

$

Usually ships in 3-6 days

0

17

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 11

0

18

Honda 90015-883-000

BOLT, FLANGE (6X28) (Honda Code 0636852).

$3.99

$

In Stock, Qty 5

0

21

Honda 95701-06040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X40) (Honda Code 2410942).

$2.49

$

Usually ships in 3-6 days

0

22

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) (Honda Code 2298396).

$2.49

$

In Stock, Qty 20+

0
