GXV390 K1 DAA (GJAA) - Honda Engine, Made in USA (SN: GJAA-6000001 - GJAA-9999999) FAN COVER (1) Parts Diagram

Engine, Made in USA

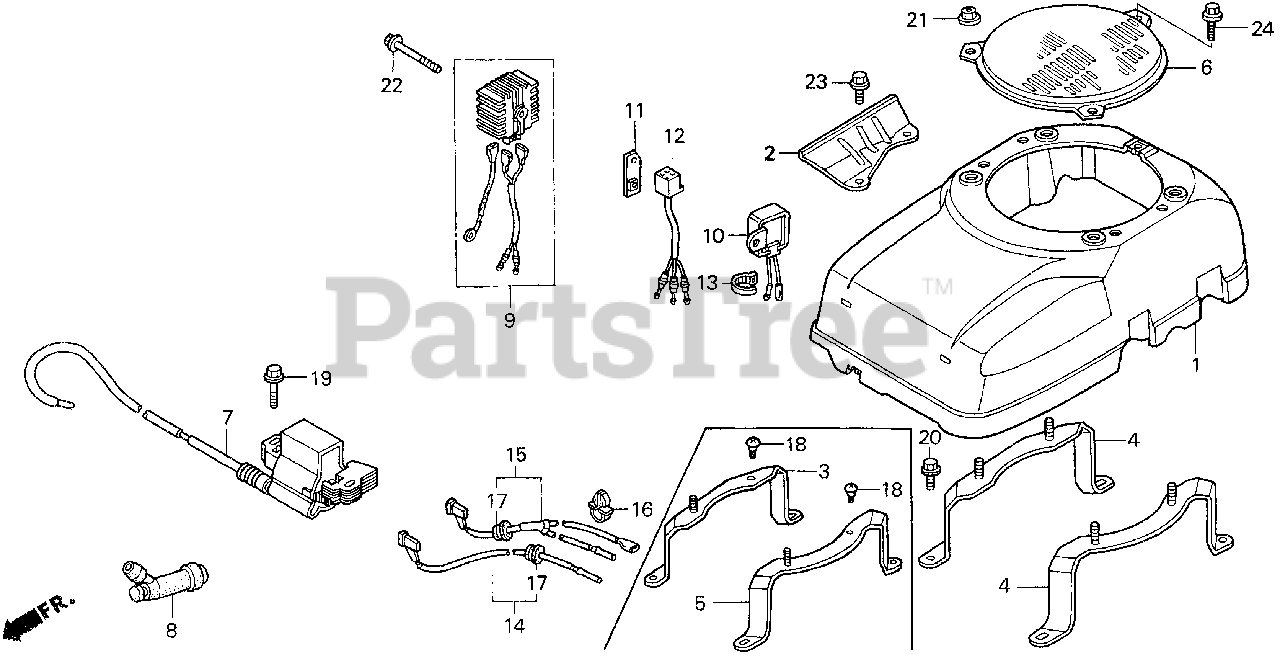

FAN COVER (1) Parts Diagram

  • Title

1

Honda 19610-ZF5-V30ZA

COVER COMP., FAN *R8* (BRIGHT RED)

Note: Use up to Engine SN 6030327. (Honda Code 5794342).

$

$

Currently unavailable

1

Honda 19610-ZF5-V30ZB

COVER COMP., FAN *NH1* (BLACK)

Note: Use up to Engine SN 6030327. (Honda Code 5738299).

$

$

Currently unavailable

1

Honda 19610-ZF5-V31ZA

COVER COMP., FAN *R8* (BRIGHT RED)

Note: Use from Engine SN 6030328. (Honda Code 6188411).

$19.99

$

Usually ships in 3-6 days

0

1

Honda 19610-ZF5-V31ZB

COVER COMP., FAN *NH1* (BLACK)

Note: (Honda Code 6188437).

$128.99

$

Usually ships in 3-6 days

0

3

Honda 19617-ZE9-V00

BRACKET, R. FAN COVER

Note: (Honda Code 4924460).

$

$

Not available

5

Honda 19627-ZE9-V00

BRACKET, L. FAN COVER

Note: (Honda Code 4924478).

$71.99

$

Usually ships in 3-6 days

0

6

Honda 28456-ZF5-V00ZA

COVER, SCREEN *NH1* (BLACK)

Note: (Honda Code 5668553).

$11.99

$

Usually ships in 3-6 days

0

6

Honda 28456-ZF5-V00ZB

COVER, SCREEN *R8* (BRIGHT RED)

Note: (Honda Code 5668561).

$

$

Not available

7

Honda 30500-ZE9-L32

SEE PART DETAILS - SUP; COIL ASSY., IGNITION
(Superseded to 30500-Z1C-023)

Note: (Honda Code 4542528).

$56.99

$

In Stock, only 3 left!

0

8

Honda 30700-ZF5-013

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR

Note: (Honda Code 3803467).

$24.99

$

In Stock, only 1 left!

0

9

Honda 31700-ZE8-901

RECTIFIER ASSY., SILICON

Note: (Honda Code 2324176).

$121.99

$

Usually ships in 3-6 days

0

11

Honda 31717-ZF5-V00

BRACKET, RECTIFIER

Note: (Honda Code 4924486).

$94.99

$

Usually ships in 3-6 days

0

12

Honda 32105-ZF5-U10

SUB-WIRE HARNESS ASSY. (AYP)

Note: (Honda Code 4728606).

$

$

Not available

13

Honda 32161-404-610

BAND B1, CABLE

Note: (Honda Code 0637728).

$2.99

$

Usually ships in 3-6 days

0

14

Honda 36101-ZF5-U10

WIRE, STOP SWITCH (AYP)

Note: (Honda Code 4542965).

$

$

Not available

17

Honda 80101-166-000

GROMMET, WIRE

Note: (Honda Code 1085471).

$3.49

$

Usually ships in 3-6 days

0

18

Honda 90006-ZF5-V00

SCREW, SPECIAL (6X8)

Note: (Honda Code 4949939).

$2.99

$

Usually ships in 3-6 days

0

19

Honda 90015-883-000

BOLT, FLANGE (6X28)

Note: (Honda Code 0636852).

$3.99

$

In Stock, Qty 5

0

20

Honda 90029-888-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

Note: (Honda Code 0747733).

$2.99

$

Usually ships in 3-6 days

0

21

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

22

Honda 95701-06032-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32)

Note: (Honda Code 2105856).

$2.49

$

In Stock, Qty 5

0

24

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

Note: (Honda Code 2410876).

$1.99

$

In Stock, Qty 20+

0
