GXV390 K1 DP23 (GEAD) - Honda Engine, Made in USA (SN: GEAD-6000001 - GEAD-9999999) FLYWHEEL Parts Diagram

Engine, Made in USA

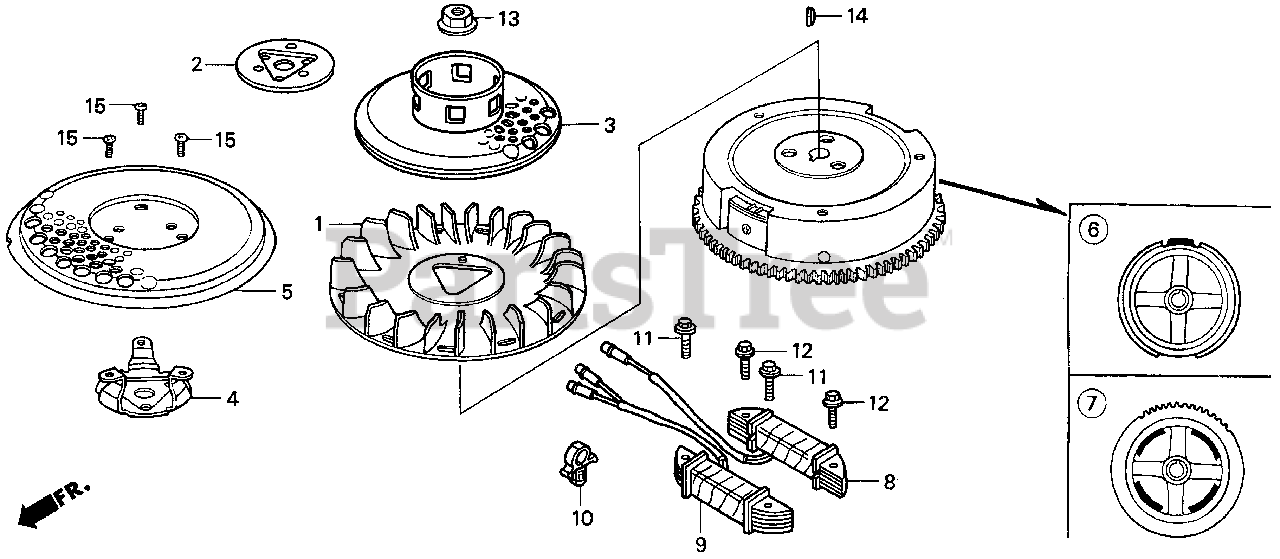

FLYWHEEL Parts Diagram

  • Title

1

Honda 19511-ZE9-010

SEE PART DETAILS - PRI; FAN, COOLING
(Superseded to 19511-ZE9-020)

Note: (Honda Code 2485407).

$9.99

$

Usually ships in 3-6 days

0

2

Honda 19512-ZE2-000

PLATE, COOLING FAN SETTING

Note: (Honda Code 2297414).

$11.99

$

In Stock, only 1 left!

0

6

Honda 31100-ZE9-804

SEE PART DETAILS - PRI; FLYWHEEL COMP.

Note: (Honda Code 5335914).

$

$

Not available

8

Honda 31510-ZE8-901

COIL ASSY., CHARGE

Note: (Honda Code 2324168).

$72.99

$

Usually ships in 3-6 days

0

10

Honda 46391-VM0-003

CLIP, BRAKE PIPE (A)

Note: (Honda Code 1769652).

$3.49

$

Usually ships in 3-6 days

0

12

Honda 90015-883-000

BOLT, FLANGE (6X28)

Note: (Honda Code 0636852).

$3.99

$

In Stock, Qty 5

0

13

Honda 90201-ZE3-V00

NUT, SPECIAL (16MM) (1)

Note: (Honda Code 5032727).

$9.99

$

Usually ships in 3-6 days

0

14

Honda 90741-ZE2-000

KEY, SPECIAL WOODRUFF (25X18)

Note: (Honda Code 2027159).

$3.99

$

In Stock, only 2 left!

0
