GXV670 R TAF2 (GJAHK) - Honda Engine, Made in Japan (SN: GJAHK-1000001 - GJAHK-9999999) FUEL PUMP (TAF2) Parts Diagram

Engine, Made in Japan

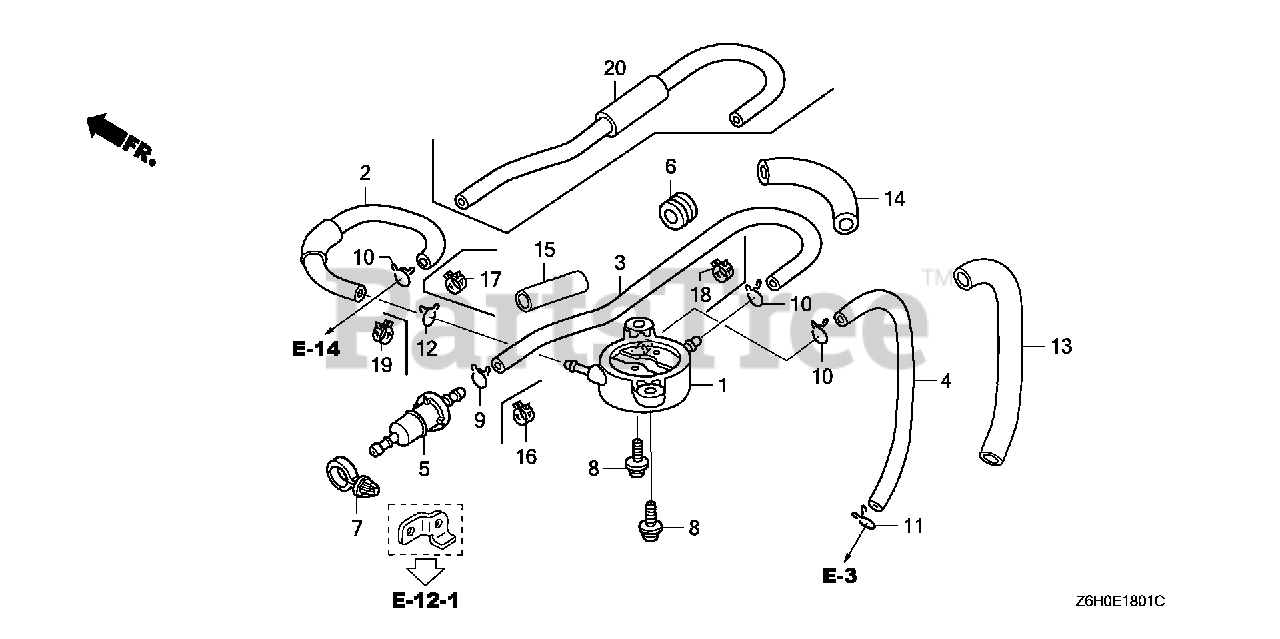

FUEL PUMP (TAF2) Parts Diagram

  • Title

1

Honda 16700-ZL8-013

SEE PART DETAILS - SUP; PUMP ASSY., FUEL
(Superseded to 16700-Z0J-003)

$92.99

$

Usually ships in 3-6 days

0

1

Honda 16700-Z0J-003

SEE PART DETAILS - PRI; PUMP ASSY., FUEL

$92.99

$

Usually ships in 3-6 days

0

2

Honda 16850-Z6H-U12

SEE PART DETAILS - PRI; TUBE, FUEL (FKM)

Note: Use up to Engine SN 1002512.

$21.99

$

Usually ships in 3-6 days

0

2

Honda 16850-Z6H-U12

SEE PART DETAILS - PRI; TUBE, FUEL (FKM)

Note: Use from Engine SN 1002513.

$21.99

$

Usually ships in 3-6 days

0

4

Honda 16882-ZJ1-840

TUBE, DIAPHRAGM

$6.49

$

In Stock, only 1 left!

0

5

Honda 16910-ZE8-015

STRAINER, FUEL

$14.99

$

In Stock, Qty 5

0

6

Honda 19111-MF5-000

GROMMET, RESERVE TANK

$3.99

$

Usually ships in 3-6 days

0

7

Honda 90617-SA0-003

CLIP, WIRE HARNESS

$5.99

$

Usually ships in 3-6 days

0

8

Honda 93894-06016-00

SCREW-WASHER (6X16)

$0.99

$

In Stock, only 4 left!

0

10

Honda 95002-02100

CLIP, TUBE (B10)

$2.49

$

In Stock, Qty 14

0

11

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

13

Honda 95003-25003-10M

BULK HOSE, VINYL (9X11X3000) (9X11X150)

$21.99

$

Usually ships in 3-6 days

0

14

Honda 95003-36003-10M

BULK HOSE, VINYL (11X13X3000) (11X13X50)

$

$

Currently unavailable

15

Honda 95003-36003-10M

BULK HOSE, VINYL (11X13X3000) (11X13X30)

$

$

Currently unavailable

16

Honda 95002-40800-08

CLAMP, TUBE (D8)

$2.99

$

In Stock, Qty 15

0

17

Honda 95002-41000-08

CLAMP, TUBE (D10)

$3.49

$

In Stock, only 3 left!

0

18

Honda 95002-40850-08

CLAMP, TUBE (D8.5)

$3.49

$

In Stock, Qty 10

0

19

Honda 95002-41000-08

CLAMP, TUBE (D10)

$3.49

$

In Stock, only 3 left!

0

20

Honda 16855-Z6H-013

TUBE B, FUEL (FKM)

Note: Use up to Engine SN 1002625.

$29.99

$

Usually ships in 3-6 days

0

20

Honda 16855-Z6H-013

TUBE B, FUEL (FKM)

Note: Use from Engine SN 1002626.

$29.99

$

Usually ships in 3-6 days

0
