H 1536 (55AI4HPR050) - Cub Cadet Walk-Behind Mower Kawasaki FH430V-CS26 Carburetor Parts Diagram

Walk-Behind Mower

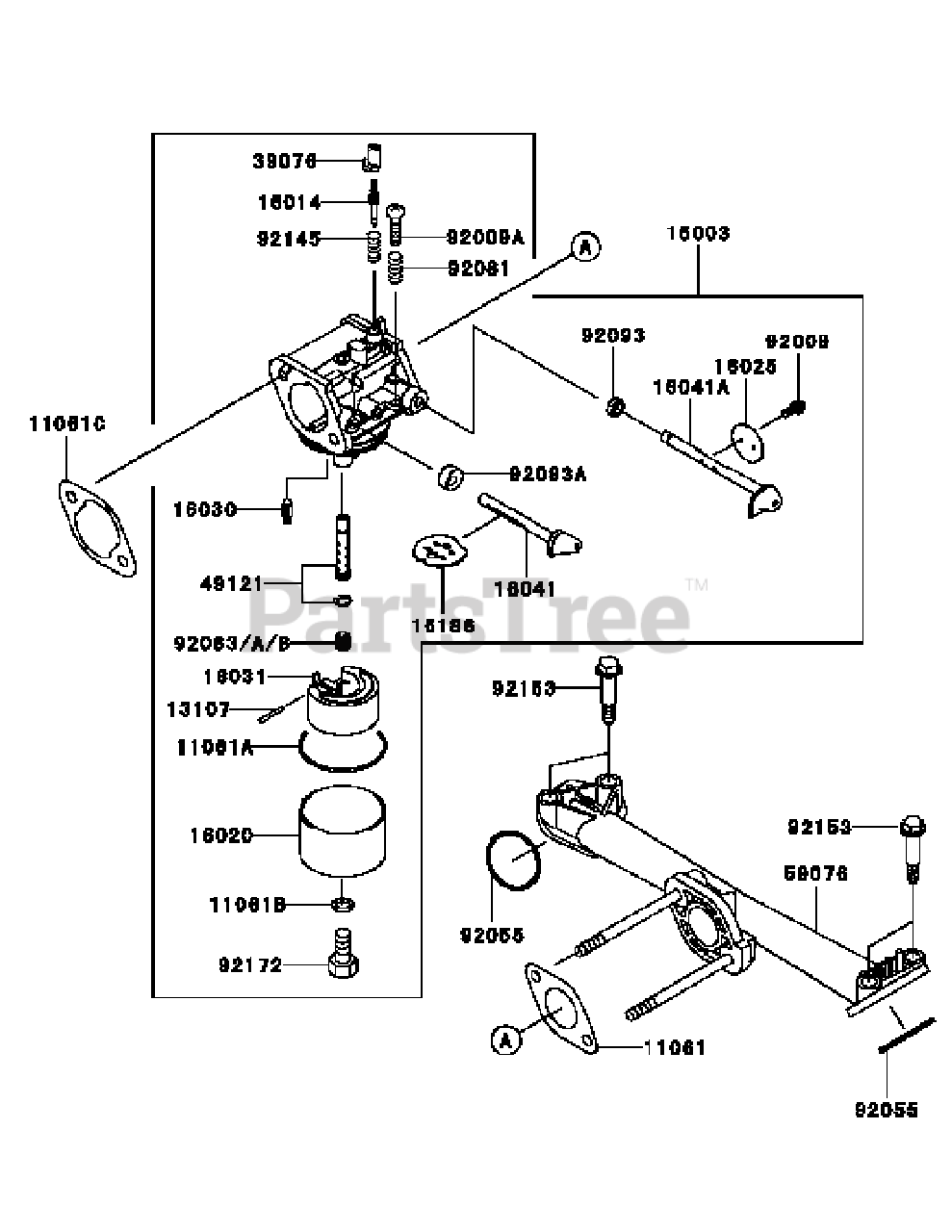

Kawasaki FH430V-CS26 Carburetor Parts Diagram

  • Title

11061

Cub Cadet KM-11061-7004

GASKET,INSULATOR

$2.49

$

In Stock, Qty 20+

0

11061A

Cub Cadet KM-11061-7009

GASKET,CHAMBER

$2.99

$

In Stock, Qty 20+

0

11061B

Cub Cadet KM-11061-7010

GASKET,SCREW

$3.49

$

In Stock, Qty 20+

0

11061C

Cub Cadet KM-11061-7018

GASKET,AIR CLEANER

$3.99

$

In Stock, Qty 20+

0

13107

Cub Cadet KM-13107-7018

SHAFT

$4.49

$

In Stock, Qty 6

0

15003

Cub Cadet KM-15003-7061

CARBURETOR-ASSY

$275.99

$

Usually ships in 2-5 days

0

16014

Cub Cadet KM-16014-7002

SCREW-PILOT AIR
(Superseded to KM-16014-7005)

$14.99

$

In Stock, only 1 left!

0

16020

Cub Cadet KM-16020-7003

CHAMBER-FLOAT

$14.99

$

In Stock, only 4 left!

0

16025

Cub Cadet KM-16025-7006

VALVE-THROTTLE

$17.99

$

In Stock, Qty 5

0

16030

Cub Cadet KM-16030-7003

VALVE-FLOAT

$20.99

$

In Stock, Qty 12

0

16031

Cub Cadet KM-16031-7002

FLOAT

$28.99

$

In Stock, Qty 6

0

16041

Cub Cadet KM-16041-7016

SHAFT-CARBURETOR, CHOKE

$15.99

$

In Stock, only 4 left!

0

16041A

Cub Cadet KM-16041-7018

SHAFT-CARBURETOR, THROTTLE

$22.99

$

In Stock, Qty 5

0

16186

Cub Cadet KM-16186-7002

VALVE-ASSY-CHOKE

$13.99

$

Usually ships in 2-5 days

0

39076

Cub Cadet KM-39076-7001

LIMITER

$8.49

$

In Stock, only 3 left!

0

49121

Cub Cadet KM-49121-7001

NOZZLE-MAIN

$34.99

$

In Stock, only 1 left!

0

59076

Cub Cadet KM-59076-7005

MANIFOLD-INTAKE

$75.99

$

Usually ships in 2-5 days

0

92009

Cub Cadet KM-92009-2083

SCREW

$2.49

$

In Stock, Qty 11

0

92009A

Cub Cadet KM-92009-2349

SCREW

$1.49

$

In Stock, Qty 5

0

92055

Cub Cadet KM-92055-7007

RING-O,ID=31

$0.99

$

In Stock, Qty 20+

0

92063

Cub Cadet KM-92063-7026

JET-MAIN,#88

$16.99

$

Usually ships in 2-5 days

0

92063A

Cub Cadet KM-92063-7028

JET-MAIN,#85,3280FT

Note: (as required)

$12.99

$

Usually ships in 2-5 days

0

92063B

Cub Cadet KM-92063-7029

JET-MAIN,#82,6560FT

Note: (as required)

$16.99

$

Usually ships in 2-5 days

0

92081

Cub Cadet KM-92081-2234

SPRING

$4.49

$

In Stock, Qty 5

0

92093

Cub Cadet KM-92093-2100

SEAL

$3.49

$

In Stock, Qty 14

0

92093A

Cub Cadet KM-92093-7003

SEAL

$4.49

$

In Stock, only 1 left!

0

92145

Cub Cadet KM-92145-7015

SPRING

$2.49

$

In Stock, Qty 9

0

92153

Cub Cadet KM-92153-7009

BOLT

$0.99

$

Usually ships in 2-5 days

0

92172

Cub Cadet KM-92172-7002

SCREW

$7.49

$

In Stock, Qty 7

0
