H 1536 (55AI4HPR050) - Cub Cadet Walk-Behind Mower Spindle Assembly 36-Inch Parts Diagram

Walk-Behind Mower

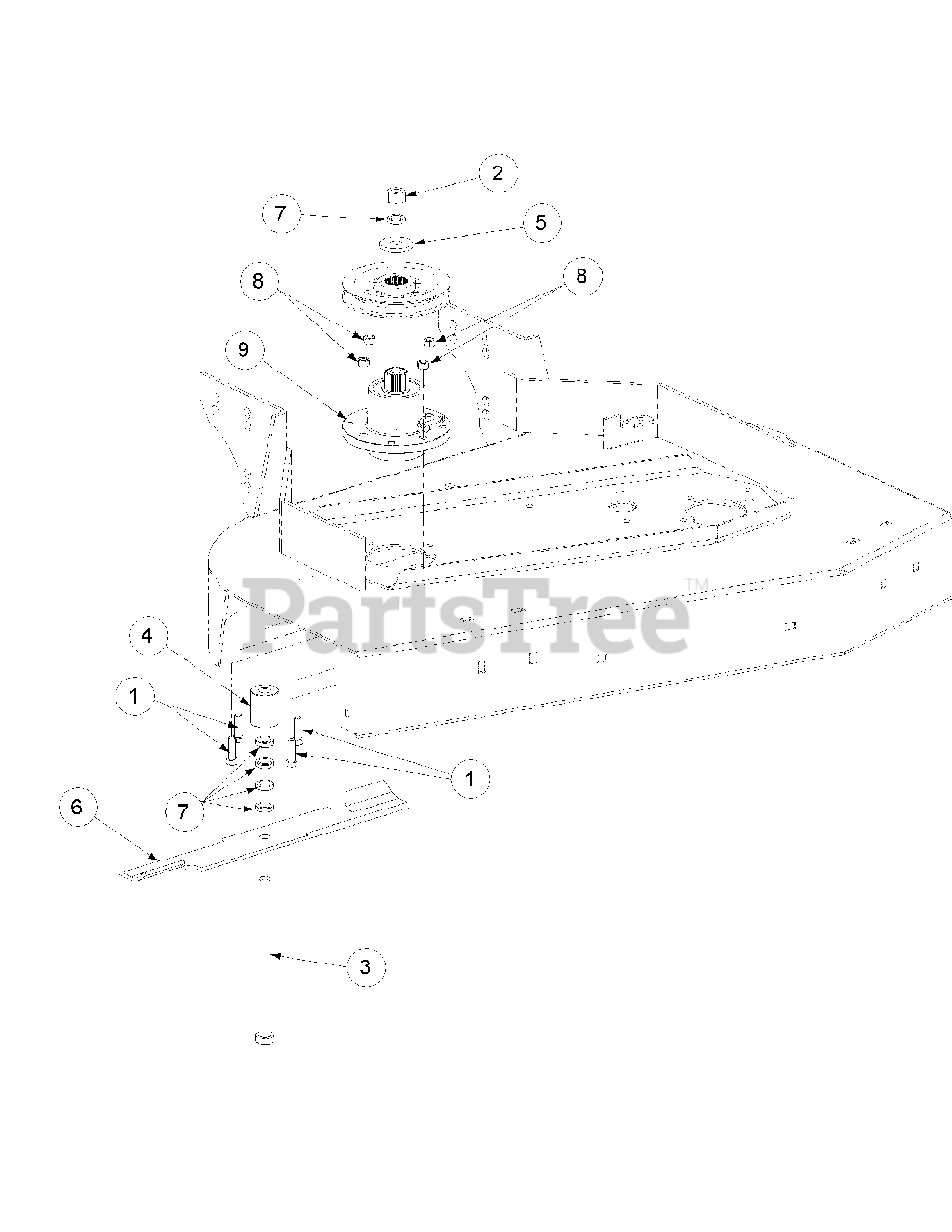

Spindle Assembly 36-Inch Parts Diagram

  • Title
1

Cub Cadet 00010980

Hex Cap Screw, 3/8-16 x 1-1/2

$6.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 00011807

Hex Nut, 5/8-11

$

$

Not available

3

Cub Cadet 01007591P

Hex Cap Screw, 5/8-11 x 9

$

$

Not available

4

Cub Cadet 01007577P

Blade Spacer, .630 x 1.500 x 1.850

$28.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 01007595P

Flat Washer, .656 ID x 1.313 OD

$17.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 00050125

18" Rotary Blade Blade

$45.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 00021924

Spacer, 5/8 ID, 1/4 Thick

$

$

Not available

8

Cub Cadet 712-04065

Hex Nut Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 01007491P

Spindle Assembly

$352.99

$

Usually ships in 3-6 days

0

Cub Cadet 01007642

Grease Fitting, 1/4-28 x 1.609
(Superseded to 737-04352)

Note: Not shown

$15.99

$

Usually ships in 3-6 days

0
