H 1548 (55AE332S150) - Cub Cadet Walk-Behind Mower Hydro Pump Assembly Parts Diagram

Walk-Behind Mower

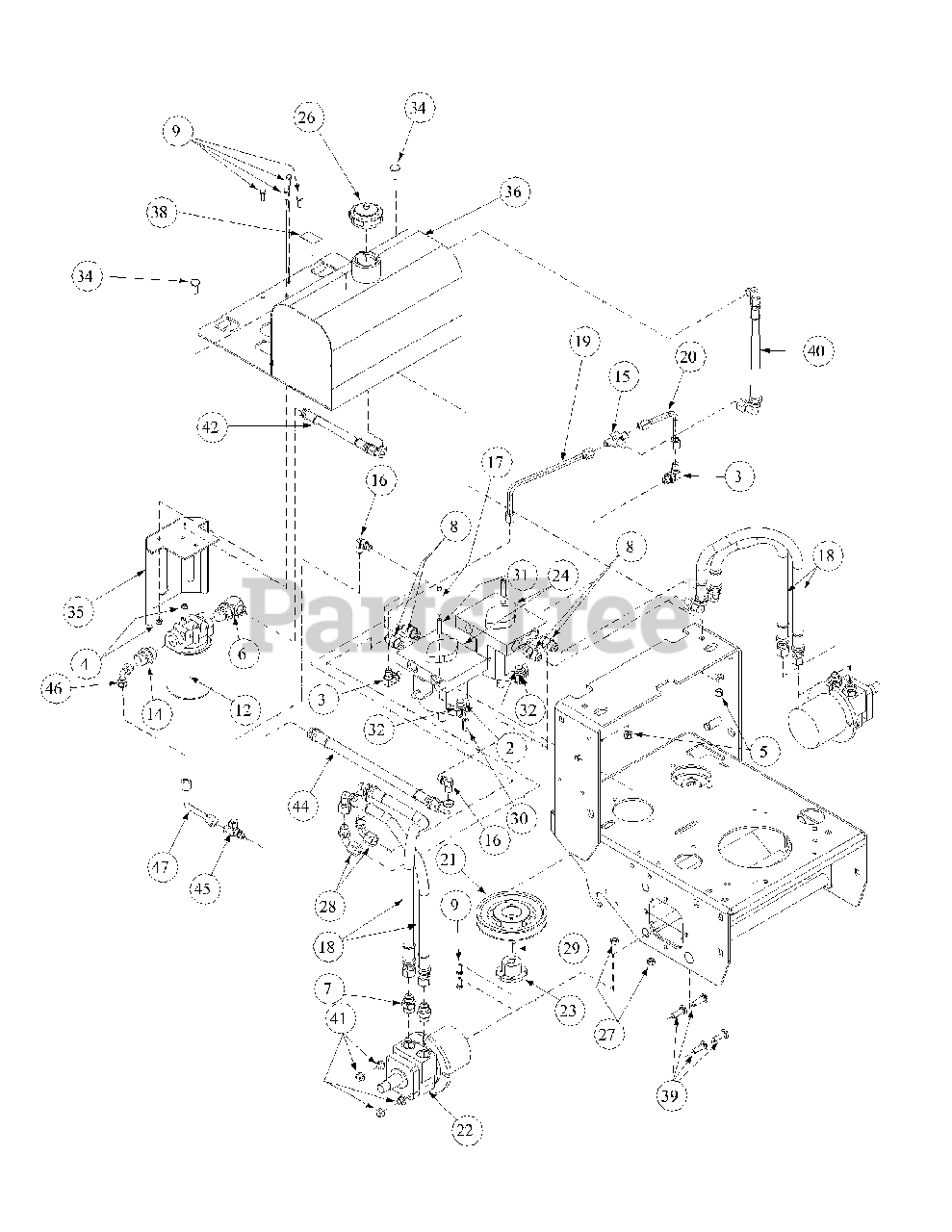

Hydro Pump Assembly Parts Diagram

  • Title

2

Cub Cadet 00011444

Cap Screw, Standard, 3/8-16 x 1-1/4

$4.49

$

In Stock, Qty 9

0

3

Cub Cadet 00012078

Fitting, Aeroquip

$

$

Not available

5

Cub Cadet 712-04065

Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 00012269

Elbow 90° 1/2 x 3/4

$

$

Not available

7

Cub Cadet 00012288

Fitting, Aeroquip

$

$

Not available

8

Cub Cadet 00012426

Fitting, Aeroquip

$12.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 00013131

Cap Screw, 1/4-20 x 3/4

$6.49

$

In Stock, only 1 left!

0

12

Cub Cadet 00017665P

Filter Head 3/4

$

$

Not available

12

Cub Cadet 01004166

Oil Filter

$47.99

$

In Stock, Qty 12

0

14

Cub Cadet 00018068

Straight Connector 1/2 x 3/4

$

$

Not available

15

Cub Cadet 00018407

Fitting Aeroquip

$

$

Not available

16

Cub Cadet 00018443

Fitting, Aeroquip

$

$

Not available

17

Cub Cadet 00019962

Cap Screw, Socket Head, 1/4-20 x 2-1/2 Zinc

$

$

Not available

18

Cub Cadet 00021609

Hydro Hose Assembly, Reverse Pressure

$103.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 00021612

Hydraulic Line, Pump Return Long

$

$

Not available

20

Cub Cadet 00021613

Hydraulic Line, Pump Return Short

$

$

Not available

21

Cub Cadet 00021970

Deck Pulley

$112.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 00024060P

Hydraulic Motor, Wheel

$1140.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 00024061

Bushing, 15mm Bore, Split, Type "D"

$

$

Not available

24

Cub Cadet 00024090P

Pump Hydro BDP10L117

$

$

Not available

26

Cub Cadet 00030261

Cap, Hydraulic Oil Tank

$34.99

$

In Stock, only 1 left!

0

27

Cub Cadet 00034224

Lock Nut, 3/8-16

$

$

Not available

28

Cub Cadet 00042074

Fitting Aeorquip

$

$

Not available

29

Cub Cadet 00071204

Pump Key

$

$

Not available

30

Cub Cadet 00071482

Nut, Pump Release

$

$

Not available

31

Cub Cadet 00072141

Spacer, Pump Release

$

$

Not available

32

Cub Cadet 00083192

Washer, Idler
(Superseded to 736-0258)

$4.49

$

In Stock, Qty 11

0

34

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 2

$5.49

$

In Stock, Qty 9

0

35

Cub Cadet 01001087-0637

Filter Guard

$

$

Not available

36

Cub Cadet 01070682

Fuel Tank Mounting Plate

Note: NLA

$

$

Currently unavailable

38

Cub Cadet 00031994

Oil Label, 20W-50

$

$

Not available

39

Cub Cadet 710-3034

Carriage Bolt, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 7

0

40

Cub Cadet 01002305

Hose Assembly

$

$

Not available

41

Cub Cadet 00022560

Hex Nut, Flange Lock, 3/8-16
(Superseded to 712-05007)

$3.99

$

In Stock, Qty 20+

0

42

Cub Cadet 01002294

Hose, Filter to Tank

$

$

Not available

44

Cub Cadet 00046295

Hose Pump to Swing Valve

$

$

Not available

45

Cub Cadet 00012387

Fitting, Aeroquips

$

$

Not available

46

Cub Cadet 00012070

Union Hydraulic Flare, 9/16-18

$

$

Not available

47

Cub Cadet 00021611

Hydraulic Line, Supply Pump Short

$

$

Not available
