H 1730E HD (1696706-00) - Snapper 30" Snow Thrower, 16.5hp Chute & Rotation Group Parts Diagram

30" Snow Thrower, 16.5hp

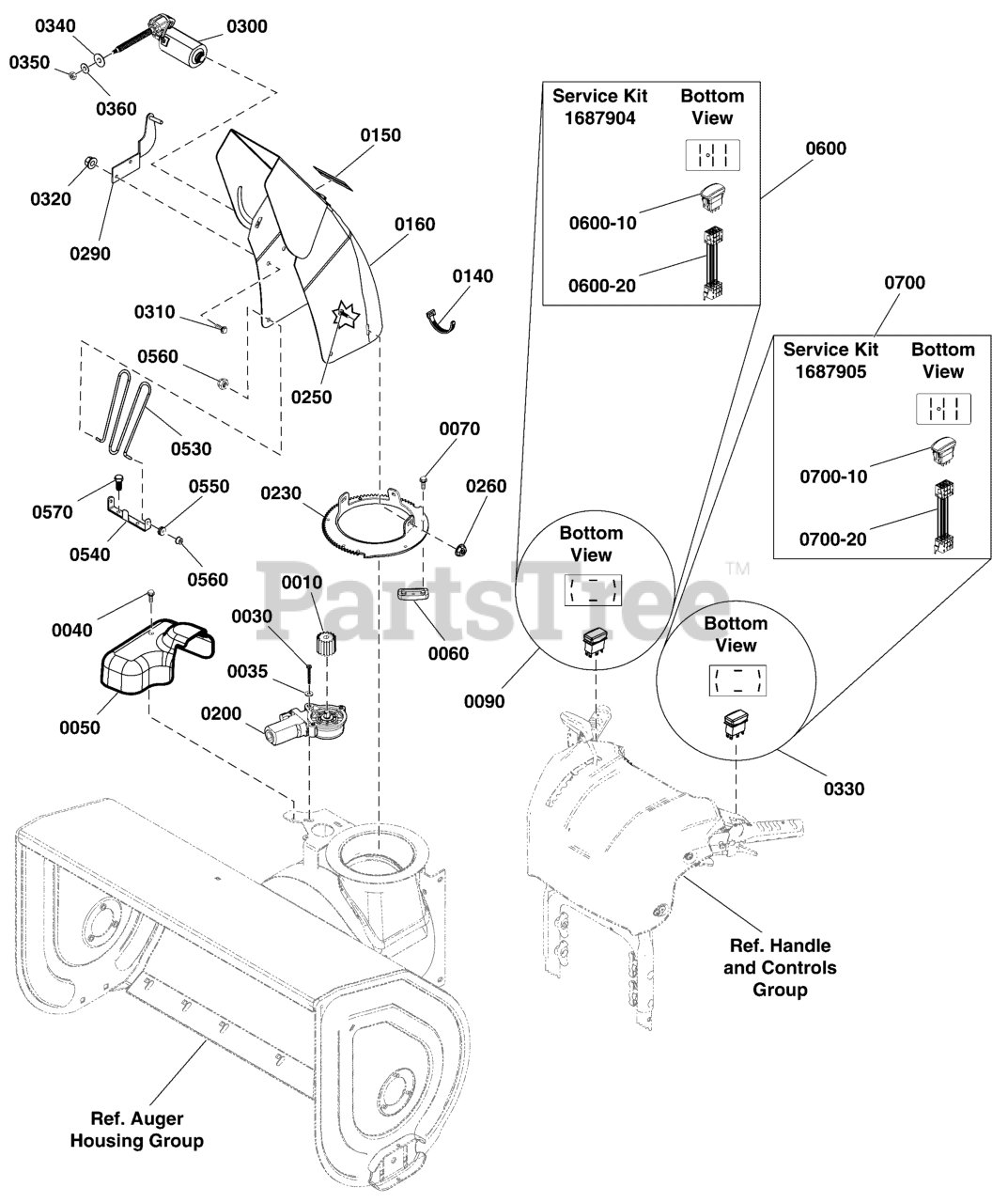

Chute & Rotation Group Parts Diagram

  • Title

0010

Snapper 1728967SM

PINION

$17.99

$

In Stock, Qty 11

0

0030

Snapper 1739621YP

SCREW, Torx Button Head, M5 x .8 x 14

$4.49

$

In Stock, Qty 6

0

0035

Snapper 7091552SM

WASHER, Flat, 7/32

$3.99

$

In Stock, only 4 left!

0

0040

Snapper 1925592SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, only 2 left!

0

0050

Snapper 1752877YP

COVER, Electric Chute Rotation

$16.99

$

In Stock, only 4 left!

0

0060

Snapper 7011938SM

RETAINER, Spout

$

$

Not available

0070

Snapper 1960001SM

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, Qty 20+

0

0090

Snapper 1737378YP

SWITCH, Chute Rotation
(Superseded to 1687904)

Note: (Used Before Serial No. 2017430819) (Order 0600 When Bottom View of Switch Terminal Pattern Matches 0090.)

$82.99

$

In Stock, Qty 10

0

0140

Snapper 1701011SM

TIE, Self Lock

$5.49

$

In Stock, only 2 left!

0

0150

Snapper 1733601SM

DECAL, Hinge

$12.99

$

In Stock, only 1 left!

0

0160

Snapper 1752841BIYP

CHUTE, Tall

$159.99

$

Usually ships in 2-12 days

0

0200

Snapper 1739309YP

MOTOR, Chute Rotation
(Superseded to 708703)

$86.99

$

In Stock, Qty 20+

0

0230

Snapper 1737962BMYP

GEAR, Chute

$40.99

$

Usually ships in 2-12 days

0

0250

Snapper 1931317SM

BOLT, Carriage, Short Neck, 1/4-20 x 3/4, G5
(Superseded to 703101)

$3.99

$

In Stock, Qty 5

0

0260

Snapper 1960685SM

NUT, Hex, KEPS, Conical, 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, only 3 left!

0

0290

Snapper 1738267BMYP

BRACKET, Weld Stud

$30.99

$

Usually ships in 2-12 days

0

0300

Snapper 1737941YP

MOTOR, Chute Deflector

$143.99

$

Usually ships in 2-12 days

0

0310

Snapper 1960715SM

SCREW, Truss Head, Torx Drive, 1/4-20 x 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 14

0

0320

Snapper 1960694SM

NUT, Hex Flange, ESNA, 1/4-20
(Superseded to 703463)

$4.49

$

In Stock, only 3 left!

0

0330

Snapper 1737379YP

SWITCH, Chute Deflector
(Superseded to 1687905)

Note: (Used Before Serial No. 2017430819) (Order 0700 When Bottom View of Switch Terminal Pattern Matches 0330.)

$82.99

$

In Stock, Qty 17

0

0340

Snapper 1738244YP

WASHER, Rubber

$4.49

$

In Stock, only 1 left!

0

0350

Snapper 1738245YP

NUT, 1/4-20, LH
(Superseded to 703143)

$3.49

$

In Stock, Qty 6

0

0360

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 11

0

0530

Snapper 1733475SM

GUARD, Chute

$21.99

$

Usually ships in 2-12 days

0

0540

Snapper 1752883YP

BRACKET, Chute Guard

$15.99

$

Usually ships in 2-12 days

0

0550

Snapper 1738174YP

GROMMET

$4.49

$

Usually ships in 2-12 days

0

0560

Snapper 1960140SM

NUT, Push, 3/16

$3.49

$

Usually ships in 2-12 days

0

0570

Snapper 1925003SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0600

Snapper 1687904

WIRE HARNESS ADAPTER KIT, CHUTE ROTATION

Note: (Used Before Serial No. 2017430819) (Order 0600-10 When Bottom View of Switch Terminal Pattern Matches 0600.)

$82.99

$

In Stock, Qty 10

0

0600-10

Snapper 709954

SWITCH, Chute Rotation

Note: (Used After Serial No. 2017430818)

$46.99

$

In Stock, only 1 left!

0

0600-20

Snapper 84003010

HARNESS, Wire

Note: (Used Before Serial No. 2017430819)

$45.99

$

In Stock, only 1 left!

0

0700

Snapper 1687905

WIRE HARNESS ADAPTER KIT, DEFLECTOR CONT

Note: (Used Before Serial No. 2017430819) (Order 0700-10 When Bottom View of Switch Terminal Pattern Matches 0700.)

$82.99

$

In Stock, Qty 17

0

0700-10

Snapper 709955

SWITCH, Deflector Control

Note: (Used After Serial No. 2017430818)

$35.99

$

In Stock, only 1 left!

0

0700-20

Snapper 84003010

HARNESS, Wire

Note: (Used Before Serial No. 2017430819)

$45.99

$

In Stock, only 1 left!

0
