H 1748 (55AE3D4S150) - Cub Cadet Walk-Behind Mower (2003) FH500V-AS14 Carburetor Parts Diagram

Walk-Behind Mower

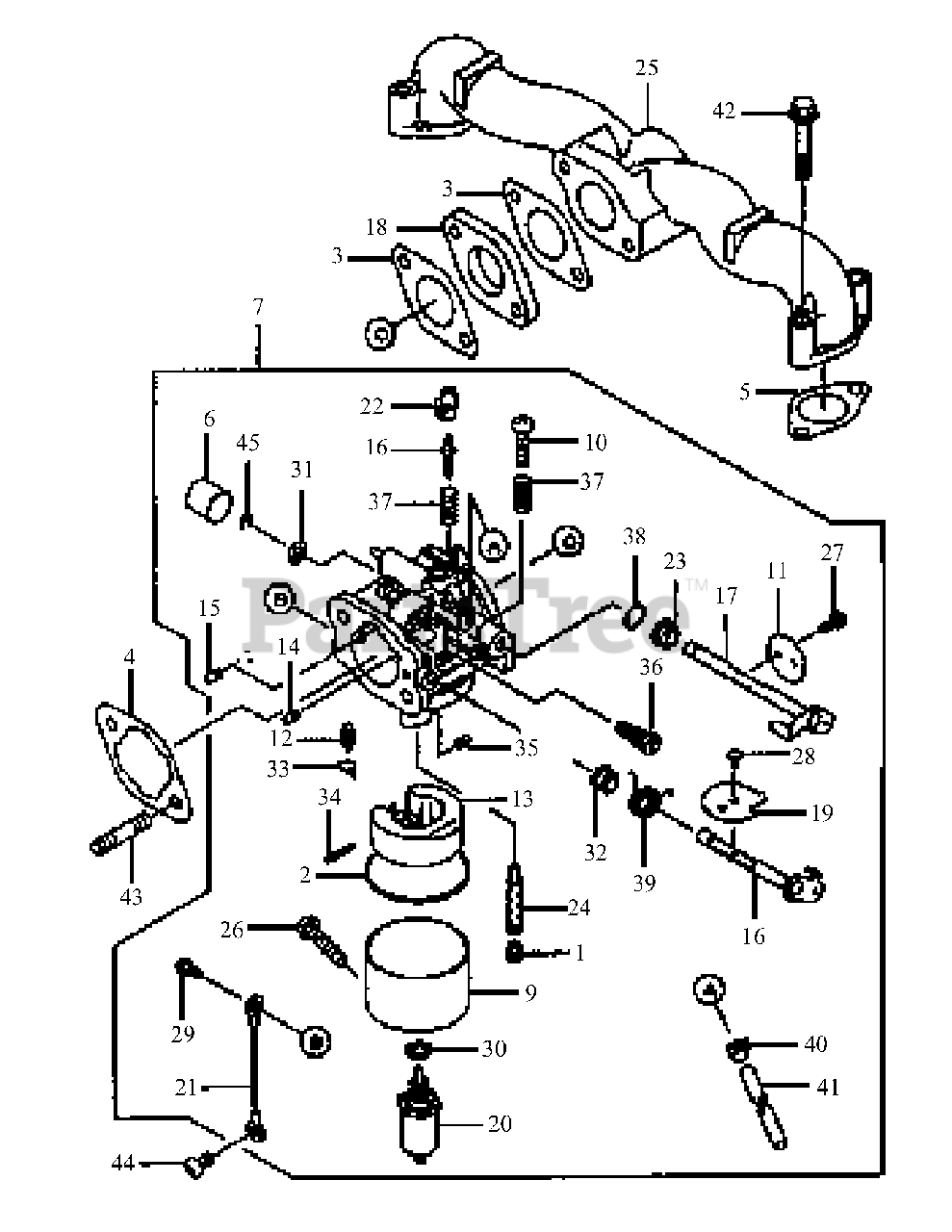

FH500V-AS14 Carburetor Parts Diagram

  • Title

1

Cub Cadet KM-11003-2105

Seat, Valve

$13.99

$

In Stock, Qty 5

0

2

Cub Cadet KM-11060-2406

Gasket

$4.99

$

In Stock, Qty 5

0

3

Cub Cadet KM-11061-7004

Gasket, Insulator

$2.49

$

In Stock, Qty 20+

0

4

Cub Cadet KM-11061-7018

Gasket, Air Filter

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet KM-11061-7019

Gasket

$2.49

$

In Stock, Qty 20+

0

6

Cub Cadet KM-11065-2061

Cap

$1.49

$

In Stock, only 1 left!

0

7

Cub Cadet KM-99996-6055

Carburetor Assembly

$268.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KM-16014-2080

Screw, Pilot-Air

$

$

Not available

9

Cub Cadet KM-16020-2141

Chamber, Float

$50.99

$

In Stock, only 1 left!

0

10

Cub Cadet KM-16021-2060

Screw, Throttle Stop

$5.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KM-16025-2193

Valve, Throttle

$

$

Not available

12

Cub Cadet KM-16030-2067

Valve, Float

$23.99

$

In Stock, only 4 left!

0

13

Cub Cadet KM-16031-2066

Float

$29.99

$

In Stock, only 2 left!

0

14

Cub Cadet KM-16035-2060

Jet, Air #1.7

$9.49

$

Usually ships in 2-5 days

0

15

Cub Cadet KM-16035-2061

Jet, Air #1.2

$

$

Not available

16

Cub Cadet KM-16041-2252

Shaft, Choke

$

$

Not available

17

Cub Cadet KM-16041-2253

Shart, Throttle

$

$

Not available

18

Cub Cadet KM-16073-7001

Insulator
(Superseded to KM-16073-7007)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet KM-16126-2218

Valve

$

$

Not available

20

Cub Cadet KM-21188-2011

Solenoid

$183.99

$

In Stock, only 2 left!

0

21

Cub Cadet KM-26011-2281

Wire, Lead

$6.49

$

Usually ships in 2-5 days

0

22

Cub Cadet KM-39076-2053

Limiter

$6.99

$

Usually ships in 2-5 days

0

23

Cub Cadet KM-43058-3716

Ring

$3.99

$

Usually ships in 2-5 days

0

24

Cub Cadet KM-49121-2222

Nozzle, Main

$32.99

$

Usually ships in 2-5 days

0

25

Cub Cadet KM-59076-7017

Manifold, Intake

$

$

Not available

26

Cub Cadet KM-92009-2015

Screw

$5.49

$

Usually ships in 2-5 days

0

27

Cub Cadet KM-92009-2024

Screw

$1.99

$

Usually ships in 2-5 days

0

28

Cub Cadet KM-92009-2081

Screw

$1.99

$

In Stock, only 1 left!

0

29

Cub Cadet KM-92009-2400

Screw

$1.99

$

Usually ships in 2-5 days

0

30

Cub Cadet KM-92022-2231

Washer

$1.99

$

In Stock, Qty 5

0

31

Cub Cadet KM-92022-2239

Washer

$1.49

$

Usually ships in 2-5 days

0

32

Cub Cadet KM-92027-2025

Collar

$3.99

$

Usually ships in 2-5 days

0

33

Cub Cadet KM-92033-2067

Ring, Snap

$5.49

$

In Stock, Qty 6

0

34

Cub Cadet KM-92043-2226

Pin

$7.49

$

In Stock, only 1 left!

0

35

Cub Cadet KM-92063-2358

Jet, Main

$10.99

$

Usually ships in 2-5 days

0

36

Cub Cadet KM-92064-2125

Jet, Pilot

$11.99

$

In Stock, only 3 left!

0

37

Cub Cadet KM-92081-2009

Spring

$3.49

$

In Stock, only 4 left!

0

38

Cub Cadet KM-92093-2002

Seal

$1.99

$

In Stock, Qty 6

0

39

Cub Cadet KM-92145-2061

Spring

$2.99

$

In Stock, only 2 left!

0

40

Cub Cadet KM-92170-2023

Clamp

$1.99

$

Usually ships in 2-5 days

0

41

Cub Cadet KM-92191-7008

Tube

$

$

Not available

42

Cub Cadet KM-130G0635

Bolt, Flange
(Superseded to KM-130BA0635)

$1.49

$

In Stock, Qty 6

0

43

Cub Cadet KM-172G0685

Bolt, Stud

$2.99

$

Usually ships in 2-5 days

0

44

Cub Cadet KM-214B0510

Screw, Pan

$

$

Not available

45

Cub Cadet KM-482L4000

Circlip, Type E

$

$

Not available
