H 1748 (55AE3D4S150) - Cub Cadet Walk-Behind Mower (2003) FH500V-AS14 Control Equipment Parts Diagram

Walk-Behind Mower

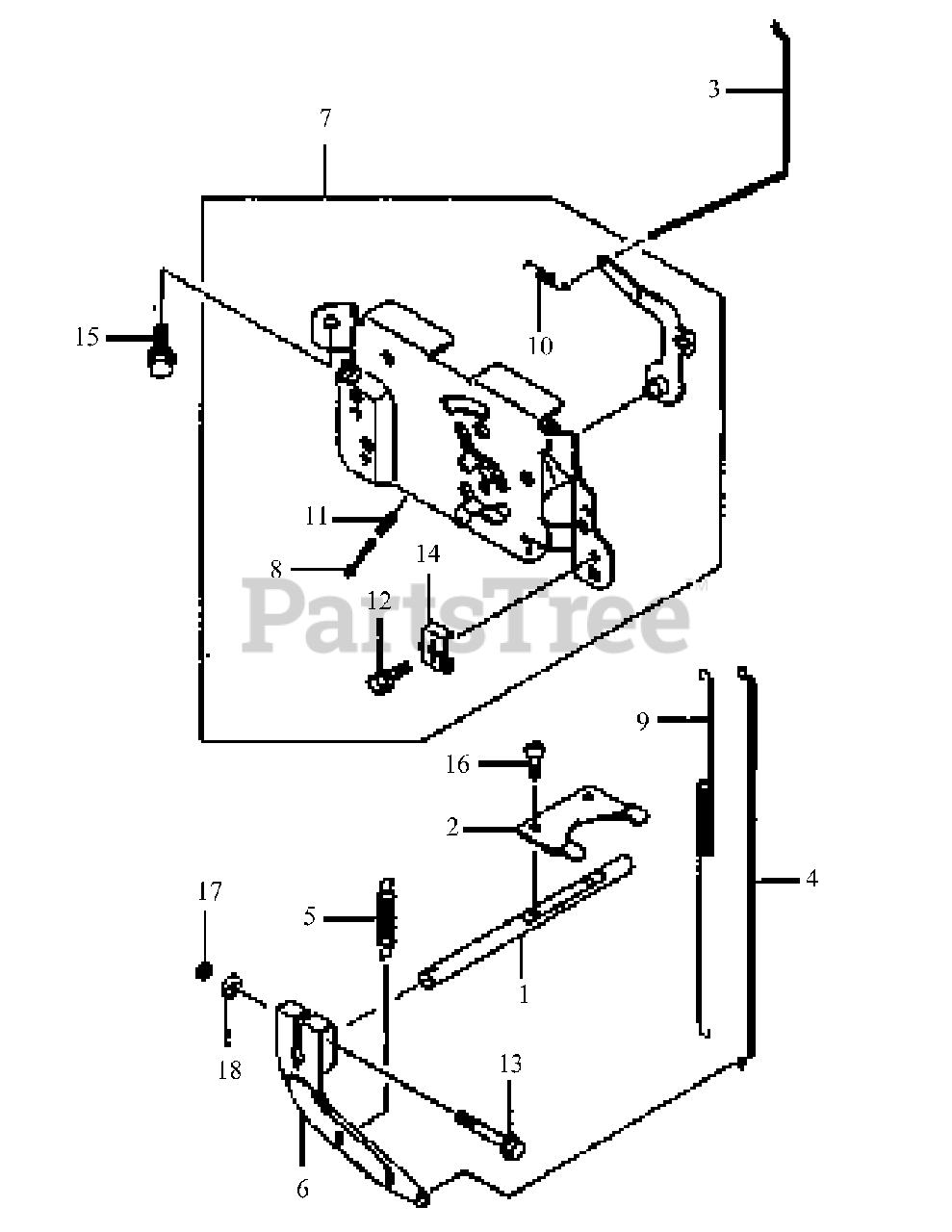

FH500V-AS14 Control Equipment Parts Diagram

  • Title

1

Cub Cadet KM-13107-7006

Shaft
(Superseded to KM-13107-0750)

$12.99

$

In Stock, Qty 5

0

2

Cub Cadet KM-13271-7032

Plate

$3.99

$

In Stock, Qty 10

0

3

Cub Cadet KM-16169-7010

Link, Choke

$2.49

$

In Stock, only 2 left!

0

4

Cub Cadet KM-16171-7001

Link

$4.49

$

In Stock, Qty 5

0

5

Cub Cadet KM-39129-7003

Spring, Governor

$4.99

$

In Stock, Qty 5

0

6

Cub Cadet KM-49103-7002

Arm, Governor
(Superseded to KM-49103-7004)

$7.99

$

In Stock, only 2 left!

0

7

Cub Cadet KM-49113-7056

Panel, Control

$26.99

$

In Stock, only 1 left!

0

8

Cub Cadet KM-92009-7002

Screw 4x30

$0.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KM-92145-7003

Spring

$2.99

$

In Stock, Qty 5

0

10

Cub Cadet KM-92145-7032

Spring
(Superseded to KM-92145-2180)

$0.99

$

In Stock, Qty 20+

0

11

Cub Cadet KM-92145-7005

Spring

$0.99

$

In Stock, Qty 6

0

12

Cub Cadet KM-92150-2182

Bolt 5x18

$0.99

$

In Stock, Qty 16

0

13

Cub Cadet KM-92151-7006

Bolt 6x30

$

$

Not available

14

Cub Cadet KM-92170-7001

Clamp

$2.99

$

In Stock, Qty 15

0

15

Cub Cadet KM-130BA0612

Bolt, Flange

$1.99

$

In Stock, Qty 20+

0

16

Cub Cadet KM-214AA0408

Screw, Pan

$3.99

$

In Stock, only 2 left!

0

17

Cub Cadet KM-311AA0600

Nut, Hex

$0.99

$

In Stock, Qty 20+

0

18

Cub Cadet KM-411B0600

Washer, Plain

$4.49

$

In Stock, only 1 left!

0
