H 1748 (55AE3D4S750) - Cub Cadet Walk-Behind Mower FH500V-CS14 Starter Parts Diagram

Walk-Behind Mower

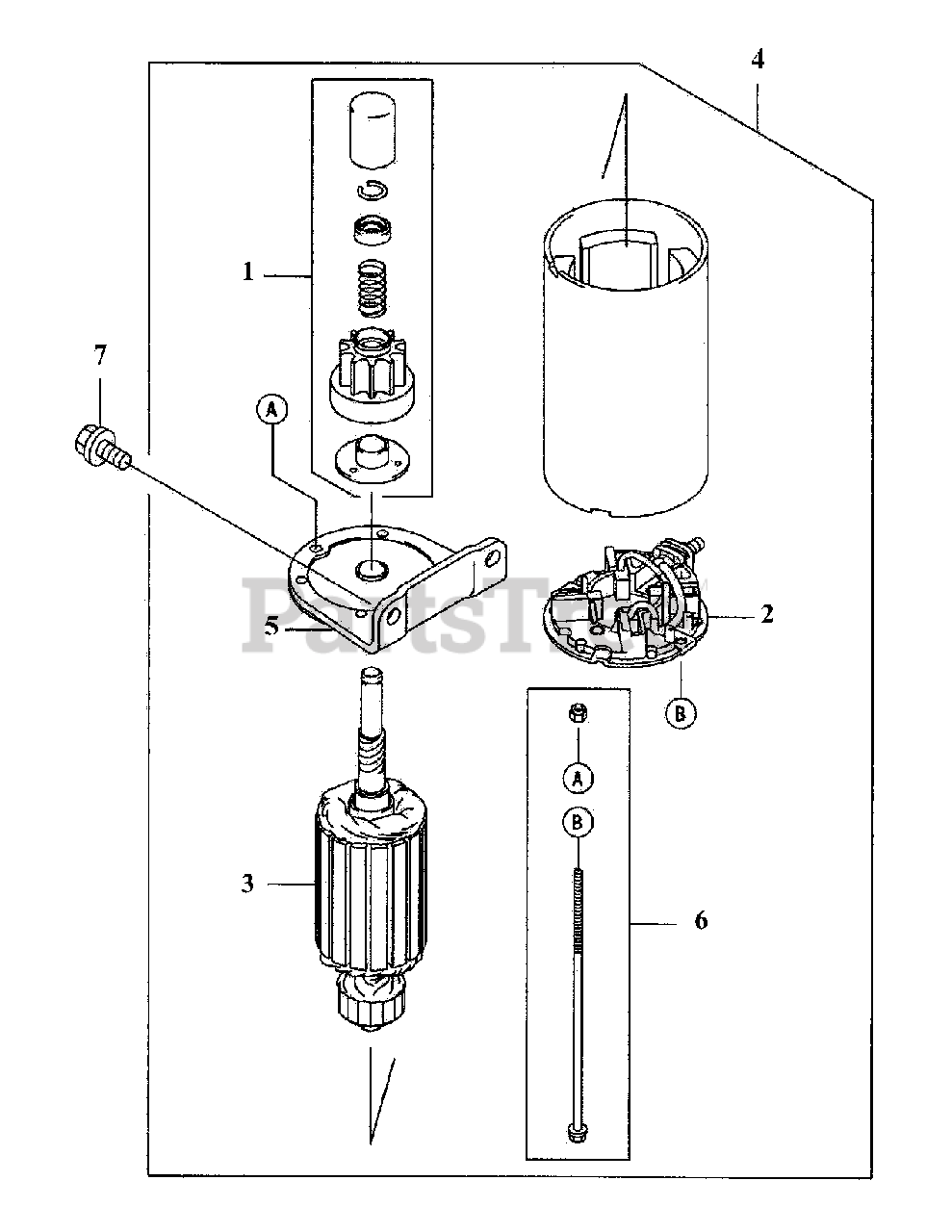

FH500V-CS14 Starter Parts Diagram

  • Title

1

Cub Cadet KM-13101-7001

Gear Assembly
(Superseded to KM-13101-7010)

$118.99

$

In Stock, only 1 left!

0

2

Cub Cadet KM-99999-7080

Brush

$258.99

$

In Stock, Qty 6

0

3

Cub Cadet KM-21080-7001

Armature

$

$

Not available

4

Cub Cadet KM-99999-7080

Starter, Electric

$258.99

$

In Stock, Qty 6

0

5

Cub Cadet KM-39184-7004

Bracket, Assembly
(Superseded to KM-99999-7080)

$258.99

$

In Stock, Qty 6

0

6

Cub Cadet KM-92151-7013

Bolt

$

$

Not available

7

Cub Cadet KM-130BA0816

Bolt, Flanged

$1.99

$

In Stock, Qty 5

0
