H 1748 (55AE3D4S750) - Cub Cadet Walk-Behind Mower Spindle Assembly Parts Diagram

Walk-Behind Mower

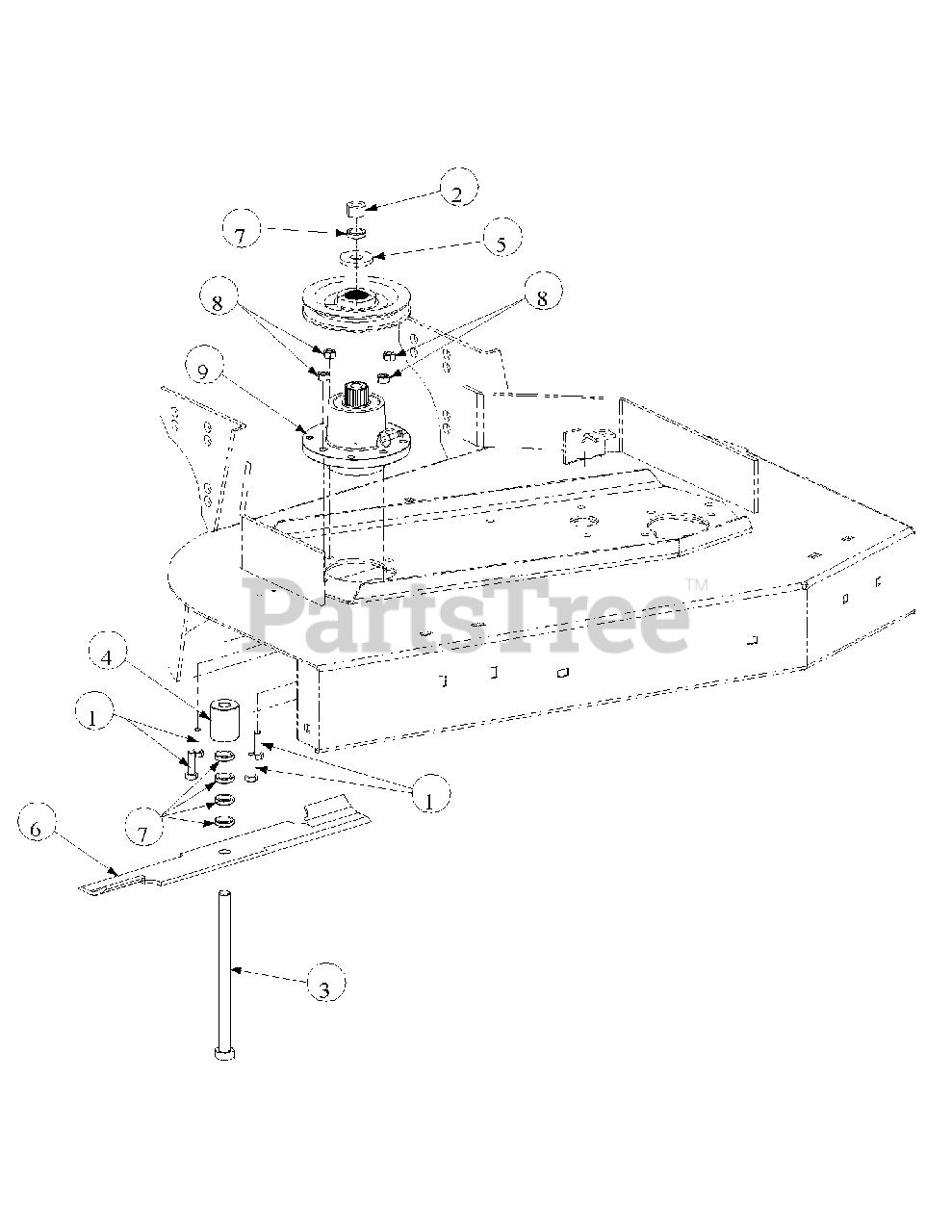

Spindle Assembly Parts Diagram

  • Title
1

Cub Cadet 00011444

Hex Cap Screw, 3/8-16 x 1-1/4

$4.49

$

In Stock, Qty 9

0

2

Cub Cadet 00011807

Hex Nut, 5/8-11

$

$

Not available

3

Cub Cadet 01007591P

Hex Cap Screw, 5/8-11 x 9

$

$

Not available

4

Cub Cadet 01007577P

Blade Spacer, .630 x 1.500 x 1.850

$28.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 01007595P

Flat Washer, .656 ID x 1.313 OD

$17.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 00021871

16 1/2" Rotary Blade

$

$

Not available

7

Cub Cadet 00021924

Blade Spacer, 5/8 ID, 1/4 Thick

$

$

Not available

8

Cub Cadet 00034224

Lock Nut, 3/8-16

$

$

Not available

9

Cub Cadet 01007491P

Spindle Assembly

$352.99

$

Usually ships in 3-6 days

0

Cub Cadet 01007642

Grease Fitting, 1/4-28 x 1.609
(Superseded to 737-04352)

Note: (not shown)

$15.99

$

Usually ships in 3-6 days

0
